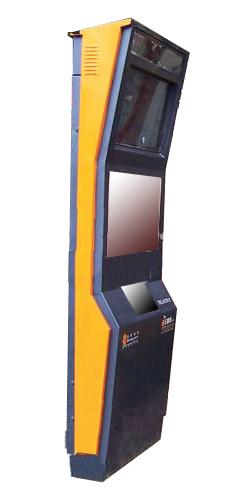

HD7 Outdoor dual screen large screen digital signage with touchscreen
HD7 Outdoor dual screen large screen digital signage with touchscreen
Specifications
Place of Origin :
Shenzhen, CN
Brand Name :
ZKTEK
Model Number :
HD7AE
Certification :
CE, FCC, RoHS
Price :
FOB Shenzhen basis
Packaging Details :
Bubble foam, carton, plywood case
Delivery Time :
30 Calendar days
Payment Terms :
T/T in advance
Supply Ability :
1000 units per month
MOQ :
1 unit
Description

HD7 is an outdoor dual screen large screen digital signage with touchscreen for advertisement.

OEM/ODM is also welcome.

Applications:
  • On car&vehicle digital signage
  • Outdoor ads digital signage
  • Bank digital signage
  • Exchanges market digital signage
  • Medicine&shop digital signage
  • Building digital signage
  • Super mall digital signage
  • Airport digital signage
  • Metro&station digital signage
  • Exhibition digital signage
  • Community digital signage
  • All-in-1 digital signage
  • Mobile recharge digital signage
  • Cellphone recharge digital signage
  • Outdoor digital signage
  • Wallmount digital signage
  • Onwall digital signage
  • Freestanding digital signage
  • Standalone digital signage
  • Coupon digital signage
FEATURES
  • Sleek design
  • Study structure with industrial host computer, touchscreen monitor
  • Waterproof infrared touchscreen monitor optional
Hardware Configurations&Specifications
Host:

Motherboard: GM45 Mini ITX industrial host
CPU: Intel Core 2 Duo T7200
RAM: 2 GB DDRII(max); Hard Disk: HDD 60G SSD
Display:VGA/DVI/LVDS
6USB2.0, 2 COM, and 2 GbE
1x Type II CompactFlash, 8GPIO
6 SATAII, Line-in,Lineout,Mic-in,PCIE-16X,Mini-PCIE
Software RAID 0, 1, 5, 10 (optional)
24/7 sustainable

Display:

Size: 19" TFT LCD
Resolution: 1280 x 1024
Brightness: 450 cd/m
Viewing Angle: 178/178

Touch Screen:Optical infrared or SAW touch screen
Calibration: Once-Only, Four Points With no Drift
Touch material: Finger, Gloved Hand or Any Other Pointer
Activation force: No Pressure Required for infrared touch
Response Time: 8ms
2nd displaySize: 32" TFT LCD
Resolution: 1920 x 1080
Brightness: 1000 cd/m
Viewing Angle: 178/178
Lightbox(middle):Led light box
Camera:CMOS
300,000 pixel with wide angel lens;Dynamic resolution:640×480
Support Insert Value upto 1.3m pixel;
With adjustable rubber base and quick snap button
Builtin microphone; smart face detection
Interface: USB 2.0
Audio:Bi-channel amplified output;
Multimedia stereo speaker
Enclosure:1.5mm all steel anti-graffiti enclosure
Add-ons

Lightbox,Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt

Software Specifications
Operating System:Windows XP, 7, Mac O/S
Functionalities:

Digital signage
Advertisement
Information
Service


Accessories
Included:AC Power Cord
LAN cable
User Manual
Drivers CD
Optional:External Stereo Speakers
External PC

Physical Characteristics
Weight:310 Kg
Size:
Color:Red&Black, Sliver, Yellow, Beige or other color
Environmental:0-60 Degrees (c)
0-90% Humidity
Power Consumption 500 Watts
