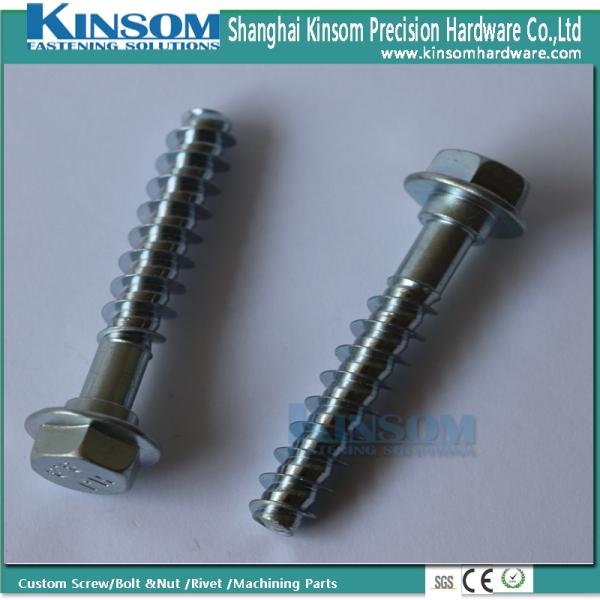

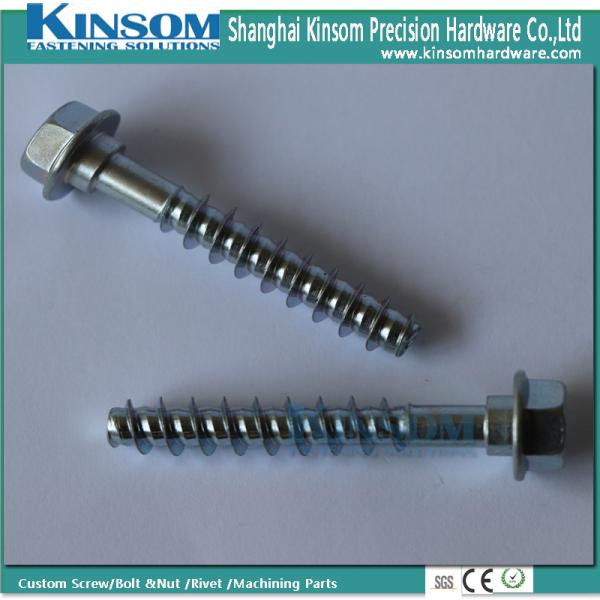

Hex flange self tapping step special bolts cold formed fasteners
Hex flange self tapping step special bolts cold formed fasteners
Hex flange self tapping step special bolts cold formed fasteners
Hex flange self tapping step special bolts cold formed fasteners
Hex flange self tapping step special bolts cold formed fasteners
Hex flange self tapping step special bolts cold formed fasteners
Hex flange self tapping step special bolts cold formed fasteners
Hex flange self tapping step special bolts cold formed fasteners
Specifications
Place of Origin :
Shanghai China
Brand Name :
OEM ODM
MOQ :
10000
Price :
Negotiation FOBShanghai CIF
Packaging Details :
Carton Box Pallet Packaging
Delivery Time :
15-45days
Payment Terms :
T/T
Supply Ability :
100000pcs/week
Model Number :
hex flange bolt
Material :
carbon steel
Finish :
zinc coating
Size :
M6-M30
Tolerance :
±0.05~0.1
Certification :
Factory ISO9000 and IATF16949
Description

Tag:Self tapping ;hex flange bolt ;

  • Hex flange head with carbon steel AISI1022
  • Thermo chemical treatment: cemented seasoned and stress relief
  • Non standard step bolts knurling screw
  • Cold forging process for manufacturing
  • Case hardness: 600-700HV
  • Core hardness: 300-425HV
  • Size : 3/8"*45
  • Thread type: BT type
  • Finish: blue white zinc coating 5um min
  • Marked: KS or by your needs
  • Thickness of heat treatment: 0.15-0.28MM
  • SST: 48hrs min per ASTM B117 0% red rust
  • Industry: building construction and others
  • Size and Material can be customized by your specific needs.

Multiple choice - material,size

Multiple choice -finish,heat treatment

Multiple choice -process way

Multiple choice of your full service supplier of fastening solution

We update news of Fasteners,Follow us: Hex flange self tapping step special bolts cold formed fasteners Hex flange self tapping step special bolts cold formed fasteners Hex flange self tapping step special bolts cold formed fasteners Hex flange self tapping step special bolts cold formed fasteners

All the following details can be customized by your specific need.

OEM service is welcomed.
Product Name Hex flange bolt
Material Stainless steel 304 `316 ,carton steel 45# 22A 10B21,alloy steel,aluminum5052 6063F22,brass ,Titanium/Ti Alloy And so on
Hardness 4.8-12.9 grade
Type of Shank Full thread/ parital thread
Drivers slotted,six-lobe,pozi driver,square,triangle,8 point,phillips
Type of Head flat,oval,truss,PF.round ,button,pan(JIS,ANSI),fillister,square
Surface Treatment Zinc,nickel,gold brass,black/black oxide etc
Shank Diameter M1.7-M30 customized by your need
Overall Length 6-120MM
Salt Spray Test 24hr-1000hr
Head Diameter
Application The product is used for fixing thing in one place,it is also apply to material transmission, large drill bit.
Package Description 25kg/carton;Can Pallet.Or according to customers' requests.

Carton box +pallet packaging to protect your goods in process of shipping

Hex flange self tapping step special bolts cold formed fasteners

Hex flange self tapping step special bolts cold formed fasteners

Hex flange self tapping step special bolts cold formed fasteners
