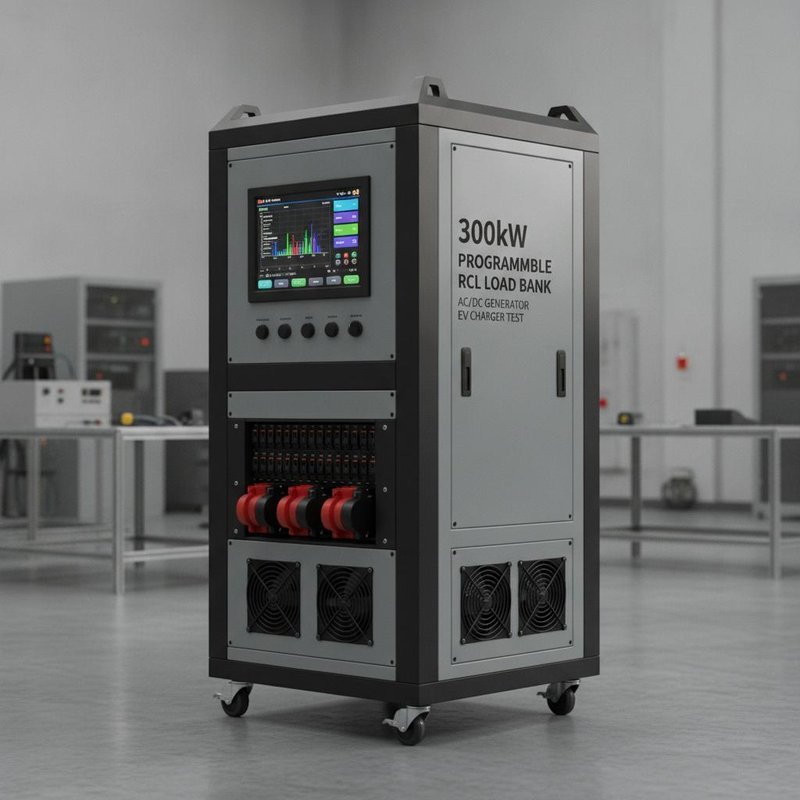

300kW Programmable RCL Resistive Inductive Capacitive Load Bank with Touch Screen AC DC Generator EV Charger Test
300kW Programmable RCL Resistive Inductive Capacitive Load Bank with Touch Screen AC DC Generator EV Charger Test
Specifications
Brand Name :
Githai
Packaging Details :
Heavy-duty export-grade plywood crate with reinforced steel frame corners, vacuum-sealed moisture barrier, shock-absorbing foam inserts, and forklift-compatible base pallet
Data Logging :
Built-in data recording with USB export
Power Factor :
0.7-1.0 continuously adjustable
MOQ :
1 Set
Load Type :
RCL (Resistive + Capacitive + Inductive)
Step Resolution :
1kW minimum step
Remote Control :
RS485 / Modbus RTU / Ethernet (optional)
Cooling System :
Forced air cooling, 18 high-speed DC fans
Continuous Operation :
24/7 sustained full-load
Supply Ability :
30 Sets per Month
Multi-Channel :
Up to 50 independent load channels configurable
Place of Origin :
Guangdong, China
Payment Terms :
T/T, L/C at sight
Rated Power :
300kW
Price :
USD 12,000 - 22,000 / Set
Display Parameters :
V, A, kW, kVA, PF, Frequency, Temperature per phase
Net Weight :
Approx. 550 kg
AC Rated Voltage :
AC 400V / 690V (3 Phase 4 Wire)
Dimensions :
1200 x 1000 x 2000 mm (L x W x H)
Protection Class :
IP20 (indoor)
Safety Protections :
Overload, short circuit, overheat, phase loss, emergency stop
Certification :
ISO 9001:2015, CE, IEC compliant
DC Rated Voltage :
DC 500V / 1000V
Control Interface :
7-inch TFT touch screen with push-button backup
Applications :
Generator factory acceptance test, EV charger validation, UPS commissioning, battery discharge, data center load test
Resistance Accuracy :
±3% (sheet resistor)
Delivery Time :
20-30 working days
Frequency :
50Hz / 60Hz
Model Number :
JH-RCL-300KWA-C-TS
Description

300kW Programmable RCL Resistive Inductive Capacitive Load Bank

A high-capacity intelligent testing platform featuring a 7-inch touch screen, RCL (Resistive + Capacitive + Inductive) full load configuration, AC/DC dual-mode operation, and remote monitoring via RS485/Modbus. Engineered for generator factory acceptance testing, EV charger validation, UPS system commissioning, and battery discharge analysis. ISO 9001 and CE certified with 24/7 continuous duty rating.

⚡ Full RCL Load Matrix

Integrates resistive (R), capacitive (C), and inductive (L) load modules for the most comprehensive power testing. Resistive modules simulate real-power loads with PF=1 accuracy. Capacitive modules provide leading power factor simulation. Inductive modules simulate motor and transformer reactive loads. All three modules are independently adjustable, allowing precise recreation of complex real-world electrical load profiles.
