High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
High Speed CAT6 Support VPN 4G WiFi Wireless Router
Specifications
Wan :
1*10/100Mbps
Transfer Rate :
10/100Mbps
Antenna :
5dBi External Antenna
WiFi Speed :
2.4G 300Mbps; 5.8g: 900Mbps
Ports :
≤4
MOQ :
1 Piece
Dual SIM :
Support
4G Speed :
Downlink: 300Mbps, Uplink: 50Mbps
Specification :
2.4G 300Mbps LTE Router
HS Code :
8517623690
LAN :
2*10/100Mbps
Firewall :
Firewall
3G Band :
B1/B5/B8@WCDMA;
End Users :
32+
Frequency :
2.4G+5.8g
4G Band :
B1/B3/B5/B7/B8/B20/B28@FDD; B38/B40/B41@Tdd,
WiFi :
11AC
Application :
SOHO
VPN :
L2tp Pptp and Openvpn
SIM :
Usim+Esim
Transport Package :
Gift Box
4G :
LTE-FDD and LTE Tdd
Battery :
2600mAh or 5200mAh
Production Capacity :
150000PCS/Month
Model NO. :
KS-LTE517-cat6
Origin :
China
Trademark :
OEM/ODM
Port Structure :
Modular
Performance :
Line-Rate Router
Architecture :
Single Bus Symmetric Multi CPU
Network :
LTE
Price :
US $10-80 / Piece
Description
Cat6 4G WiFi Wireless Router With Sim Card Slot, battery optional

Product Description

KS-LTE517-Cat6 is an high speed, high performance, multiple functions LTE CPE in Cat6 standard. Comply with IEEE 802.11ac wireless standard, the wireless speed up to 1200Mbps in 2.4GHz and 5.8GHz. Support 4G FDD/TDD, WCDMA and GSM networking, plug and play, easy to have the high speed wireless network for 32+ end users. Support VPN, optional battery, it is best choice for ISP, home and some chain stores.

Main Features:

  1. Support 4G/WCDMA/GSM network, plug and play, easy to install;
  2. 2.4GHz+5.8GHz, the wireless speed up to 1200Mbps, 32+ end users can access into it;
  3. Support DC power, 2600mAh or 5200mAh battery optional, movable wireless router make network available everywhere;
  4. Support VPN, more functions for more application scenes;
  5. Optional to support dual SIM: eSIM+SIM
  6. Provide deeply firmware support, help customer to develop their own firmware;


Product Parameters

Hardware Spec:
Model KS-LTE517-Cat6
WiFi Standard IEEE 802.11b/g/n/ac
CPU MT7628+MT7613
Flash 8MB
Memory 64MB
Frequency 2.4G: 2400 - 2484MHz
5.8G: 5180~5825MHz
Data Rate 300Mbps @ 2.4GHz
900Mbps @ 5.8GHz
RF Power 2.4G≤20 dBm/chain
5.8G≤20 dBm/chain
Access Users 32+ Clients
Interface 1*10/100Mbps RJ45 port, WAN/LAN port
2*10/100Mbps RJ45 ports, LAN ports
1*SIM card slot for 3G/4G SIM card
1*Power button to switch on/off power
1*Reset button/WPS button
1*DC power injector, 12V/1A power adapter
LED Indicator Power
ETH
4G Signal strength (S1~S4)
Wi-Fi Antenna Build in 5dBi MIMO Antenna
4G Antenna Inner 4G antenna, 5dBi; Optional External detachable antenna
Power Consumption <12W
DC Power Supply Input 12V / 1A (DC);
Battery 2600mAh or 5200mAh(Optional)
MTBF ≥52000H@25ºC
Working temperature Working Temperature:-20ºC~45ºC
Storage temperature: -40ºC~70ºC
Humidity 5%~95%
Dimensions 178*125*33mm
Firmware Features
Operation mode WAN/4G (WAN only, 4G only, WAN fist, 4G backup)
APN Support auto APN and manual APN
Wireless Functions Support guest SSID, SSID hidden
Support firewall such as MAC filter, IP filter
Support scheduled Wi-Fi on/off
VPN Open VPN and VPN Client (L2TP PPTP)
Security Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP
IP Protocol IPv4
Device Management GUI web management
Support firmware back-up, restore, reset, upgrade
Packing List
 KS-LTE517*1
Power Adapter*1
LAN Cable×1(1 meter)
User Manual×1
4G Data Rate
4G protocol Cat6
3G/4G bands for Europe/Middle East B1/B3/B5/B7/B8/B20/B28@FDD;
B38/B40/B41@TDD,
2xCA: B1+B1/B3/B5/B8/B20/B28;
B3+B3/B5/B7/B8/B20/B28;
B7+B5/B7/B8/B20/B28;
B38+B38, B40+B40; B41+B41;
B1/B5/B8@WCDMA;
LTE-FDD Speed Downlink: 300Mbps, Uplink: 50Mbps
LTE-TDD Speed Downlink: 220Mbps, Uplink: 30Mbps
UMTS: HSDPA: Downlink: 21Mbps, HSUPA: Uplink: 5.76Mbps; WCDMA: max. 384kbps in downlink and uplink;

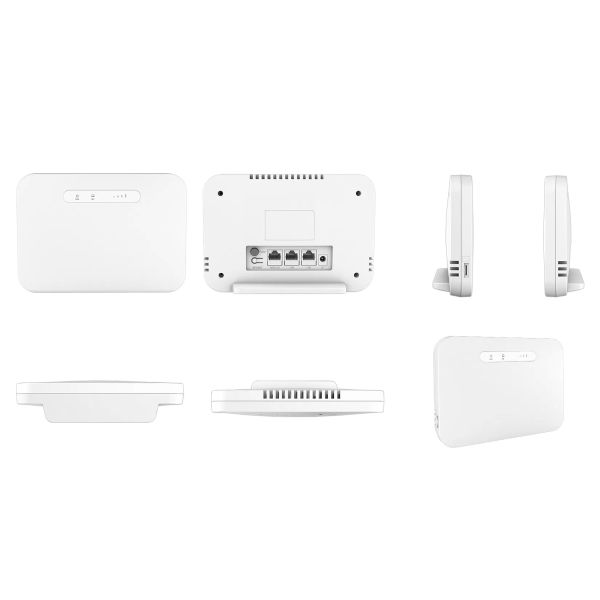

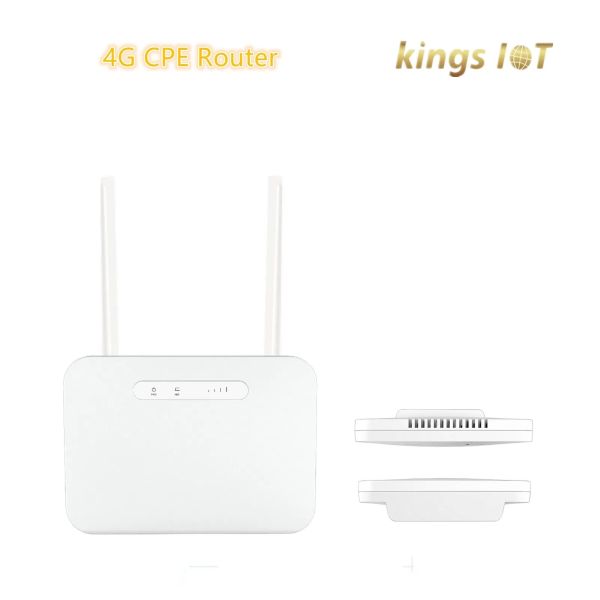

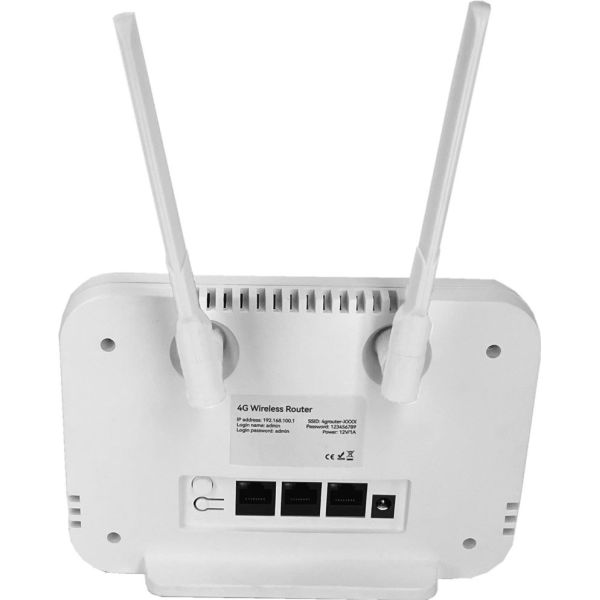

Detailed Photos
High Speed CAT6 Support VPN 4G WiFi Wireless RouterHigh Speed CAT6 Support VPN 4G WiFi Wireless RouterHigh Speed CAT6 Support VPN 4G WiFi Wireless Router

High Speed CAT6 Support VPN 4G WiFi Wireless RouterHigh Speed CAT6 Support VPN 4G WiFi Wireless RouterHigh Speed CAT6 Support VPN 4G WiFi Wireless RouterHigh Speed CAT6 Support VPN 4G WiFi Wireless Router
Packaging & Shipping

Carton box: 41*25*39cm;
20PCS/CTN
High Speed CAT6 Support VPN 4G WiFi Wireless Router
After Sales Service
Two years warranty
FAQ

Q1. 4G bands:
A: Can customize the bands if not support

Q2. OEM & ODM service
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package;
Content will be limited by MOQ;

ODM: we can provide PCBA, housing and firmware ODM service:
PCBA: 2~3 month to finish it;
Housing: 2 month after finish the PCBA;
Firmware: we can provide the open source driver for customer to develop their firmware;
We can provide DTS files if want;
And we can provide technical support in customer firmware development.

Q3. If support out of China production:
A. Yes, this is developed by our engineers, we can support SKD and CKD;
We can provide the SOP of assemble and finished product testing;
But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem;
We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.
