Specifications
Specification :
wifi6 ONU router
Model NO. :
KS-M6234M
VoIP :
Support
Name :
WiFi6 Wireless ONU Router
HS Code :
8517622910
Igmp :
Igmp V2/V3 Igmp Snooping/Proxy
MOQ :
1 Piece
Frequency :
2.4G+5g
LAN :
4*10/100/1000Mbps LAN Ports
Transport Package :
Gift Box
Production Capacity :
100, 000/Month
Origin :
China
Rj11 :
1*Rj11 Port
Condition :
New
Distance :
0~ 20km Max
Oam :
Tr-069, Tr-098, Tr-140
Management :
Web, Oam and Telnet
Xpon Speed :
Downstream: 2.488gbps for Gpon Mode and 1.244gbps
Price :
US $1-55 / Piece
Power Supply :
DC 12V/1.5A
Speed :
2.4G: 300Mbps, 5.8g 2400Mbps
Xpon Port :
1* Sc/Upc Port or 1 Sc/APC Port
USB :
1*USB
Wi-Fi Standard :
802.11ax, Wi-Fi6
Certification :
CE
Trademark :
OEM/ODM
Description
WiFi 11ax Wi-Fi6 2.4G 600Mbps 5.8G 2400Mbps ONU+Mesh provides comprehensive GPON and EPON network compatibility
Product Description

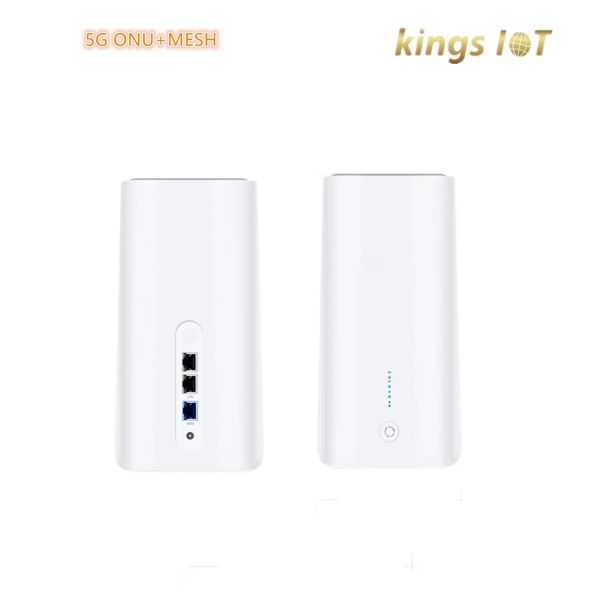

This is WIFI6 ONU, a GPON optical access device. Comply to 11ax Wi-Fi6 standard, dual band with 3000Mbps data rate.

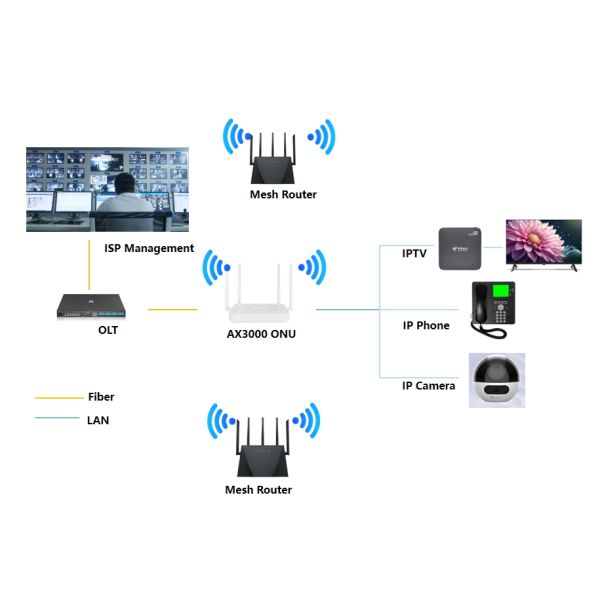

Integrated Gigabit GPON port in upstream, provides users high speed dual band Wi-Fi and gigabit Ethernet access in downstream, plus USB port and VOIP port, this WIFI6 ONU in small size, but provide all network with ultra-speed for end users.

Complies with ITU-T G.984.X and IEEE802.3ah, provides comprehensive GPON and EPON network compatibility
Downstream rates of up to 2.488Gbps for GPON mode, 1.244Gbps for EPON mode , and upstream rates up to 1.244Gbps
Fiber access and gigabit port provide incredibly fast transfer speeds
Supports802.11AX,Dual-band WIFI6 AX3000 (2 ×2 MIMO (2.4G&5G))
Supports OMCI (ONT Management Control Interface) and OAM remote management
Easy MESH function


1. WiFi: 11ax Wi-Fi6, 2.4G 600Mbps, 5.8G 2400Mbps,
2. Support Router/Mesh mode, setup wizard, easy mesh, support VPN, IPv6
3. 1*10/100/1000M Auto-Negotiation RJ45 WAN port, 3*10/100/1000M Auto-Negotiation RJ45 LAN ports
4. Mark: SKD shipment, LOGO customized

  1. Item
Description
Standards ITU-T G.984.x and IEEE802.3ah
Chipset 5VT, 2518+MTK MT7916+MT7976
Interface 1 SC/UPC Port or 1 SC/APC Port
4 10/100/1000Mbps RJ45 Ports
1 RJ11 Port
1 USB
WIFI (2.4G & 5.8G)
Data Rates & Wavelength Upstream:1.244Gbps, 1310nm
Downstream:2.488Gbps for GPON mode and 1.244Gbps for EPON mode, 1490nm
Distance 0~ 20Km Max
External Power Supply DC 12V/1.5A
Dimensions (L * W * H) 150mm×100mm×40mm
Weight (Full-Loaded) ≤0.5kg
Environmental Requirements Working temperature: 0°C~40°C
Storage temperature: -40°C~70°C
Relative humidity: 10%~90%, non-condensing
  1. ITEM
 Discription
Interface 4x 10/100/1000BASE-T RJ45
Auto negotiation
Auto MDI/MDIX
XPON Speed Downstream: 2.488Gbps for GPON mode and 1.244Gbps for EPON mode
Upstream: 1.244Gbps
Connector SC/UPC or SC/APC, pigtail,G.652 Single Mode Fiber
Power level Downstream:
- Wavelength: 1490nm
- Sensitivity: -27dBm
- Saturation: -9dBm
Upstream:
- Wavelength: 1310nm
- TX power: 0.5 ~ 5dBm
- RMS: 0.5nm
WIFI Standard IEEE 802.11a/n/ac/ax
Transmit power 2.4G 100mW,5G/200mW,
Antenna 2.4G antenna :5dBi
5.8G antenna :5dBi
VoIP Connector 1 * RJ11
Ringing 65V RMS ringing voltage
USB Max 1A for each port


Firmware Features:
  1. Item
 Description
XPON feature
 Compliant with ITU-T G.984.x and IEEE 802.3ah
FEC (Forward Error Correction) in both upstream and downstream
Dynamic bandwidth status report
802.1p mapper for upstream
QoS scheduling based on SP or WRR between GEM port and T-CONT
Downstream multicast GEM port and broadcast GEM port
Ethernet Feature Support Auto-speed and MDI/MDIX auto detection
Internal L2 switch
Advanced data processing function, such as VLAN label processing, flow classification and packet filtering.
Gateway Feature WAN support Router and Bridge mode
Router mode supports PPPoE/DHCP/ static IP
WAN support Internet, VoIP, IPTV, TR069
LAN supports DHCP and static IP
Support NAT and NAPT
Support UPnP
VoIP Feature Call waiting, Inconditional Call Forward,
Call Forward if Busy,Call Forward if no reply and Three-party calls.
G711A/G711U/G729/G722
SDP protocol (RFC 2327 and RFC 4566) T.30/T.38/G.711 fax mode
DTMF
WIFI feature Compatible with IEEE 802.11 b/g/n/ac/ax,
maximum support 3000Mbps
2x2 MIMO antenna
Single frequency 2.4GHz and 5GHz
WEP, WPA-PSK, WPA2-PSK and other encryption
OAM feature Standard OAM (the embedded operations channel) compliant with IEEE 802.3ah
Compliant with TR-069 standard
Compliant with TR-098, TR-140 terminal integrated management interface specification, configuration of all kinds of services, including Ethernet, VoIP, WLAN, etc
Alarm reporting, performance monitoring
Remote software upgrade through OAM
Management Managed by Web, OAM and Telnet,
Specified the management IP,
Reset to Factory default by Reset button or Web UI,
Real-time statistics, Optical Diagnostic
IGMP IGMP v2/v3
IGMP Snooping/Proxy
