10g Uplink+2.5g Poe Ports, Higher Speed It Support Active Poe Standard, Automatically Detect and Identify The Pd's Power Standards
10g Uplink+2.5g Poe Ports, Higher Speed It Support Active Poe Standard, Automatically Detect and Identify The Pd's Power Standards
Specifications
Origin :
China
Price :
US $1-100 / Piece
MOQ :
1 Piece
Model NO. :
KS-POE-G6F
Mac Address Table :
4K
Forwarding Rate :
33.48Mbps
SFP Port :
1* 10g SFP+
Storage and Forwarding :
Support
Bandwidth :
45gbps
Transmission Rate :
2500
Poe Standard :
IEEE 802.3af/at
Production Capacity :
50000/ Year
Power :
AC Input
Poe Ports :
4*10/100/1000/2500Mbps RJ45 Poe Ports
Ports :
6
HS Code :
8504402000
Standard :
IEEE 802.3/U/Ab/Bz/Z/Ae/X
Specification :
245* 190* 60mm
Trademark :
OEM/ODM
Poe Input :
65W
Transport Package :
Carton Box
Package Cache :
8mbit
Uplink Port :
1*10/100/1000/2500Mbps
Description
10G uplink+2.5G PoE ports, higher speed It support active PoE standard, automatically detect and identify the PD's power standard
Product Description


This is an 2.5G POE switch. There are 1*10G SFP+ fiber port, 1*2500Mbps RJ45 uplink ports and 4*2500Mbps PoE ports. The PoE ports comply with the IEEE 802.3af/at 48V PoE standard, up to 30W for each PoE port. The maximum PoE output power consumption of the whole machine is 65W. It support active PoE standard, automatically detect and identify the PD's power standards, then provide the PoE power by a simple network cables. Plug and play, meeting high-speed network + PoE power supply network environment, suitable for IP monitoring and wireless AP equipment, widely used in hotels, shopping malls, campuses, factories, dormitories, hospitals and other small and medium-sized enterprises to establish high speed networks.
Product Parameters

Product Features:

10G uplink+2.5G PoE ports, higher speed
  1. 4*10/100/1000/2500Mbps PoE ports, 1*10/100/1000/2500Mbps RJ45 uplink port, 1*10G SFP+ port;
  2. All ports support IEEE 802.3x full-duplex flow control and Backpresure half-duplex flow control;
  3. Supports automatic port rollover(Auto MDI/MDIX), 10/100/1000/2500M self-adaptive;

PoE Power Supply
  1. 4*10/100/1000/2500Mbps RJ45 ports support PoE+, meeting the PoE power supply needs of security, teleconferencing systems, wireless network coverage and other scenarios.
  2. Comply with IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 65W, the maximum PoE output power of PoE port is 30W;
  3. Automatically identify PoE devices for power supply without damaging non-PoE devices
l
Stable and reliable
  1. With the latest high-speed Ethernet chip, self-identifying and intelligent management, ultra-high backplane bandwidth design with extremely fast data processing capabilities, improved the data transmission performance;
  2. Seiko metal housing with electrostatic paint, double-flow heat dissipation, strong and durable
  3. Support Surge protection: Common mode 4KV; Differential mode 2KV(level B);ESD: Air 8KV, Contact 6KV(level B)

Simple to Operate
  1. Simply to operate, plug and play, intelligent management, lossless transmission and zero lag in security monitoring. The PoE power is no restricted by power lines and power socket, saving the labor and wiring costs.
  2. Users can easily understand the working status of device through the power indicator light and network port status light.


Hardware Spec
Standard IEEE802.3 (Ethernet)
IEEE802.3u (Fast Ethernet)
IEEE802.3ab (Gigabit Ethernet)
IEEE 802.3bz (5G Ethernet)
IEEE 802.3z (Gigabit Ethernet)
IEEE 802.3ae (10G Gigabit Ethernet)
IEEE802.3x (Flow Control)
Interface 4*10/100/1000/2500Mbps RJ45 PoE ports
1*10/100/1000/2500Mbps RJ45 uplink port
1* 10G SFP+ uplink port
1 *AC input, 100~240V 50/60Hz
PoE Standard IEEE802.3af (15.4W)
IEEE802.3at (30W)
POE port output voltage: DC 44-57V
POE power supply core: 1/2+; 3/6-
PoE Input 65W, 52V1.25A
Power Main board power: ≤ 5W
POE power: ≤ 60W
Network Media 10Base-T: Cat 3, 4, 5 Class or above UTP/STP (≤ 100m)
100Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
1000Base-TX: Cat 5 Class or above UTP/STP (≤ 100m)
Optical Medium Multimode optical fiber: 50/125, 62.5/125, 100/140um
Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um
Bandwidth 45Gbps
Packet Forwarding Rate 33.48Mpps
Package Cache 8MBit
MAC address table 4K
Storage and forwarding Support
Working Environment Working Temperature: -10ºC ~ 50ºC
Storage Temperature: -40ºC ~ 70ºC
Working Humidity: 10% ~ 90% RH No-condensing
Storage Humidity: 5% ~ 95% RH No-condensing
Size 200* 118* 44mm
Packing information Package size: 245* 190* 60mm
Package Dimensions: 245*190*60mm
Product N.W: 0.63KG
Product G.W: 0.93KG
Carton Dimensions: 520*320*400mm
Packing Quantity: 20 set
Packing Weight: 19.6KG
Packing list Switch, 1 PCS
Power cord, 1PCS
User manual, 1 PCS
LED Indicator Status
PWR(Power) On: Powered on
Off: Powered off
1-5 Port Green Light On: 2.5G Link normal
Off: Link blocked
Flashing: Data transmitting
1-5 port Yellow Light On: 10/100/1000M Link normal
Off: Link blocked
Flashing: Data transmitting
6 Port Green Light/ Blue Light Blue on:10G link
Green on: 1000/2500M link
Off: Link blocked
Flashing: Data transmitting
1-4 PoE Light On:PoE power supply
Off:PoE not powered
PoE Max Power Light Off: indicates PoE power usage is less than 90%
Flashing: indicates PoE power usage of 90% ≤ P ≤ 95%
On: indicates that PoE power is used at 95%<P<100%
PWR(Power) On: Powered on
Off: Powered off
1-5 Port Green Light On: 2.5G Link normal
Off: Link blocked
Flashing: Data transmitting

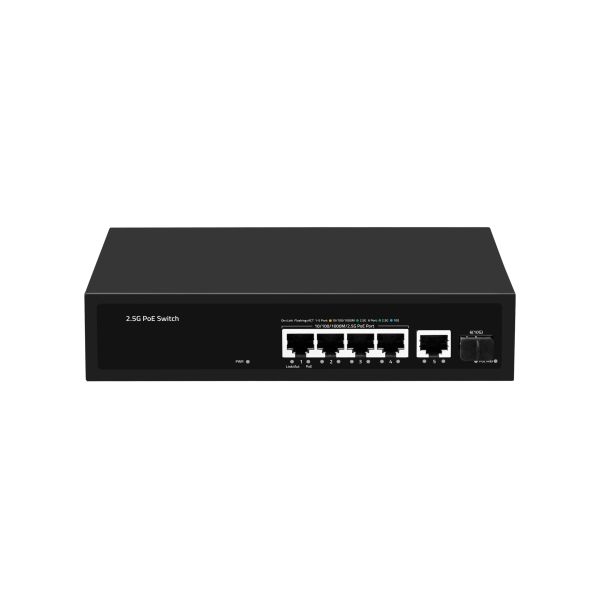

Detailed Photos

10g Uplink+2.5g Poe Ports, Higher Speed It Support Active Poe Standard, Automatically Detect and Identify The Pd's Power Standards10g Uplink+2.5g Poe Ports, Higher Speed It Support Active Poe Standard, Automatically Detect and Identify The Pd's Power Standards


Applications and Network Topology
Monitoring and IP Phone
10g Uplink+2.5g Poe Ports, Higher Speed It Support Active Poe Standard, Automatically Detect and Identify The Pd's Power Standards10g Uplink+2.5g Poe Ports, Higher Speed It Support Active Poe Standard, Automatically Detect and Identify The Pd's Power Standards
10g Uplink+2.5g Poe Ports, Higher Speed It Support Active Poe Standard, Automatically Detect and Identify The Pd's Power Standards
