Specifications
Ports :
≤4
Trademark :
OEM/ODM
GPS :
Support
Specification :
IoT Gateway support Bluetooth, RS232, RS485
Origin :
China
Firewall :
Firewall
Network :
LTE and Wireless
Performance :
Line-Rate Router
Transport Package :
Gift Box+Carton Box
Working Temperature :
-40~70 Degree
Model NO. :
KS-IoT-F700Q
Transfer Rate :
10/100Mbps
Architecture :
Single Bus Symmetric Multi CPU
Antenna :
External WiFi/4G/GPS/Bluetooth Antenna
Bluetooth :
Support Bluetooth 5.0
Price :
US $1-100 / Piece
Can :
with Can Module
Port Structure :
Modular
WiFi :
11n 2.4G 300Mbps
OEM&ODM :
Support
HS Code :
8517623690
Application :
Enterprise, SOHO
4G :
LTE FDD and LTE Tdd
RS485 :
Support
Power :
9~36V
Poe :
48V Active Poe
RS232 :
Support
MOQ :
1 Piece
Rtc Battery :
Support
Openwrt Firmware :
Support
Production Capacity :
30000PCS/Month
Housing :
Metal Housing
Description
Industrial 4G LTE Wi-Fi Router support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, Optional
Product Description

KS-IOT-F700Q is an 11n 2.4GHz 300Mbps industrial IoT gateway, 2*10/100Mbps RJ45 ports, 9~36V wide voltage, 48V PoE input, Support RS232 and RS485 interface; What's more, there are multiple extend ports available for IoT/Vehicle/Monitoring area.

  1. Support Bluetooth 5.0, with external Bluetooth antenna
  2. Support 4G module, can work as LTE CPE
  3. With temperature sensor to test and control the working temperature
  4. Support CAN module, realization of no-board electronic control network system in car
  5. Support RTC, provide correct system time even power off
  6. Support GPS with external GPS antenna;


Support OpenWRT firmware, can provide strong technical support in customer firmware development.

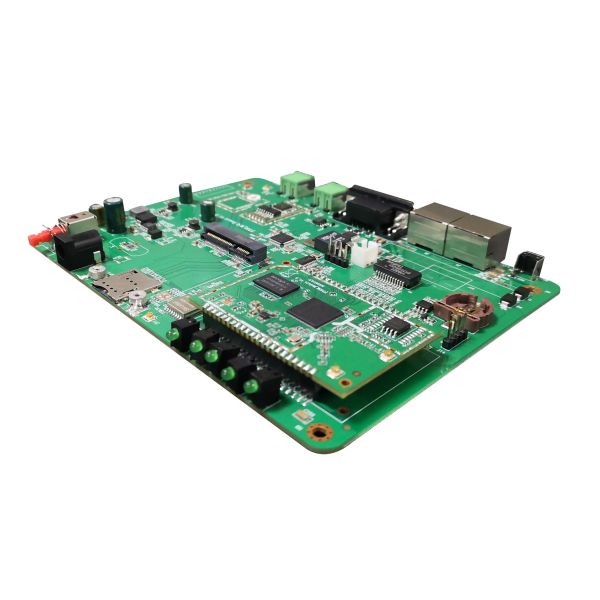

Detailed Photos

Industrial 4G LTE Wi-Fi Router Support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, OptionalIndustrial 4G LTE Wi-Fi Router Support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, OptionalIndustrial 4G LTE Wi-Fi Router Support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, OptionalIndustrial 4G LTE Wi-Fi Router Support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, OptionalIndustrial 4G LTE Wi-Fi Router Support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, OptionalIndustrial 4G LTE Wi-Fi Router Support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, OptionalIndustrial 4G LTE Wi-Fi Router Support Bt, Can, GPS, RS485 and RS232, Cat4 or Cat5, 150Mbps or 300Mbps, Optional

Product Parameters
Product Model KS-IoT-F700Q
CPU QCA9531
Flash SPI NOR 16M
DDR 128M
2.4G Frequency 2.4GHz - 2.484GHz
2.4G WIFI Protocol 802.11b / g / n
SSID Hide Support
Data Rate 300Mbps
Access User 30+
2.4G RF Power 802.11b 11M 17±2dBm 1M 19±2dBm
802.11g 54M 16±2dBm 6M 18±2dBm
802.11n HT20 MCS7 15±2dBm MCS0 17±2dBm
802.11n HT40 MCS7 14±2dBm MCS0 16±2dBm
2.4G Receive Sensitivity 802.11b 11M -82dBm 1M -94dBm
802.11g 54M -70dBm 6M -88dBm
802.11n HT20 MCS7 -68dBm MCS0 -86dBm
802.11n HT40 MCS7 -66dBm MCS0 -84dBm
2.4G EVM 802.11b_11M: ≤-10dB ;802.11g_54M: ≤-25 dB ;802.11n_MCS7: ≤-28 dB
PPM ±20ppm
LAN 1 * 10/100 self-adaption LAN port
WAN 1 * 10/100 self-adaption WAN port
Power DC: 9~36V wide voltage
PoE: 48V IEEE 802.3af PoE power, optional
Switch 1* Power switch
SIM Card Slot 1*SIM card slot for 4G network
Reset Button 1*Reset button
GPS Optional
Bluetooth Bluetooth 5.0, optional
RTC With coin cell battery, provide correct system time even power off
Antenna Connector 4G antenna X2, Ipex connector;
Bluetooth antenna X1, Ipex connector;
GPS antenna X1, Ipex connector;
WiFi antenna X2, Ipex connector
Extension Interface RS232 (DB9)
RS485 (2P 5.08 interface)
CAN (2P 5.08 interface) optional
LED Indicator SYS LED; WAN LED x1; LAN LED x1; WiFi LED; 4G LED
Max Power Consumption < 10W
Product Size 120*157*16mm
Working Environment Working temperature: -20°C to 55°C;
Extreme working temperature: -40°C to 55°C;
Storage temperature: -40°C to 70°C;
Humidity: 5%~95% (No condensation)

4G Data Rate:

4G protocol Cat6
LTE-FDD Band B1/B3/B5/B7/B8/20/B28/B32
LTE-TDD Band B38/B40/B41/B42/B43
WCDMA B1/B3/B5/B8
LTE-FDD Speed Downlink: 300Mbps, Uplink: 50Mbps
LTE-TDD Speed Downlink: 226Mbps, Uplink: 28Mbps
DC-HSDPA/HSUPA Downlink: 42Mbps, Uplink: 5.76Mbps
GSM Downlink: 384kbps, Uplink: 384kbps
After Sales Service

2 years warranty


FAQ

1. Firmware
We developped an Openwrt firmware, which support all driver of 4G, Bluetooth, CAN, GPS....
We can share this Openwrt firmware to customer, customer can develop their applications based on our openWRT firmware;

2. Hardware change:
We can change the hardware based on customer request.
Provide new samples in two month.
