China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPE
Specifications
GPS :
Support
Poe :
48V Active Poe
Production Capacity :
30000PCS/Month
Network :
LTE and Wireless
Power :
9~36V
Ports :
≤4
ODM :
Support
Bluetooth :
Support Bluetooth 5.0
Transfer Rate :
10/100Mbps
Port Structure :
Modular
Origin :
China
Application :
Enterprise, SOHO
WiFi :
11n 2.4G 300Mbps
Specification :
IoT Gateway support Bluetooth, RS232, RS485
Firmware :
Openwrt Firmware
Rtc Battery :
Support
HS Code :
8517623690
4G :
LTE FDD and LTE Tdd
MOQ :
1 Piece
Firewall :
Firewall
Trademark :
OEM/ODM
Can :
with Can Module
Working Temperature :
-40~70 Degree
Price :
US $1-100 / Piece
RS485 :
Support
RS232 :
Support
Architecture :
Single Bus Symmetric Multi CPU
Antenna :
SMA Connector or 5dBi Antenna
Warranty :
2 Years
Performance :
Line-Rate Router
Transport Package :
Gift Box+Carton Box
Description
Industrial vehicle 4G Router and Iot router, RS485 RS232 Wireless Router, 4G Industrial Router
Product Description

KS-IOT-F700Q is an 11n 2.4GHz 300Mbps IoT gateway, 2*10/100Mbps RJ45 ports, 9~36V wide voltage, 48V PoE input, Support RS232 and RS485 interface; What's more, there are multiple extend ports available for IoT/Vehicle/Monitoring area.
  1. Support Bluetooth 5.0, with external Bluetooth antenna
  2. Support 4G module, can work as LTE CPE
  3. With temperature sensor to test and control the working temperature
  4. Support CAN module, realization of no-board electronic control network system in car
  5. Support RTC, provide correct system time even power off;
  6. Support GPS with external GPS antenna;

Support OpenWRT firmware, can provide strong technical support in customer firmware development.
Product Parameters
Product Model KS-IoT-F700Q
CPU QCA9531
Flash SPI NOR 16M
DDR 128M
2.4G Frequency 2.4GHz - 2.484GHz
2.4G WIFI Protocol 802.11b / g / n
SSID Hide Support
Data Rate 300Mbps
Access User 30+
2.4G RF Power 802.11b 11M 17±2dBm 1M 19±2dBm
802.11g 54M 16±2dBm 6M 18±2dBm
802.11n HT20 MCS7 15±2dBm MCS0 17±2dBm
802.11n HT40 MCS7 14±2dBm MCS0 16±2dBm
2.4G Receive Sensitivity 802.11b 11M -82dBm 1M -94dBm
802.11g 54M -70dBm 6M -88dBm
802.11n HT20 MCS7 -68dBm MCS0 -86dBm
802.11n HT40 MCS7 -66dBm MCS0 -84dBm
2.4G EVM 802.11b_11M: ≤-10dB ;802.11g_54M: ≤-25 dB ;802.11n_MCS7: ≤-28 dB
PPM ±20ppm
LAN 1 * 10/100 self-adaption LAN port
WAN 1 * 10/100 self-adaption WAN port
Power DC: 9~36V wide voltage
PoE: 48V IEEE 802.3af PoE power, optional
Switch 1* Power switch
SIM Card Slot 1*SIM card slot for 4G network
Reset Button 1*Reset button
GPS Optional
Bluetooth Bluetooth 5.0, optional
RTC With coin cell battery, provide correct system time even power off
Antenna Connector 4G antenna X2, Ipex connector;
Bluetooth antenna X1, Ipex connector;
GPS antenna X1, Ipex connector;
WiFi antenna X2, Ipex connector
Extension Interface RS232 (DB9)
RS485 (2P 5.08 interface)
CAN (2P 5.08 interface) optional
LED Indicator SYS LED; WAN LED x1; LAN LED x1; WiFi LED; 4G LED
Max Power Consumption < 10W
Product Size 120*157*16mm
Working Environment Working temperature: -20°C to 55°C;
Extreme working temperature: -40°C to 55°C;
Storage temperature: -40°C to 70°C;
Humidity: 5%~95% (No condensation)
4G Data Rate:
4G protocol Cat6
LTE-FDD Band B1/B3/B5/B7/B8/20/B28/B32
LTE-TDD Band B38/B40/B41/B42/B43
WCDMA B1/B3/B5/B8
LTE-FDD Speed Downlink: 300Mbps, Uplink: 50Mbps
LTE-TDD Speed Downlink: 226Mbps, Uplink: 28Mbps
DC-HSDPA/HSUPA Downlink: 42Mbps, Uplink: 5.76Mbps
WCDMA Downlink: 384kbps, Uplink: 384kbps

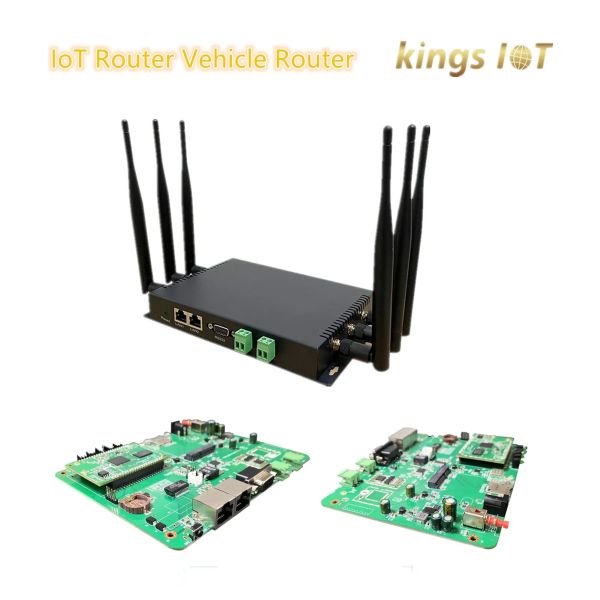

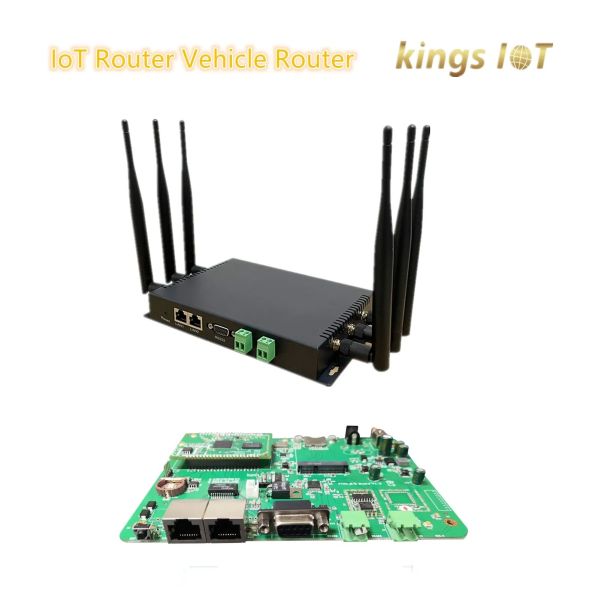

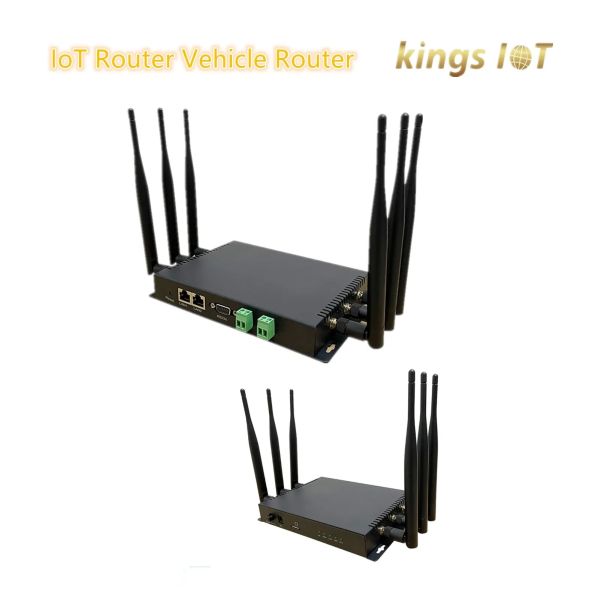

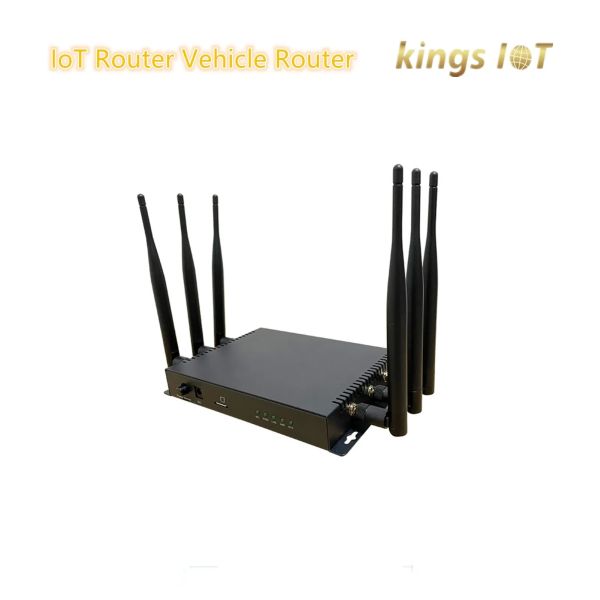

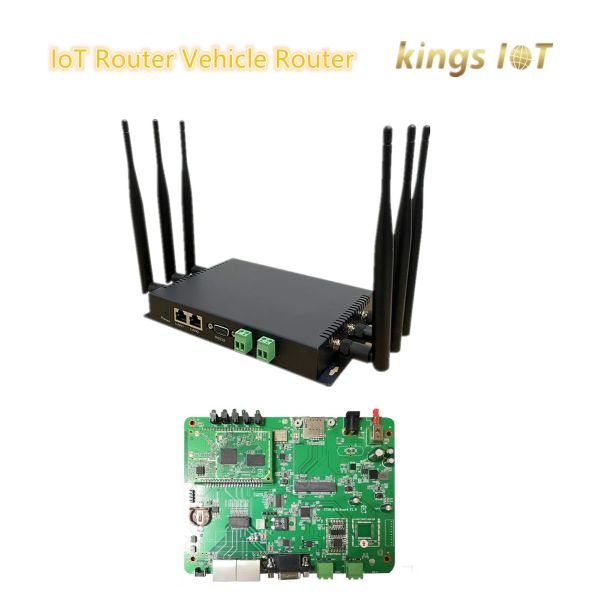

Detailed Photos

China Budget Esim SIM 4G Router CPE Industrial 4G CPEChina Budget Esim SIM 4G Router CPE Industrial 4G CPEChina Budget Esim SIM 4G Router CPE Industrial 4G CPE

China Budget Esim SIM 4G Router CPE Industrial 4G CPEChina Budget Esim SIM 4G Router CPE Industrial 4G CPE
China Budget Esim SIM 4G Router CPE Industrial 4G CPEChina Budget Esim SIM 4G Router CPE Industrial 4G CPE
After Sales Service

2 years warranty

FAQ

1. Firmware
We developped an Openwrt firmware, which added the driver for 4G, CAN, Bluetooth...
We can share this Openwrt firmware to customer, customer can develop their applications based on this firmware.

2. Can delete Wi-Fi, 4G or other functions if no need.
