Specifications
Firewall :
Firewall
Protocol :
Cat4
Transfer Rate :
10/100Mbps
Package Gross Weight :
1.000kg
RJ45 Ports :
1 Wan, 2 LAN
4G :
LTE-FDD and LTE Tdd
Model NO. :
KS-LTE517
Ethernet :
4G or Wan, or 4G Backup
4G Speed :
150Mbps in Dl, 50Mbps in UL
4G Bands :
All 4G Bands Support
Specification :
2.4G 300Mbps LTE Router
VPN :
Pptp, L2tp, Openvpn
SIM Card :
Usim
Power :
DC Power
WiFi Standard :
11AC
Architecture :
Single Bus Symmetric Multi CPU
Transport Package :
Gift Box
Package Size :
26.00cm * 19.80cm * 5.80cm
Application :
SOHO
Network :
LTE
End Users :
32+
Ports :
≤4
WiFi Frequency :
2.4G+5.8g
Trademark :
OEM/ODM
Port Structure :
Modular
HS Code :
8517623690
Production Capacity :
150000PCS/Month
Antenna :
5dBi External Antenna
Performance :
Line-Rate Router
WiFi Speed :
2.4G 300Mbps, 5.8g 1200Mbps
Battery :
2600mAh or 5200mAh
Origin :
China
Description
1200Mbps 4g lte access point with battery, best 4g router for travel
11AC 3G 4G LTE Router WiFi 4G with SIM Card Slot, Battery

Product Description

KS-LTE517 is an high speed, high performance, multiple functions LTE CPE. Comply with IEEE 802.11ac wireless standard, the wireless speed up to 1200Mbps in 2.4GHz and 5.8GHz. Support 4G FDD/TDD, WCDMA and GSM networking, plug and play, easy to have the high speed wireless network for 32+ end users. Support VPN, it is best choice for ISP, home and some chain stores.
Main Features:

  1. Support 4G/WCDMA/GSM network, plug and play, easy to install;
  2. 2.4GHz+5.8GHz, the wireless speed up to 1200Mbps, 32+ end users can access into it;
  3. With SMA connector, 5dBi detachable antenna for better 4G signal;
  4. Support VPN, more functions for more application scenes;
  5. Provide deeply firmware support, help customer to develop their own firmware;
Product Parameters
Hardware Spec:
Model KS-LTE517
WiFi Standard IEEE 802.11b/g/n/ac
CPU MT7628+MT7613
Flash 8MB
Memory 64MB
Frequency 2.4G: 2400 - 2484MHz
5.8G: 5180~5825MHz
Data Rate 300Mbps @ 2.4GHz
900Mbps @ 5.8GHz
RF Power 2.4G≤20 dBm/chain
5.8G≤20 dBm/chain
Access Users 32+ Clients

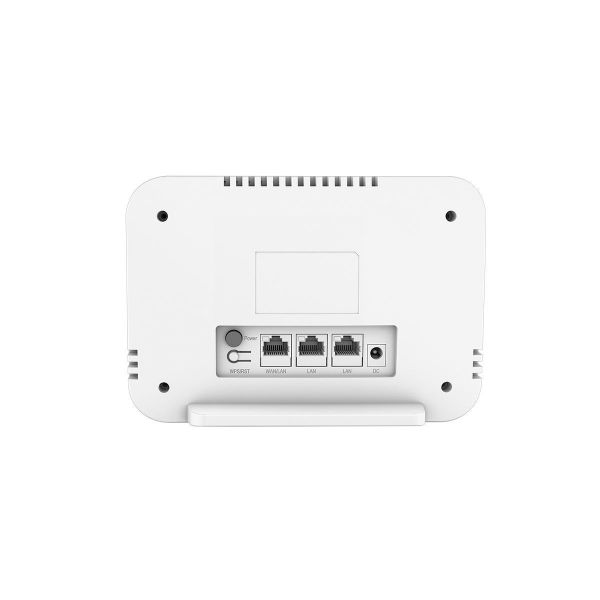

Interface 1*10/100Mbps RJ45 port, WAN/LAN port
2*10/100Mbps RJ45 ports, LAN ports
1*SIM card slot for 3G/4G SIM card
1*Power button to switch on/off power
1*Reset button/WPS button
1*DC power injector, 12V/1A power adapter
LED Indicator Power
ETH
4G Signal strength (S1~S4)
Wi-Fi Antenna Build in 5dBi MIMO Antenna
4G Antenna External detachable 5dBi antenna
Power Consumption <12W
DC Power Supply Input 12V / 1A (DC);
Battery Optional: can be 2600mAh or 5200mAh
Working temperature Working Temperature:-20ºC~45ºC
Storage temperature: -40ºC~70ºC
Humidity 5%~95%

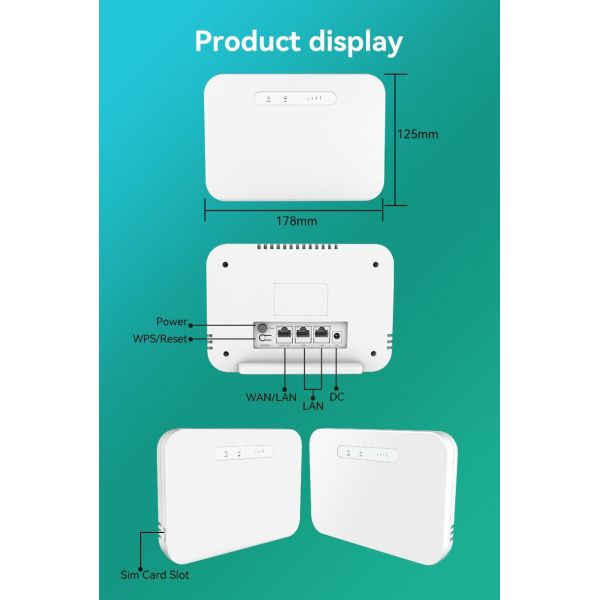

Dimensions 178*125*33mm
Firmware Features
Operation mode WAN/4G (WAN only, 4G only, WAN fist, 4G backup)
APN Support auto APN and manual APN
Wireless Functions Support guest SSID, SSID hidden
Support firewall such as MAC filter, IP filter
Support scheduled Wi-Fi on/off
VPN Open VPN and VPN Client (L2TP PPTP)
Security Open, WPA, WPA2PSK_TKIPAES, WAP2_EAP
IP Protocol IPv4
Device Management GUI web management
Support firmware back-up, restore, reset, upgrade
Packing List
 KS-LTE517*1
Power Adapter*1
LAN Cable×1(1 meter)
User Manual×1
4G Data Rate
4G protocol Cat4
3G/4G bands for China/India B1/B3/B5/B8@FDD; B34/B38/B39/B40/B41@TDD;
B1/B5/B8@WCDMA; B3/B8@GSM
3G/4G bands for Europe/Middle East B1/B3/B7/B8/B20/B28@FDD;
B38/B40/B41@TDD, B1/B8@WCDMA; B3/B8@GSM
3G/4G bands for Australia B1/B2/B3/B4/B5/B7/B8/B28/B66@FDD; B40@TDD,
B1/B2/B4/B5/B8@WCDMA; B2/B3/B5/B8@GSM
LTE-FDD Speed Downlink: 150Mbps, Uplink: 50Mbps
LTE-TDD Speed Downlink: 130Mbps, Uplink: 35Mbps
DC-HSDPA/HSUPA Downlink: 42Mbps, Uplink: 5.76Mbps
GSM Downlink: 384kbps, Uplink: 384kbps
Detailed Photos

2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router2.4G 300Mbps LTE Router KS LTE517 1200Mbps 4G LTE Access Point with Battery Compact Lightweight Travel Router
Packaging & Shipping

Carton box: 41*25*39cm;
20PCS/CTN

After Sales Service

Two years warranty

FAQ

Q1. 4G bands:
A: Can customize the bands if not support

Q2. OEM & ODM service
A: OEM: provide your LOGO to us, we can add your LOGO on the product, firmware and package;
Content will be limited by MOQ;

ODM: we can provide PCBA, housing and firmware ODM service:
PCBA: 2~3 month to finish it;
Housing: 2 month after finish the PCBA;
Firmware: we can provide the open source driver for customer to develop their firmware;
We can provide DTS files if want;
And we can provide technical support in customer firmware development.

Q3. If support out of China production:
A. Yes, this is developed by our engineers, we can support SKD and CKD;
We can provide the SOP of assemble and finished product testing;
But for the CKD, firstly you can do the RF calibration, 2nd you should have engineer to debug the problem;
We can provide SOP or all documents, and we can send engineers to provide technical support, but will be costly.
