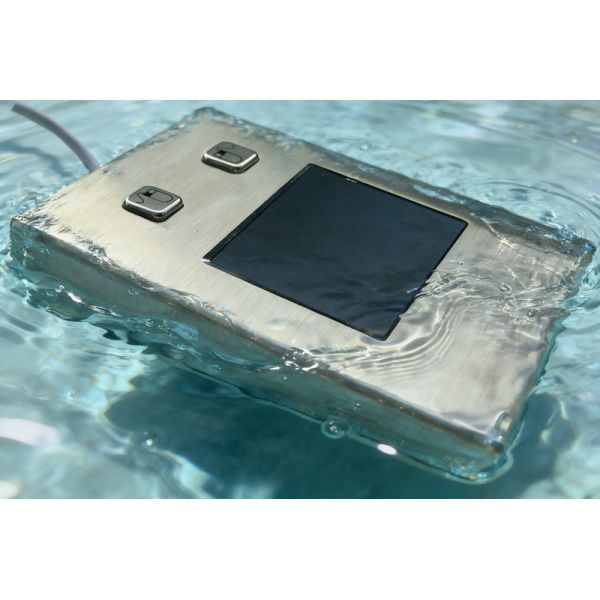

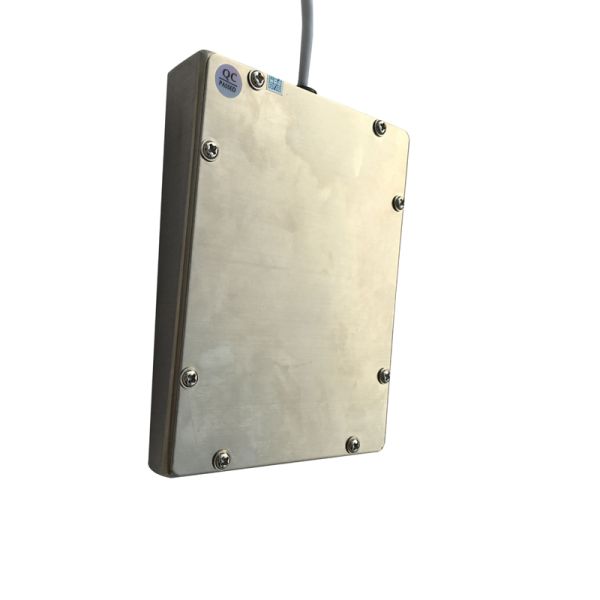

IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
IP65 Up to IP68 Rugged Industrial Waterproof Dust-proof Stainless Steel Metal Desktop Highly-sensitive Touchpad With Sloping Palm Rest
Specifications
Brand Name :
Neutral or custom
Model Number :
MTP-46-DT-C
Certification :
CE,FCC,ROHS
Place of Origin :
China
MOQ :
1pcs
Price :
US$85.00
Payment Terms :
T/T,Paypal,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability :
3000pcs/month
Delivery Time :
7days
Packaging Details :
1pcs/box, 10pcs/ctns
Material :
Stainless Steel
Interface :
USB/ PS2 wired
Mouse :
Touchpad
Mounting Method :
Desktop Standalone
Resolution :
1000dpi
Description

This industrial touchpad is built for harsh environments, featuring a brushed stainless steel casing and keys for exceptional durability, rust resistance and moisture resistance.

Boasting 1000 DPI high-sensitivity for precise and smooth operation, it adopts a fully sealed structure to achieve dustproof and waterproof performance, complying with IP65–IP68 standards. The ergonomic forward-tilt design effectively reduces wrist fatigue.

With support for USB/PS2 interfaces and compatibility with Windows and Linux systems, it is widely suitable for industrial, medical and outdoor application scenarios.

Items

Specifications

Key Features

- Rugged touchpad with 1000 DPI

- The enclosure and keys are made of stainless steel,brushed finish

- Designed to operate in harsh environments,anti-rust/damp etc

- Sealed to be dust-proof and liquid-proof,IP65 up to IP68 compliance

- Compatible with WINDOWS98/ME/2000/XP,Win7/8.1/10/11,Linux

- PS/2 or USB interface

- Ergonomic design: sloping front mitigates the fatigue of user’s wrist

Material

- Enclosure and keys:304 stainless steel

Electrical Data

- Voltage: 5.0VDC ±5%

- Electric current: 10mA

- EMC compliant

- Touchpad resolution: 1000dpi

Environmental Characteristics

- Operating temperature: -20º C to + 60º C
- Storage temperature: - 40º C to + 80º C
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40º C: 21 days, IEC 60512-6
- Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

- Lifecycle: >5 million times per key

• Key Travel: 2.0 mm

• Actuation Force for keys: 130g±15g

• Lettering: chemically etched graphics with permanent ink

Compatible Operation System

- PS2: Win NT4, 98SE, 98ME, 2000, XP
- USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX,Win7/8.1/10

Reliability

-MTBF:>20,000 hours

-MTTR:<30 minutes

Dimension

-106.00 x 168.00 x 46.50mm (W x D x H)

Weight

0.50 kgs
