Product Description

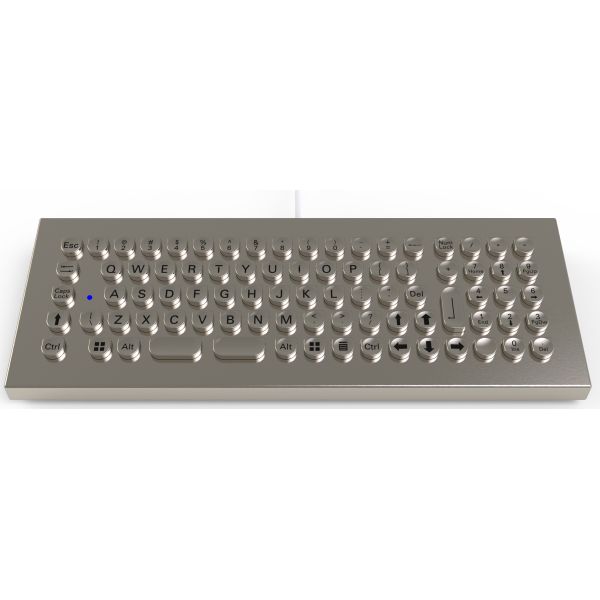

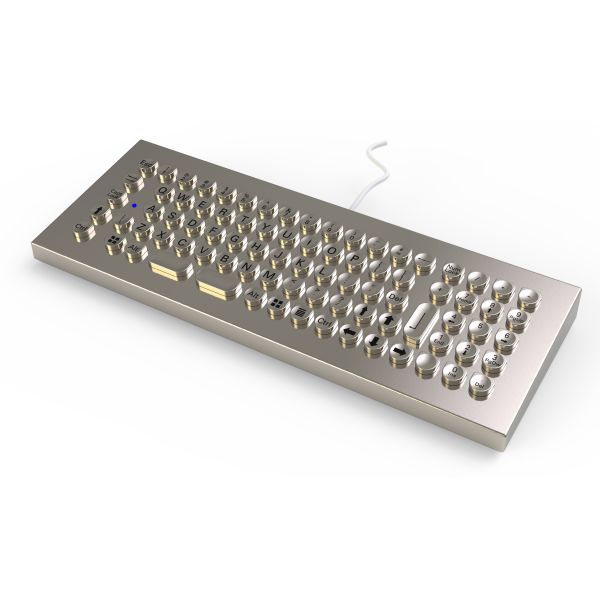

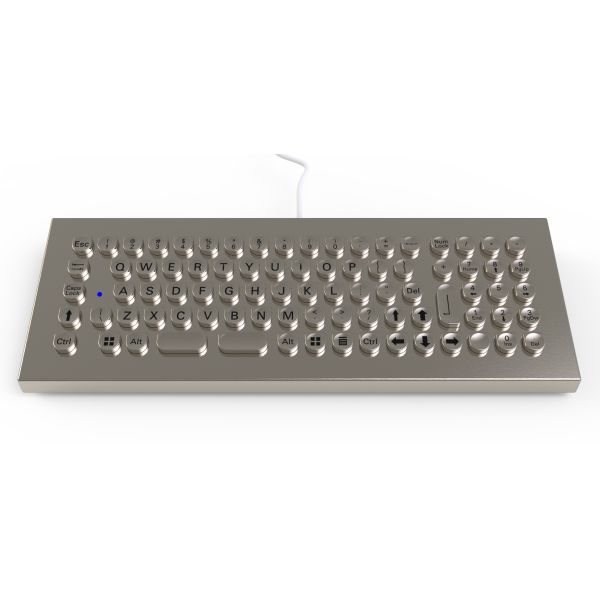

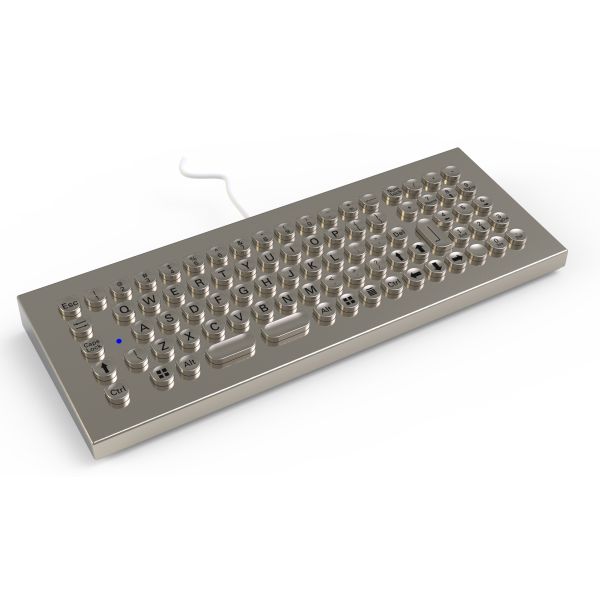

This is a compact, small footprint desktop metal keyboard, which integrate a numeric keypad and optional Function keys in one single case

Key Features

• Desktop style, no mounting needed, enjoy the convenience of mobility
• 83 finger-shaped keys including optional 12 function keys F1~F12 and numeric keypad
• Two short space-bars
• Protruding full travel(2.0mm)keys with chemically-etched graphics, excellent tactile feedback
• 1.8m cable with ferrite
• Specially designed to operate in harsh environments, making it ideal for the applications in harsh environment.
• Exposed parts built from stainless steel, high resistance against rust, corrosion and vandalism.
• Completely sealed to meet IP65 up to IP68 requirement.
• PS/2 or USB interface for option
• Customizable layout/characters upon customer’s request.

Material

• Case & Keys: SUS304 brushed stainless steel

Electrical Data

• Power supply voltage: DC 5 V ± 5%
• Current rating: 20 mA
• Interface: USB or PS2
• EMC compliant.
  • Emission: EN 50081-1
  • Immunity: EN 50082-1
• FCC: Part 15, class B
• Safety: EN 60950, CE compliant

Environmental Characteristics

• Operating temperature: -20º C to + 60º C
• Storage temperature: - 40º C to + 80º C
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40º C: 21 days, IEC 60512-6
• Dry heat test at + 85º C: 10 days, IEC 60512-6

Mechanical Data

• Actuation force for key: 120±15g
• Key travel: 2.0mm
• Lifetime (cycles): Min 5, 000, 000 actuations
• Sealing protection: IP65/NEMA4X from the front
• Vibration resistance: 5 Hz - 200 Hz, IEC 60512-4
• Shock resistance: 3 axis 150 m/s² - 11 ms, IEC 60512-4

Compatible Operation System

• PS2: Win NT4, 98SE, 98ME, 2000, XP
• USB: Win 98SE, 98ME, 2000, XP, Mac OS9 / OSX, Win7/8.1/10/11, Linux

Reliability

• MTBF: >20,000 hours
• MTTR: <30 minutes

Certification

• FCC, CE, RoHS

Dimension

• 344.00 x 130.00 x 29.35mm(LxWxH)

Weight

• 1.50kgs
