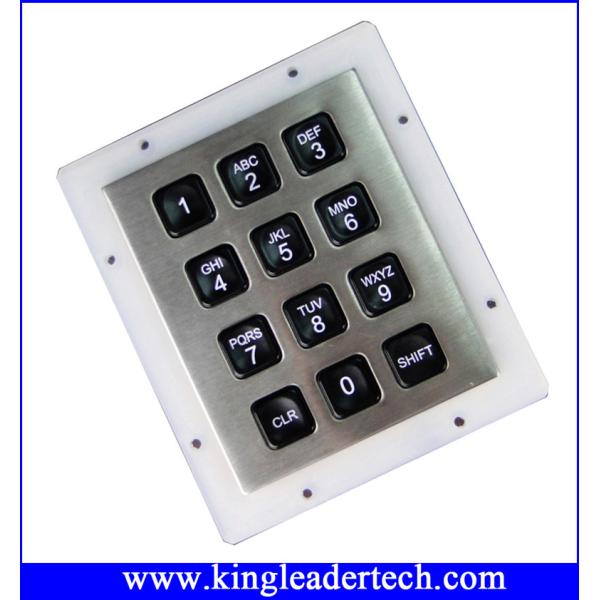

Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix
Specifications
Place of Origin :
China
Brand Name :
KINGLEADER
Model Number :
MKP92-12BL
Certification :
CE,FCC
MOQ :
1pcs
Price :
US$
Packaging Details :
1pcs/box, 10pcs/ctns
Delivery Time :
20days
Payment Terms :
T/T,Paypal
Supply Ability :
2000pcs/month
Material of Front Panel :
Stainless Steel
Material of Back Panel :
Aluminum Alloy
Material of Keycap :
PC
Number of Keys :
16 Led Illuminated Backlight Keys
Interface :
USB or PS/2 or RS232
Layout :
Customization Available
Description

Rugged IP65 Waterproof Backlit Metal Numeric Keypad For Low-Lit Environment In 3x4 Matrix

PN: MKP92-12BL

Technical Specification

Material

Front panel

304 stainless steel

Keys

High Temperature Polycarbonate

Back panel

Aluminum

Number of Keys

12

Matrix

3 x 4

Function

LED Backlight illuminated

Color of backlight

Blue, Green or Red

Electrical Data

Interface

USB or PS/2 or RS232(With electronic controller board)

10PIN connector (Without electronic controller board)

Certification

CE,FCC

Environmental Characteristics

Operating temperature

-20º C to + 60º C

Key travel

2.0mm

Lifetime (cycles)

Min 5, 000, 000 actuations

Sealing protection

IP65/NEMA4X from the front

Layout

Customizable available

Dimension

92.00 x 76.50 mm (W x D) (front panel)

Application

Door access control system or other application in dark or low-lit environment
