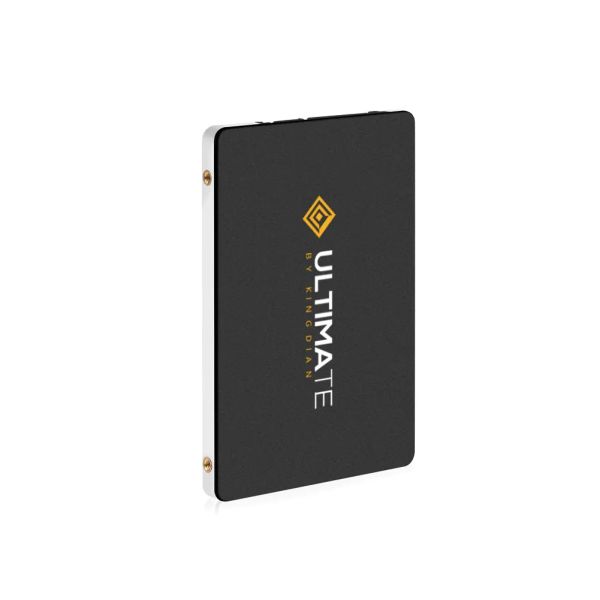

2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
2.5 Inch SATA3 SSD ULTIMATE Series
Specifications
Payment Terms :
L/C,T/T,Western Union
Place of Origin :
China
Certification :
RoHS,CE,FCC,ISO
MOQ :
1
Brand Name :
KingDian
Model Number :
S220 ULTIMATE Series
Description
Key Parameters

Interface: SATA3(6.0Gb/s), compatible with SATA2(3.0Gb/s);

Operating Temperature: 0-70℃

Storage Temperature: -40-75℃

Capacity: 120GB/240GB/480GB/1TB/2TB/4TB;

Dimension: 100*70*7 mm

Compatible Systems: Mac, Windows, Unix, Linux etc;

Efficient Transmission: The fastest transmission speed up to 556MB/s;

Use for: PC, laptop, IPC, embedded computer, thin client, Mini-PC, POS Machines, All-in-one PC, etc.


Key Features
  • A Simple Upgrade for Everyday PCs - Replace your traditional hard drive with a KingDian SATA SSD to enjoy faster boot times, quicker application launches, and a more responsive computing experience.
  • Reliable SATA Performance - With SATA III speeds of up to 556MB/s, everyday tasks such as web browsing, office work, media playback, and file transfers become smoother and more efficient.

  • Store More, Worry Less - Available in capacities from 120GB to 4TB, providing flexible storage options for documents, photos, videos, games, and business files.

  • Lower Power, Longer Service Life - Built with carefully selected NAND Flash memory, KingDian SSDs help reduce power consumption while supporting reliable long-term performance.

  • Tested Before It Reaches You - Every KingDian SSD completes 4-8 hours of burn-in testing at standard temperatures (0-70°C), plus extended testing from -20°C to 75°C before shipping, ensuring reliable operation even in challenging environments.


Product Specifications
Model Name S220 ULTIMATE-120GB S220 ULTIMATE-240GB S220 ULTIMATE-480GB S220 ULTIMATE-1TB S220 ULTIMATE-2TB S220 ULTIMATE-4TB
Capacity 120GB 240GB 480GB 1TB 2TB 4TB
EAN 6935515105114 6935515105121 6935515105138 6935515105145 6935515107293 6935515139263
Min Sequential Read/Write(MB/s) 510MB/s/360MB/s 520MB/s/380MB/s 520MB/s/390MB/s 530MB/s/500MB/s 530MB/s/500MB/s 535MB/s/506MB/s
Max Sequential Read/Write(MB/s) 535MB/s/460MB/s 535MB/s/500MB/s 535MB/s/500MB/s 540MB/s/500MB/s 550MB/s/500MB/s 556MB/s/508MB/s
Product Series 2.5 Inch SATA3 S220 ULTIMATE Series SSD
Interface Type SATAIII (6.0 Gb/s)
Origin CN (Origin)
Brand KingDian
Transport Protocol AHCI
Net Weight 40g
Gross Weight 65g
RGB No
Temperature Alert No
OEM/ODM Yes
Cache None
4KB Random Wirte 69884
4KB Random Read 61183
Internal/External Internal
Operating Voltage 5V
Operating Temperature 0-70℃
Storage Temperature -40~85℃
Warranty 3 Years
Nand Flash Type TLC/QLC
MTBF 1000000H
Item Demension 100*70*7MM
Box Packing Size 145*88*16.5MM
Certificate CE,FCC,ROHS,KC
Application PC/NB/Server/All in one PC etc
Controller SMI/Yeestor/Realtek/Maxio etc
Flash Brand Intel/Micron/SAMSUNG/SK Hynix/SanDisk/Kioxia/YMTC
Note: Specifications and performance data are for reference only. Actual results may vary based on system platforms or configurations. KingDian reserves the right of final interpretation.
