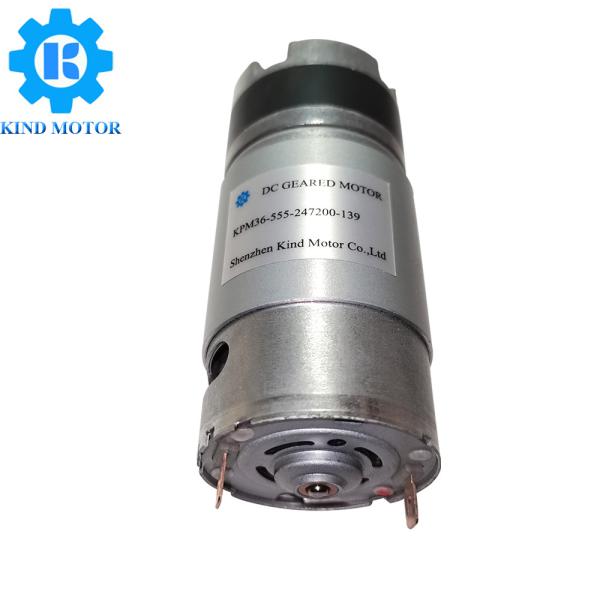

High Torque 12 Volt Dc Planetary Geared Motor 36mm Diameter Low Rpm
High Torque 12 Volt Dc Planetary Geared Motor 36mm Diameter Low Rpm
High Torque 12 Volt Dc Planetary Geared Motor 36mm Diameter Low Rpm
High Torque 12 Volt Dc Planetary Geared Motor 36mm Diameter Low Rpm
Specifications
Brand Name :
Kind Motor
Model Number :
KPM36-555
Certification :
ISO9001/RoHS/CE
Place of Origin :
China
MOQ :
200
Price :
$6-$15/PCS
Payment Terms :
L/C, D/A, D/P, T/T,Paypal, Western Union
Supply Ability :
500000/Month
Delivery Time :
1-6 weeks
Packaging Details :
Expect Standard Carton and Foam
Voltage(v) :
5v-36v
Speed(rpm) :
1rpm～3000rpm
Gears material :
Stainless steel
Brush Type :
Brushes/Brushless
Type :
planetary geared motor
Rated Torque :
≤35kg.cm
Stall Torque :
≤95kg.cm
Continuous current(a) :
≤10A
Output power :
≤50W
Weight :
410g
Description

36mm diameter 12v 24v dc low rpm high toruqe planetary gear motor for
electric valve

Product introduction
This is 36mm diameter 12v 24v dc low rpm high toruqe planetary gear motor,the planetary
gearbox can withstand high torque,it's can with carbon-brushed motors and brushless motor,
the voltage can be 5-36 v,the parameters and shaft can customized according requirement,the
brush motors can with 12ppr and 16ppr encoder.

Brand:Kind Motor

Model KPM36-555
Gears Material All Metal
Gearbox Reduction ratio 1:5～1:3736
Motor model KRS545 brush motor,length is 50mm
KRS555 brush motor,length is 57mm
Brush Type Carbon-Brush/Brushless
Voltage 5 v,6 v,7.4 v,9 v,12 v,14.4 v,18 v,24 v
Speed 0.5rpm ～2000rpm
Rated Torque
＜3.5Nm
Shaft Size 8mm D shaft(Can Customized)
Typical Application
Robot, Electric Valve,Toy,Massage instrument,Beauty equipment,Medical industry,ATM equipment,Electric curtain,Equipmentetc.


Product Parameters
█ODM & OEM
█If you need other size and patameters,diameter from 8mm~60mm can be chosen
█The parameters and shaft size can customized

RS555 dc caron-brush motor with 36mm planetary gearbox
High Torque 12 Volt Dc Planetary Geared Motor 36mm Diameter Low Rpm
High Torque 12 Volt Dc Planetary Geared Motor 36mm Diameter Low Rpm
