2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
Specifications
Modulation Type :
FM
Receiving Frequency :
2000–2280 MHz
Output Voltage :
5V / 0.5A
Brand Name :
Kimpok
Model Number :
2.2G VRX
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
4,000 pieces per month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Number of Channels :
8 channels
Description
2.2G Drone Video Transmission Receiver - High Sensitivity Stable Signal
Key Attributes
Attribute Value
Output Voltage 5V / 0.5A
Modulation Type FM
Receiving Frequency 2000–2280 MHz
Number of Channels 8 channels
Product Overview

This 2.2G analog video transmission receiver is designed for drone flight video downlink, featuring advanced 2.0-2.28GHz analog signal reception technology for reliable real-time video capture. Ensures smooth, clear ground monitoring even in complex electromagnetic environments, ideal for both recreational flying and precision aerial photography.

Key Features
  • 8 selectable channels, compatible with FatShark, Skyzone FPV goggles, and analog monitors
  • High-sensitivity reception (-97dBm) for improved long-range and weak signal performance
  • High-efficiency DC/DC power design supports 7-36V wide voltage input (2-6S battery)
  • 5V/0.5A output available to power external devices
  • Easy channel switching via short-press button
  • SMA antenna connector for convenient antenna replacement or upgrade
Product Advantages
  • Strong anti-interference: minimizes video stuttering and signal loss
  • Plug and play: quick installation with no complicated setup
  • High compatibility: works with multiple FPV display devices
  • Compact and durable design for various flight scenarios
  • Wide voltage support for different battery types and drone platforms
Applications
  • FPV racing drones
  • Aerial photography and mapping
  • Drone simulation training
  • Industrial inspection and monitoring
Technical Specifications
Input Voltage 7-36V DC (2-6S battery)
Output Voltage 5V / 0.5A
Video System PAL / NTSC
Number of Channels 8 channels
Channel Selection Short-press button
Receiving Frequency 2000-2280 MHz
Sensitivity -97 dBm (MAX)
Antenna Interface SMA (outer screw, inner hole)
Modulation Type FM

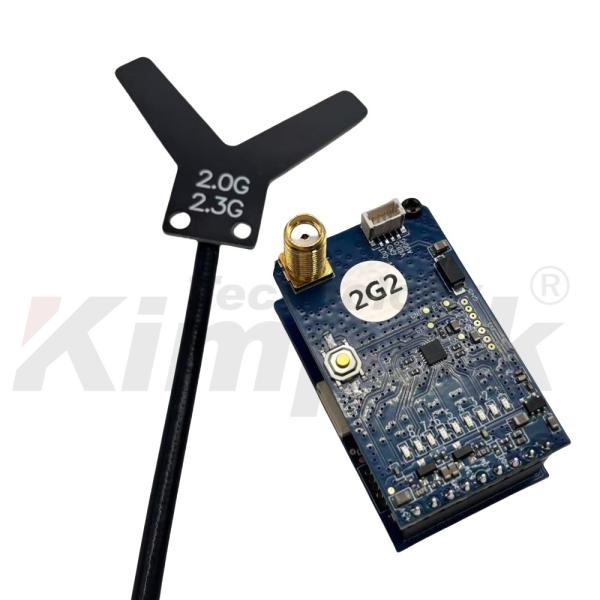

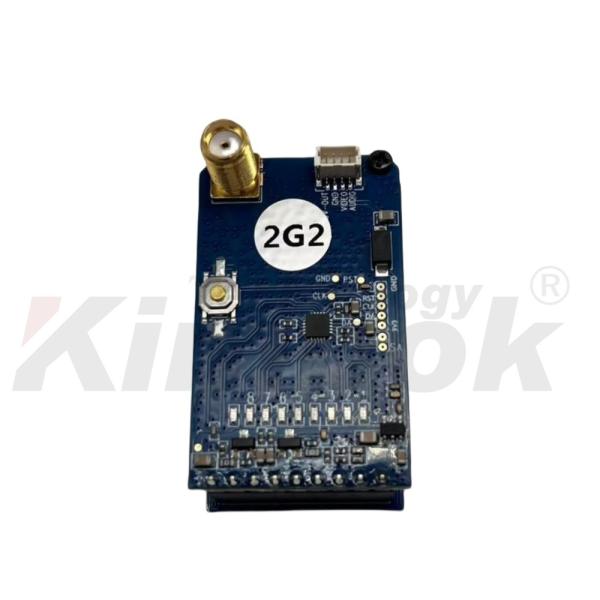

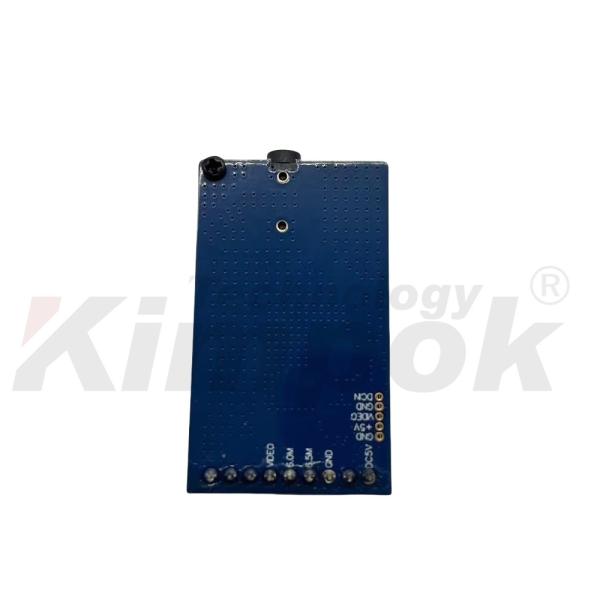

Product Images
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
2.2G Drone Video Transmission Receiver High Sensitivity Stable Signal
