Specifications
Brand Name :
Kimpok
Model Number :
3.3G 4W VTX
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
3,000 pieces per month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Max power :
4W (25mW/2000mW/4000mW, adjustable)
Input voltage :
DC 7V-36V, supporting 2-8S battery input
Antenna connector :
SMA Mother seat inner hole
Smart audio :
IRC Tramp
Weight :
25.85g
Description
3.3G 4W Drone FPV Video Receiver - High - Performance Transmission Solution​​
Product Introduction​

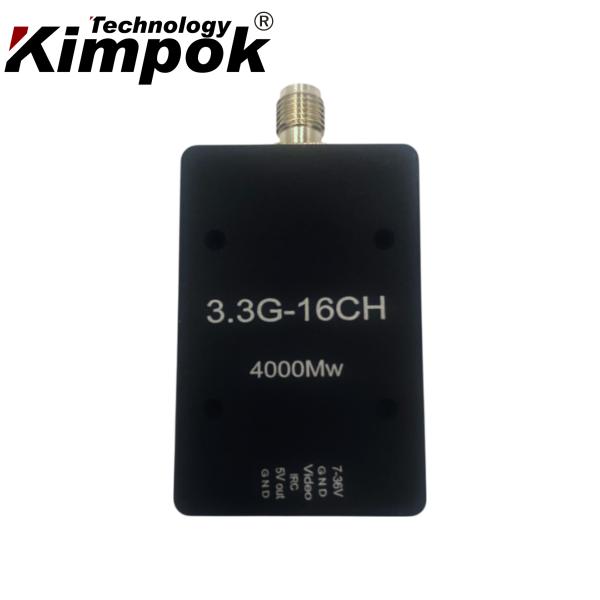

This 3.3G 4W VTX is a state - of - the - art FPV video transmitter designed for drones. Operating in the 3.3GHz frequency band, it features 16 selectable channels, allowing for flexible frequency adjustment. With an adjustable power output of 25mW/2000mW/4000mW and a wide voltage input range of 7 - 36V (compatible with 2 - 8S batteries), it offers great versatility for different flight scenarios. It is an essential component for achieving smooth and stable FPV video transmission, whether for drone racing, aerial photography, or long - range flights.​
Features​
  • 16 - Channel Frequency Selection: Covers a wide frequency range within 3.3GHz, enabling users to find the optimal channel to avoid interference.​
  • Adjustable Power Output: Offers three power levels (25mW/2000mW/4000mW). Short - press the power button to cycle through the levels, catering to both short - range and long - range video transmission needs.​
  • Wide Voltage Compatibility: Accepts a DC input voltage from 7V to 36V, which is compatible with a variety of 2 - 8S batteries commonly used in drones.​
  • SMA Female Antenna Connector: Facilitates easy connection of antennas. Supports the IRC Tramp smart audio protocol for enhanced functionality.​

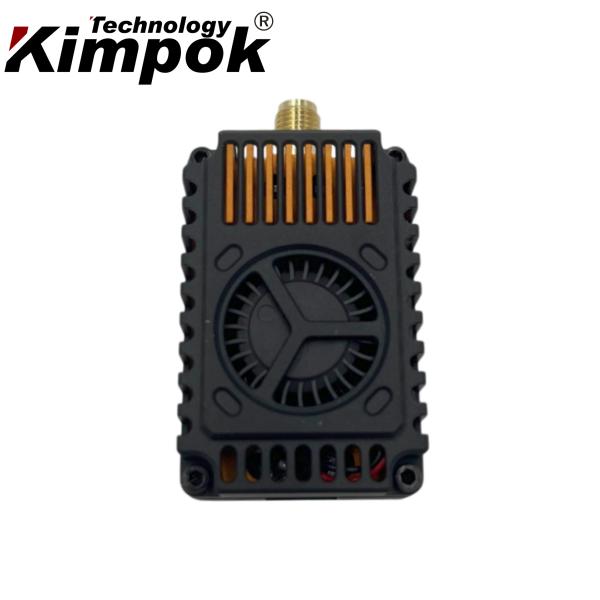

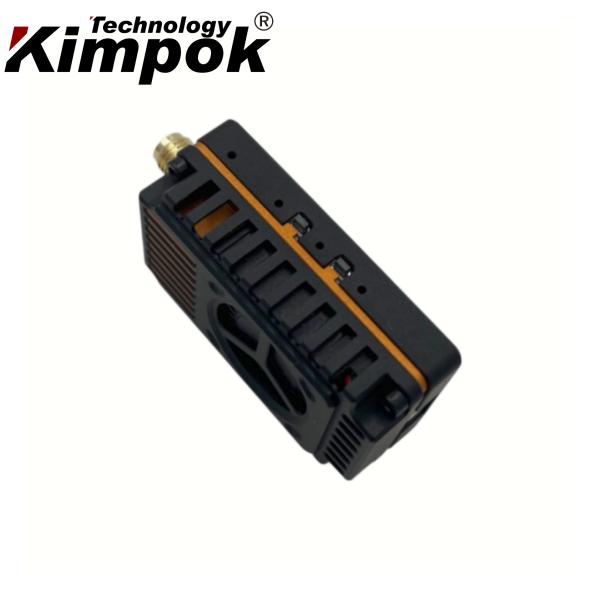

  • Efficient Cooling System: Comprises an aluminum alloy housing, heat sink, and cooling fan to ensure effective heat dissipation and stable operation.​
  • User - friendly Control: Features button - based control for channel/band switching and power adjustment. Equipped with LED indicators (red for channel, blue for band, green for power) to display the current working status.​
Advantages​
  • Flexible Power Adjustment: Low - power mode is energy - efficient for short - range flights, while high - power mode provides stable signal transmission over long distances.​
  • Broad Voltage Compatibility: Eliminates the need for additional power adapters, as it can directly work with mainstream drone batteries (2 - 8S), reducing the complexity of use.​
  • Intelligent Thermal Protection: When the device temperature exceeds 100℃, it automatically reduces power. Once the temperature drops to 95℃, the original power is restored, extending the lifespan of the device.​
  • Convenient Operation: Channel, band, and power can be easily switched via buttons. The number of LED flashes clearly indicates the current status, making it accessible even to users without professional knowledge.​
  • Lightweight Design: Weighing only 25.85g with a 20mm*20mm mounting hole pitch, it is easy to install on drones, minimizing the impact on flight load.​
Applications​
Ideal for various drone - related activities such as FPV racing, aerial photography, and long - range flights. It can also be applied in fields like remote monitoring and model aircraft control that require real - time video transmission.​
Parameter Table​
​
Parameter​
Specification​
Frequency Range​
3.3GHz, 16 channels (3170MHz - 3470MHz)​
Maximum Power​
4W (adjustable: 25mW/2000mW/4000mW)​
Input Voltage​
DC 7V - 36V (2 - 8S battery compatible)​
Antenna Connector​
SMA female​
Smart Audio Protocol​
IRC Tramp​
Cooling Method​
Aluminum alloy housing + heat sink + fan​
Mounting Hole Pitch​
20mm*20mm (hole diameter 2mm)​
Dimensions​
53mm28.85mm16mm​
Weight​
25.85g​
Control Interface​
1.0 6 - pin power connector (with 5V output)​



​
