Specifications
Brand Name :
AKK
Model Number :
TX3000AC
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
3,000 pieces per month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Input voltage :
14V to 28V, suggest at least 6S battery
Output power :
25/250/500/1000/2000/3000mW
Dimensions :
36 (W)x36 (D) mm
Weight :
23g (excluding antenna)
Description

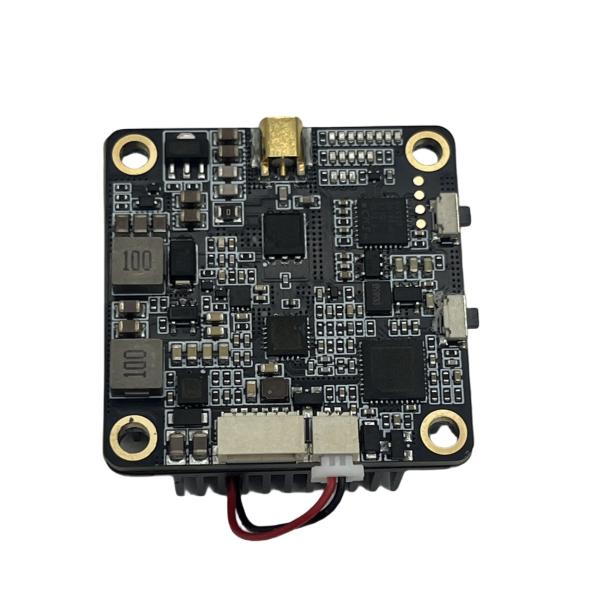

AKK TX3000AC 3W 5.8GHz 80CH FPV Racing Video Transmitter for Rush FPV Racing RC Quadcopter

Product Introduction

The AKK TX3000AC is a 5.8GHz video transmitter specifically designed for FPV racing RC quadcopters. With a 3W transmission power and 80 channels, it provides stable and high - quality video transmission for racing flights.

Features

  • Multi - channel and Frequency Band: Operates in the 5.8GHz band with 80 selectable channels for flexible interference avoidance.
  • Adjustable Power: Supports power switching among 25mW/250mW/500mW/1000mW/2000mW/3000mW.
  • Smart Audio: Supports smart audio function for OSD configuration.
  • Power Supply and Output: Input voltage is 14 - 28V, at least 6S battery is recommended, and there is a 5V output (max 500mA) for camera power supply.
  • Operation Control: Channels, bands, and power can be switched via buttons, and setting operations can also be carried out.

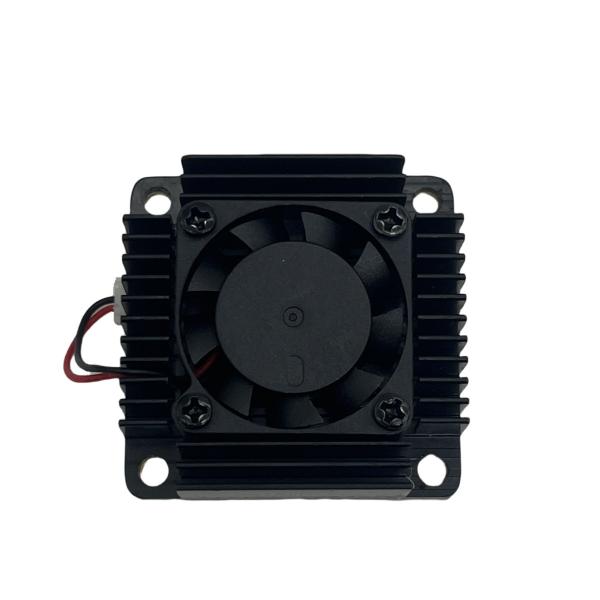

  • Cooling Design: Equipped with a built - in cooling fan to ensure stable operation of the device.
  • Weight and Dimensions: Weighs 48g, dimensions are 36(W)x36(D)mm, and the mounting holes are 30.5 x 30.5mm.

Advantages

  • Strong Anti - interference: Abundant channel options effectively avoid signal interference and ensure stable video transmission.
  • Flexible Adjustment: Multiple power levels and convenient button control to meet different flight scenario requirements.
  • Protection Function: 5 - second slow power - on protects the power amplifier and prevents damage from instantaneous high power.
  • Easy Installation: Moderate weight and standard mounting hole design make it easy to install on quadcopters.

Applications

Mainly applied to the competitions and trainings of FPV racing RC quadcopters, providing pilots with real - time and clear flight images.

Parameter Table

Technical Parameters Details
Name AKK TX3000AC
Frequency Band 5.8GHz
Number of Channels 80CH
Output Power 25/250/500/1000/2000/3000mW
Input Voltage 14 - 28V, at least 6S battery is recommended
Camera Power Supply 5V (max 500mA)
Antenna Connector MMCX
Cable Connector JST, 6 - pin
Control Method Button control
Smart Audio Supported
Cooling Built - in cooling fan
Dimensions 36(W)x36(D)mm, 30.5 x 30.5mm (mounting holes)
Weight 48g (excluding antenna)
Kit Contents 1 x VTX, 1 x cable, 1 x antenna pigtail
