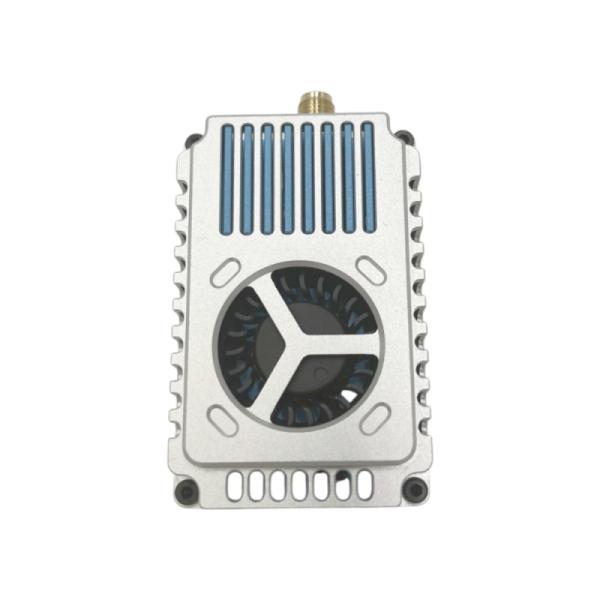

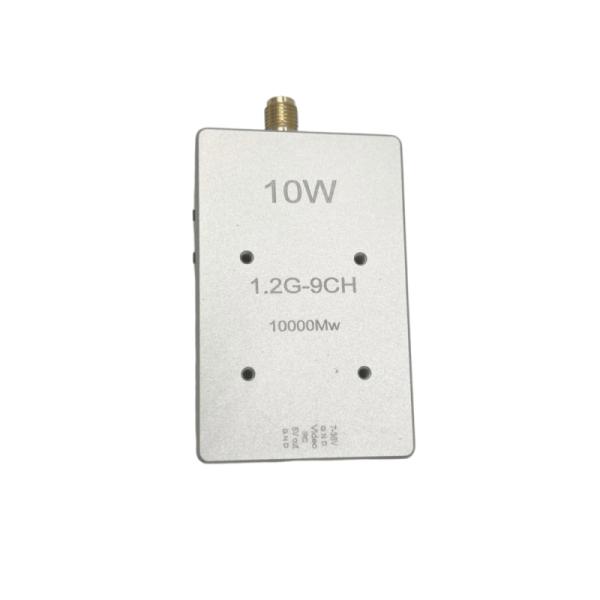

Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz
Specifications
Brand Name :
Kimpok
Model Number :
KP-12TX8WD
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1 pieces
Price :
$24.00 - $98.00/pieces
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
5000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Power :
DC 12V
Input Voltage :
DC 15V-36V, supports 4-8S battery input
Smart Audio :
IRC Tramp
Power Indicator :
Green LED
Hole Spacing :
20mm*20mm/ø2mm
Frequency Range :
1080MHz-1360MHz
Dimension :
65.8mm*37.3mm*19.3mm
Band & Channel Changer Button :
Available
Description

Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz

Features:

1. 1.2Ghz 9CH: 1080MHz-1360MHz;

2. Max power: 10W (1W/2.5W/5W,7.5W,10W adjustable);

3. Input voltage: DC 15V-36V, supporting 4-8S battery input

4. Antenna connector: SMA Mother seat inner hole

5. Smart audio: IRC Tramp

6. Heat-dissipating method: aluminum alloy shell, heat sink&fan

7. Hole spacing: 20mm*20mm/ø2mm

8. Dimension: 65.8mm*37.3mm*19.3mm

9. Weight: 48.15g

Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz

Technical Parameters:

Modulation FM
Product Name 1.2Ghz 10W FPV Video Transmitter VTX 9CH 1080-1360MHz IRC-Tramp 10 Watt
Frequency Range 1080MHz-1360MHz
Power Indicator Green LED
Input Voltage DC 15V-36V, supports 4-8S battery input
Smart Audio IRC Tramp
Heat Dissipating Method Aluminum alloy shell, heat sink & fan
Channels 9 Channels
Power DC 12V
Product Category FPV VTX

Function Introduction:

Smart Audio Control 1.2GHz 10W FPV Video Transmitter VTX 1280-1360MHz

1. Channel indicator: Red LED

2. Band indicator: Blue LED

3. Power indicator: Green LED

4. Band & Channel changer button

5. Power changer button

6. 1.0 6P Power connector

7. SMA Mother seat inner hole

FAQ:

Q: What is the brand of this FPV VTX product?

A: The brand of this FPV VTX product is Kimpok.

Q: What is the model number of this FPV VTX product?

A: The model number of this FPV VTX product is KP-12TX8WD.

Q: Where is this FPV VTX product manufactured?

A: This FPV VTX product is manufactured in Guangdong, China.

Q: What are the available payment terms for purchasing this FPV VTX product?

A: The available payment terms for purchasing this FPV VTX product are T/T, Western Union, and PayPal.

Q: What is the minimum order quantity for this FPV VTX product?

A: The minimum order quantity for this FPV VTX product is 1 piece.
