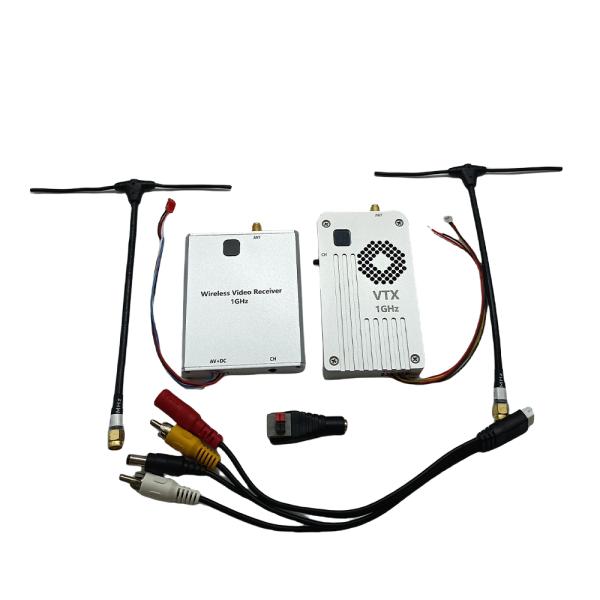

1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels
Specifications
Brand Name :
Kimpok
Model Number :
KP-10VTX5W
Certification :
CE Cerfication
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, PayPal, Alipay
Supply Ability :
5000 piece/month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Place of Origin :
China
Type :
Wireless video transmission
Frequency :
1Ghz
Transmit power :
5W
Voltage :
DC10-36V
Channel :
8 Channels
Pit Mode :
Support
Modulation :
FM
Distance :
40km LOS from air to ground
Material :
aluminum
Antenna Interface :
MMCX
Description

1G 5W UAV Video Transmitter FPV VTX VRX 1Ghz Analog Transmitter for Drone with 8 Channels

Description:

The transmitter is beautifully made, made of special metal, but also equipped with high-speed fans, more conducive to heat dissipation, more suitable for long-term work.

The signal input uses a universal AV interface, which is easily compatible with all conventional AV interfaces such as cameras, VCDS, DVDS, etc.

It is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but can also be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (if required to transmit data can be customized).

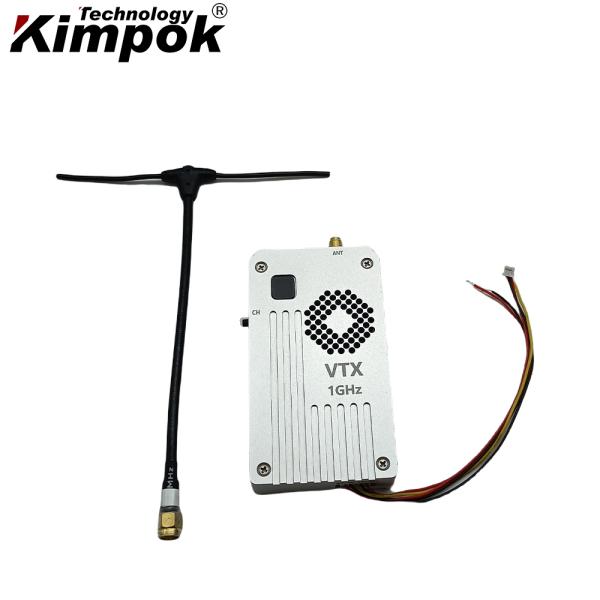

VTX Specification:

Product name Analog video transmitter
Voltage DC 24V
Current 1.3A
Modulation FM
Frequency 1000Mhz
Channels 8 channels
Frequency band 980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz
Transmit Power 5watt
Video Output 1 Vp-p(FM)
Temperature -10℃ ~ +50℃
Antenna port SMAfemale
Transmitter Weight 104g
Dimensions 98*55*18mm (without antenna)

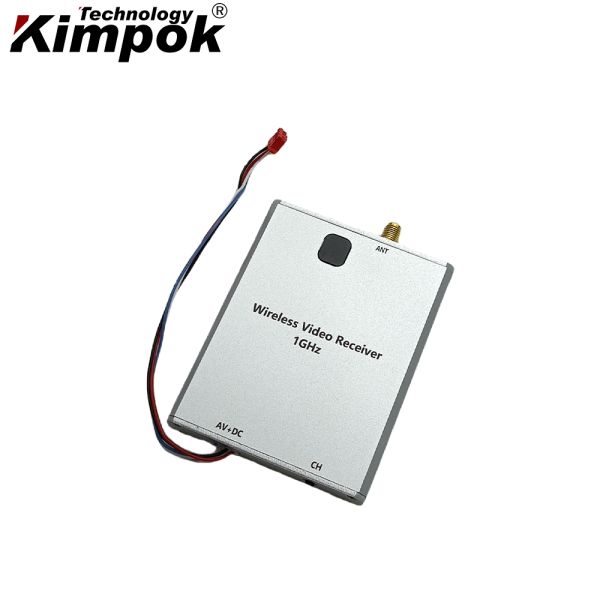

VRX Specification:

Product Analog video receiver
Voltage DC 24V
Receiving sensitivity -85dB
Modulation FM
Frequency 1000Mhz
Channels 8 channels
Frequency band 980Mhz, 1000Mhz, 1020Mhz, 1040Mhz, 1060Mhz, 1080Mhz, 1100Mhz, 1120Mhz
Video Output 1 Vp-p(FM)
Temperature -10℃ ~ +50℃
Antenna port SMAfemale
Transmitter Weight 83g
Dimensions (L * W * H) 75*45*20mm(antenna port not included)
