Specifications
Place of Origin :
Guangdong, China
Brand Name :
Kimpok Technology
Model Number :
KP-DRB01H
Packaging Details :
International standard packing
Price :
Negotiation
Certification :
CE
MOQ :
1 Piece
Payment Terms :
T/T, PayPal, Alipay
Supply Ability :
5000/month
Delivery Time :
1-3 working days
Modulation :
COFDM 2K
Channel :
one channel
Video resolution :
1080P
Frequency :
300MHz-4400MHz (subdivided)
Encryption :
AES user-defined password
Monitor :
17 inch
Description

One Channel Portable COFDM Wireless Video Receiver RF HD AV Receiver with 17 inch Monitor

Wireless COFDM receiver Description:

KP-DRB01H high quality security surveillance HD wireless video receiver is a new design COFDM wireless video audio receiver from Kimpok Technology.

Portable high quality security surveillance HD wireless video receiver is designed with built-in PTZ controller, which is special for transmitting from end camera movement controlling. Build in 120G SSD memory and 17 inch highlight LCD screen, it’s allowed real time video image storage, video monitoring. It also support video playback.

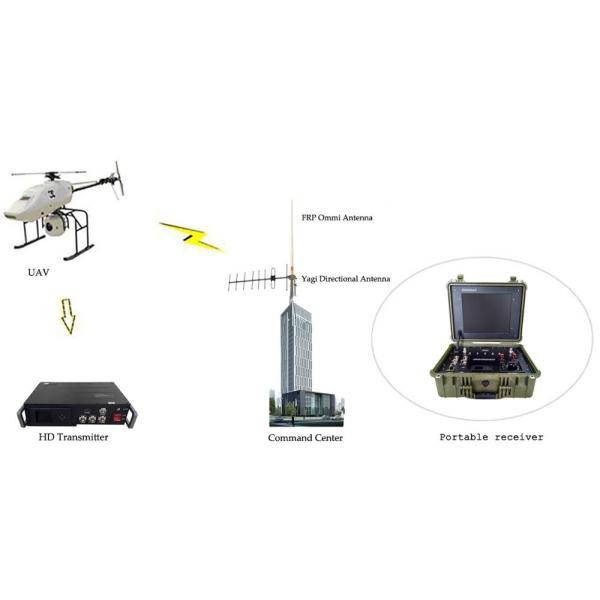

The convenient portable pelican case, PTZ controller, and large volume internal battery design make it wildly applied in outdoor tactical automatic project, like remote wireless video surveillance from robot/ship, EOD robot, UAV point to point application etc.

Feature:

* H.264 video compression;

* 17" Standard Samsung LCD screen;

* Built in 120G SSD memory;

* Support RS485 data signal and video signals transmission simultaneously;

* Advanced AES 128 user-defined password encryption for the security;

* NTSC/PAL adjustable video format;

* Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;

* Adjustable working frequency, bandwidth and etc;

* COFDM modulation, stable signal reception;

* 1080P/i & 720P/i video resolution.

* 20000mA internal battery

Specification:

Frequency 300-4400MHz (subdivided)
Memory 120G
LCD monitor 17inch
RF level Input -105dBm
RF interface N(F)
AV output BNC, HD output
Modulation COFDM
Power supply AC220V / DC12V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK, 16QAM
Data PTZ control Standard RS485
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard interval 1/32,1/16,1/8,1/4 (optional)
Video format PAL/NTSC
Video decoding H.264
Resolution 1080P/i, 720P/i
Lines of horizontal 625 or 525 Line
Audio output Analog stereo left and right channels
Data encryption AES128 user-defined password
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70° C
Built in battery 20000mA
Size 520*430*210mm
Weight 18kg
