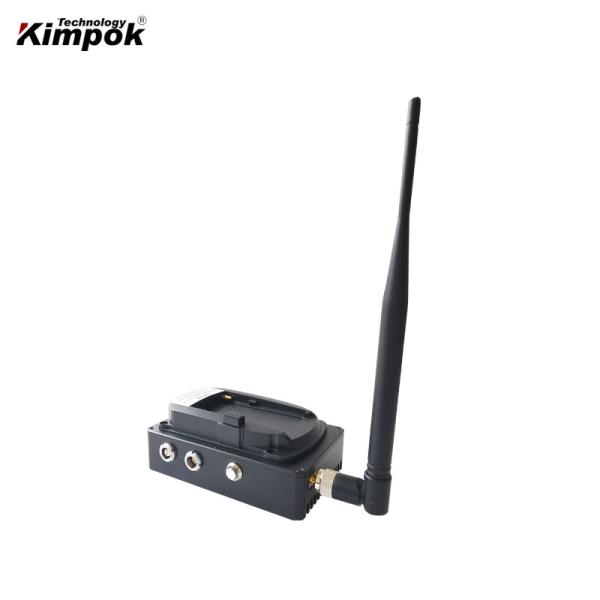

COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
COFDM 2K Modulation 10km UAV Video Transmitter HD Lightweight Wireless Data Link with 1W RF Power
Specifications
Place of Origin :
China
Brand Name :
Kimpok Technology
Model Number :
KP-HDT1W
Packaging Details :
International standard packing
Price :
Negotiation
Certification :
CE Cerfication
MOQ :
1 Piece
Payment Terms :
T/T, PayPal, Alipay
Supply Ability :
5000/month
Delivery Time :
3-7 work days
Product name :
Lightweight UAV video transmitter
Modulation :
COFDM 2K
Frequency band :
300-900Mhz or other frequency customized
Video Resolution :
1080P/60fps
Video Input :
HD-MI mini
Weight :
133g
Description
Product Description

Introduction of HD UAV Video Transmitter:

KP-HDT1W COFDM transmitter is a new designed wireless mobile video transmission system with great features and stable performance. The highly integrated transmission system provided superior performance in LOS (line-of-sight) and NLOS (non line-of-sight) condition.

KP-HDT1W video transmitter is designed for secure, high quality video transmission in multipath environments such as metropolitan areas. It's a high efficiency transmitter design with up to 1000 mW RF output power and features such as full frequency band channelization, MPEG4/H.264 compression, narrow-band and video data encryption.

KP-HDT1W transmitter is designed to withstand harsh environments and are ideal for law enforcement, surveillance, UAV, UGV, and other applications requiring high quality video transmission in a compact, rugged package.

UAV video TX Parameters:

Power
Working Voltage DC12V
Working Current 2A
RF
Working Frequency 160MHz~860MHz (other frequencies customized)
Output Power 30dBm
RF Bandwidth 2/4/6/8 MHz
Modulation COFDM
Serial Port
Data Half-duplex transparent data transmission(OSD UART)
Serial Port Config UART,RS232,RS485
System
Convolutional Encode ratio 1/2, 2/3, 3/4, 5/6, 7/8
Modulation QPSK/QAM16/QAM64
IFFT 2K/8K
Guard Interval 1/4, 1/8, 1/16, 1/32
HDMI
Version HDMI mini
Resolution Ratio Max 1080*1920/60P
Video Encoding H.264
CVBS
Video Encoding H.264
Video Input Format PAL/NTSC
Encryption
Encryption AES 256
Antenna
Omni Antenna SMA
Weight & Dimension
Weight 190g (included battery)
Dimension 100*60*16mm

Features of UAV video link:

  1. AES encrypted video transmission
  2. Aluminum alloy casing with good shock resistance
  3. External digital frequency controller for users easy adjust on the spot
  4. Mobile video transmission in NLOS(NO LINE OF SIGHT) condition and environment
  5. Work frequency adjustable in appointed frequency range
  6. COFDM modulation and H.264 compression for stable and high quality audio and video signal
  7. Support HDMI signal input, video and audio signal input simultaneous
  8. Multiple bandwidth adjustable 2/4/6/8 MHz
  9. Video input PAL/NTSC optional
  10. Parameters adjustable: there is a frequency modulator to connect with TX and RX to change the bandwidth, frequency and so on.

Receiver parameter:

Frequency

300-900Mhz (option) or other frequency customized

Bandwidth

2/3/4/5/6/7/8MHz (option)

RF input level

-94dBm~0dBm(8M)/-98dBm~0dBm(2M)

RF input impedance

50Ω

RF input type

N type

Modulation

COFDM

Constellation

QPSK,16QAM,64QAM(adjustable)

FEC

1/2,2/3,3/4,5/6,7/8(adjustable)

Carrier

2k

Guard Interval

1/32,1/16,1/8,1/4(adjustable)

Video coding

MPEG-4/H.264

Screen

4:3 16:9

Video resolution

1920*1080P/I@4Mhz

Audio output

Stereo unbalance 300/ 200mv

AV output

2 Audio output + 2 Video output; HDMI

Working voltage

AC220V/DC12V <1A

working temperature

-20℃~+50℃

Dimension

483*300*44mm

Weight

1.5kg
