Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-CM100H
Place of Origin :
China
Packaging Details :
International standard packing
Supply Ability :
5000/month
Price :
Negotiation
Certification :
CE Cerfication
MOQ :
1 Piece
Payment Terms :
T/T, PayPal, Alipay
Delivery Time :
3-7 work days
Modulation :
COFDM 2K QPSK
RF power output :
100W (adjustable)
Voltage :
DC11-14.5V
Current :
4.7A
Description

Description:

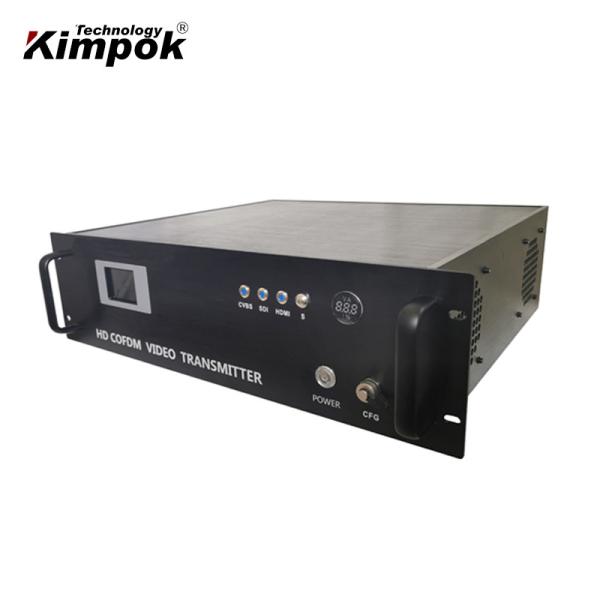

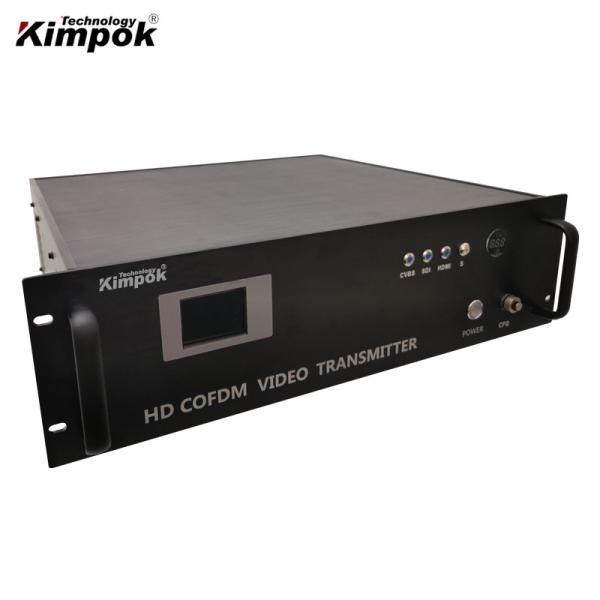

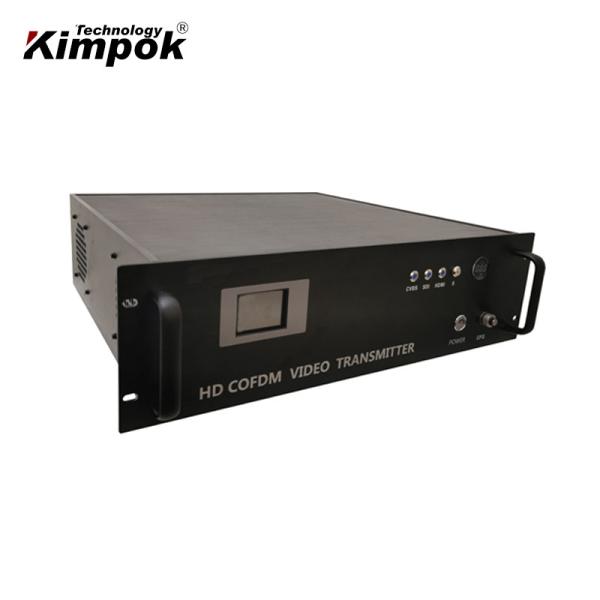

KP-CM100H is big RF power device special design for vehicle NLOS mobile digital image transmission. Using standard 4U dimension appearance that very conveniently for car, boat fixed installation. Support one channel image and two audio channels. Its large rf power that depends on its long range distance transmission.

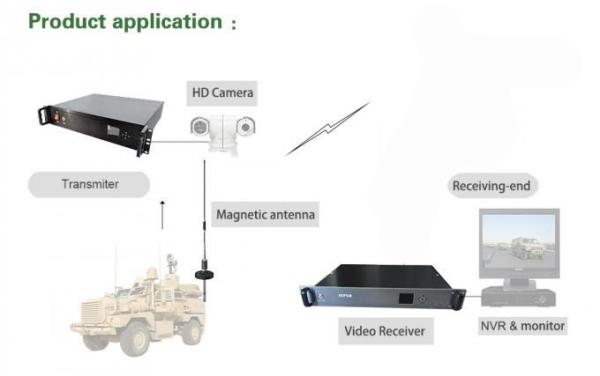

Suitable for Car to car, boat to boat, vehicle to fixed station, boat to fixed station, helicopter to fixed station Which can be also as a repeater, can up to 200km LOS from air and 50km NLOS distance if work with omni-directional antenna.

Features:

♦ COFDM modulation, Stable transmission
♦ H.264/H.265 video compression, DVD video quality
♦ Aluminum housing ,Strong casing with built-in two cooling fans
♦ Mobile and NLOS(Non line-of-sight) transmission
♦ Great security by encryption of AES 128 bits
♦ Low system latency
♦ Modular design, compact structure, OEM design
♦ Several wavebands available: VHF/L/ S
♦ Support two-way voice communication (option).

Transmitter parameter:

Frequency/AV

300-900Mhz option, other frequencies customizable

Frequency/DATA

433Mhz/868Mhz

Modulation

COFDM 2K QPSK

RF power output

100W (adjustable)

Voltage

DC11-14.5V

Current

4.7A

Video rate

15Mbps(MAX)

Constellation

QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz

FEC

1/2,2/3,3/4,5/6, 7/8 (optional)

Guard Interval

1/32,1/16,1/8,1/4 (optional)

Bandwidth

2/2.5/4/8M(adjustable)

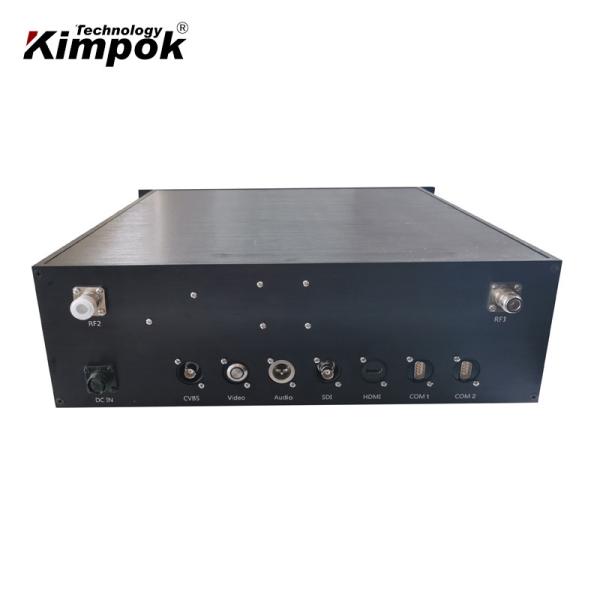

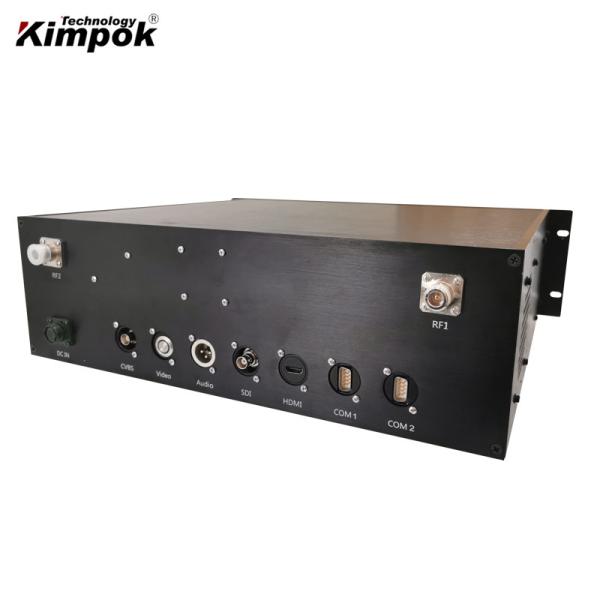

Video Interface

HDM-I;SDI; CVBS

Encryption

AES 128 bit / ALLTECH Basic scrambling

Flatness

Full band≤2dB ,8MHz≤0.5dB

Carrier

2K,8K

SHG

>52dBc

Video Signal

1Vp-p@75Ω,NTSC/PAL adaptive

CBER

<2.0E-4

Video Compression

H.265/H.264/MPEG4

Resolution

1280*720P / 1980*1080P

Video Input

1Vp-p@75Ω,NTSC/PAL (autoadaptation)

RF Interface

N(type)

Video decoding

ISO/IEC13818-2 MPEG-2MP@ML

OperatingTemperature

-25℃~55℃

Storage Temperature

-40℃~70℃

Size

430*420*89mm

Weight

16kg
