Specifications
Brand Name :
Kimpok Technology
Model Number :
KP-HDT2W-1
Place of Origin :
China
Packaging Details :
International standard packing
Price :
Negotiation
Certification :
CE Cerfication
MOQ :
1 Piece
Payment Terms :
T/T, PayPal, Alipay
Supply Ability :
5000/month
Delivery Time :
3-7 work days
Product name :
robot wireless video transmitter
DC Input :
DC11V~DC16V
Working Current :
≤1.1A DC12.5V
Modulation :
COFDM
RF bandwidth :
4/8MHz (adjustable)
Power output :
1-2W (adjustable)
SHG :
>52dBc
Encryption :
AES128/256bits
Description
Product Description

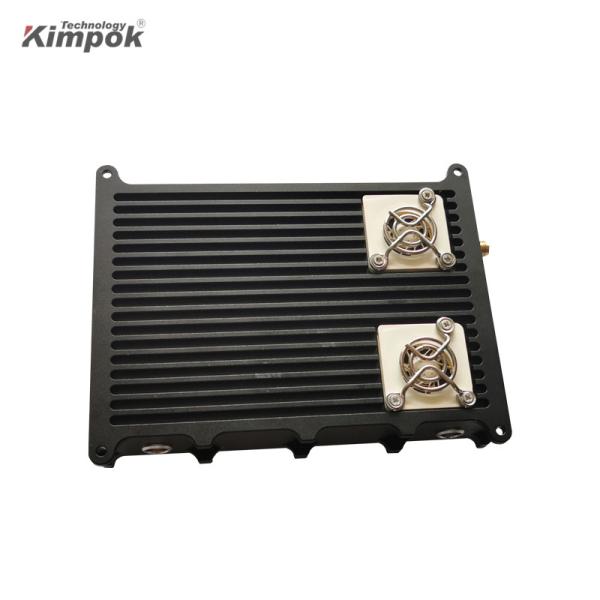

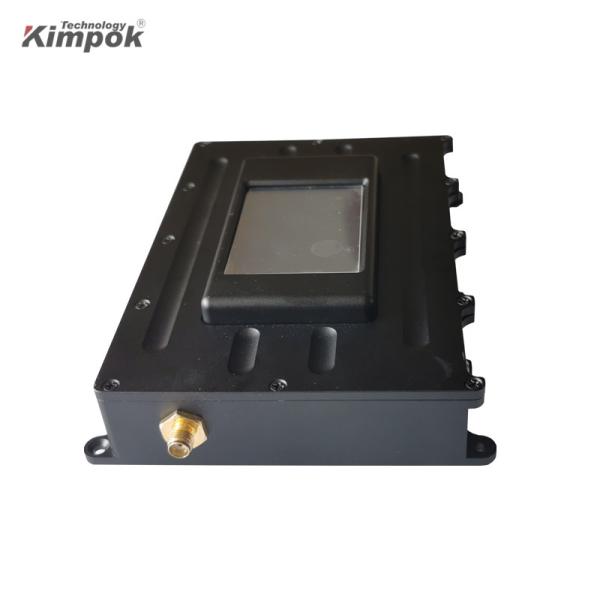

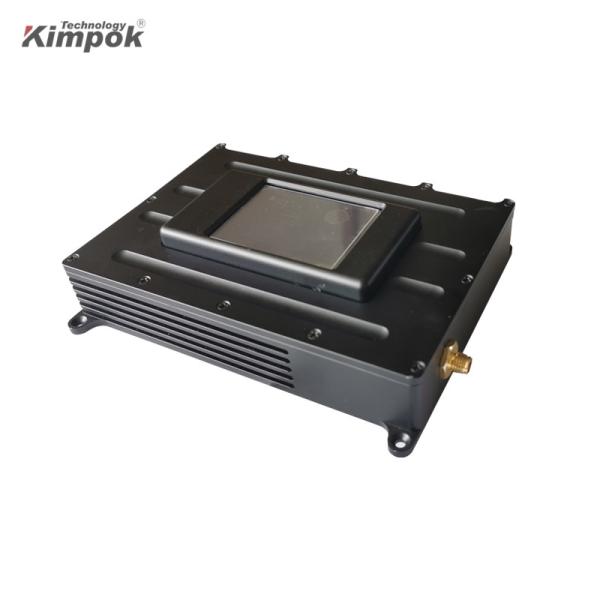

1080P HD robot transmitter KP-HDT2W is a powerful HD transmitting system, using the core of mobile communication technology COFDM(multi-carrier modulation technique),which can transmit good quality and stable full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. Support full HD 1080P H.265 encoding format and HDM-I/SDI two HD inputs(single selection) as well support stereo balance audio input and narrowband transmission system. Professional design for robot, UAV, manpack and so on.

Features:


1. Low delay, lightweight, live broadcast;
2. Support Full-HD quality image;
3. Support 1080i/1080P HD transmission;
4. COFDM modulation;
5. Built-in with HDM-I or HD-SDI interface(single selection);
6. Support composite standard video and balanced audio input;
7. All parameters can be adjusted by user;

Transmitter parameter:

Power section

DC Input

DC11V~DC16V

Working Current

≤1.1A DC12.5V

Transmitter section

Frequency range Output

250MHz-4400MHz, can be customized according to customer's request.

Modulation

COFDM

RF bandwidth

4/8MHz(adjustable)

Power output

1-2W(adjustable),in 1dB step

SHG

>52dBc

Encryption

AES128/256bits

Constellation

QPSK,16QAM,64QAM

FEC

1/2,2/3,3/4,5/6, 7/8

Guard Interval

1/32,1/16,1/8,1/4

Carrier

2K

Flatness

Full band≤2dB,8MHz≤0.5dB

CNR(weighting)

58dB

Sloping field SNR(unweighted)

≥50dB

Analog Audio

Balanced audio input range

Vmax=±15V

Unbalanced audio input range

Vmax=3Vpp

HD interface

SDI/HDM-I(single selection)

Encryption

AES 128/265 bit / ALLTECH Basic scrambling

Standard

SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M

Input range

800±80(mV)

HDCP protocol

Yes

Encoding support

AV rate

64,96,112,128,160,192,224,256,320,384Kbps(adjustable)

Audio encoding mode

MPEG1 Layer2

CBER

<2.0E-4

Video resolution

Maximum 1920×1080P/I@ 60P

Video coding

H.265 / H.264

Video rate

500kbps-16.68Mbps(autoadaptation)

Format

YCbCr4:2:2

OperatingTemperature

-25℃~55℃

Storage Temperature

-40℃~70℃

Distance

20-60km LOS distance(on air) 1-3km NLOS distance(Ground to ground)

Appearance characteristics

Dimension

167*90*25mm

Weight

515g
