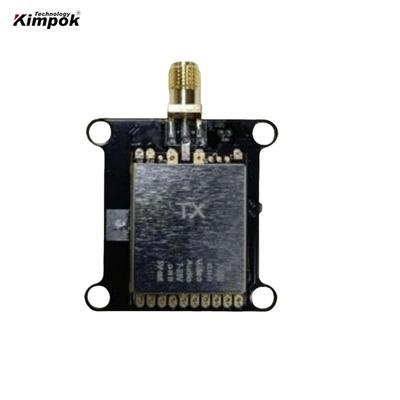

1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels
1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels
1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels
1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels
1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels
1.2Ghz 1W FPV Video Transmitter 10-20km Range 8 Channels
Specifications
Brand Name :
Kimpok
Model Number :
KP-12VTX1000M
Certification :
CE certificate
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,Paypal,L/C
Supply Ability :
5000pcs/Month
Delivery Time :
3-7 working days
Packaging Details :
International standard packing
Description
10~20km 1.2G FPV Wireless Video Transmitter Module
1.2Ghz 1W VTX Long Range Digital Transmission
Product Overview
The KP-12VTX1000M is a high-performance 1.2Ghz FPV wireless video transmitter module featuring digital transmission technology with a range of 10-20km. This 1W power module offers stable, long-range video transmission with 8 selectable channels.
Key Features
  • Long-range digital transmission (10-20km)
  • 1.2Ghz frequency with 1W RF power output
  • 8 selectable channels for flexible operation
  • FM modulation type with PLL frequency control
  • Compact design (45.5×35.8×8.4mm) and lightweight (10g)
  • Wide operating voltage range (DC 7-36V)
  • Includes comprehensive protection features
Technical Specifications
Item Specification
Frequency band 1120-1360Mhz
Channel 8 channels
Channel Frequency 1120/1160/1200/1240/1280/1320/1360/1258(MHz)
RF power 0.1mW / 25mW / 200mW / 1000mW
Modulation type FM
Frequency control PLL
Operating Temperature -10℃~+60℃
Input power supply DC 7-36V
Dimensions 45.5mm(L)×35.8mm(W)×8.4mm(H)
Weight 10g
Product Information
Brand: Kimpok
Model Number: KP-12VTX1000M
Certification: CE Certification
Document: 1.2G 2W VTX user manual.pdf
Installation & Usage Notes
  • Maintain adequate space around the module for proper cooling and airflow
  • Verify correct voltage range and polarity before powering on
  • Always install antenna at RF output terminal before operation
  • Refer to included manual for proper wiring and setup
Package Contents
  • VTX module (1pc)
  • "Y" type antenna (1pc)
  • 7P 1.25 single head cable (1pc)
Ordering Information
Minimum Order Quantity: 1 Piece
Packaging: International standard packing
Delivery Time: 3-7 work days
Payment Terms: T/T, PayPal, Alipay
Supply Ability: 5000 pieces/month
