4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
4 Channel COFDM HD Video Transmitter with 17 Inch Monitor 1080P
Specifications
Brand Name :
Kimpok
Model Number :
KP-DRB04
Certification :
CE certificate
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C,T/T,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
International standard packing
Description
Detail Information
Place of Origin:
China
Brand Name:
Kimpok Technology
Certification:
CE Cerfication
Model Number:
KP-DRB04
Modulation:
COFDM 2K
Channel:
4 Channels
Video Resolution:
1080P/720P
Frequency:
300MHz-4400MHz (subdivided)
Encryption:
AES User-defined Password
Monitor:
17 Inch
Highlight:

cofdm video receiver

,

cofdm video transmitter

,

cofdm receiver

Trading Information
Minimum Order Quantity:
1 Piece
Price:
Negotiation
Packaging Details:
International standard packing
Delivery Time:
3-7 work days
Payment Terms:
T/T, PayPal, Alipay
Supply Ability:
5000/month
Product Description

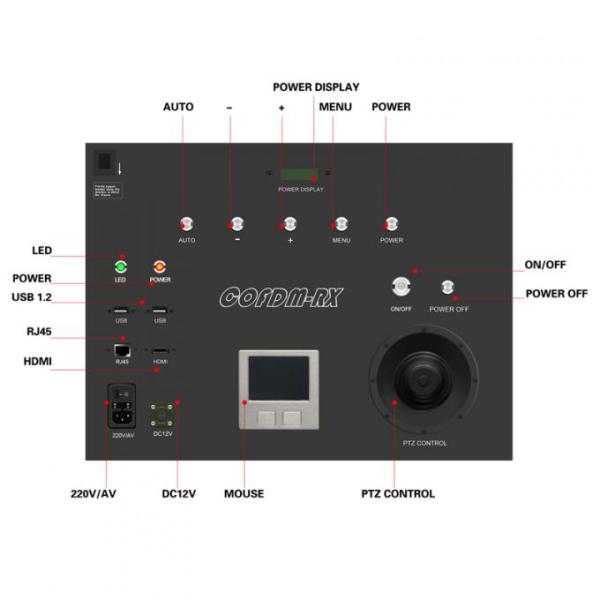

4 Channels COFDM HD Video Transmitter Outdoor Wireless AV Receiver Built-in 17 inch Monitor


Feature:


1) MPEG-2 video compression, DVD video quality;
2) Modular design and highly integrated
3) 17" Standard samsung LCD screen;
4) Built in with 60G SSD memory;
5) Support 4 channels 48 hours continuously recording;
6) Can support RS485/RS232 and av signals transmission simultaneously;
7) Nobody can steal your video and audio because of its data encryption.
8) NTSC/PAL automatically adapt, support user adjustable;
9) Supports high-speed mobile NLOS ( Non Light Of Sight ) reception;
10) Adjustable working frequency,bandwidth,RF power and etc.
11) COFDM modulation, Stable signal reception;
12) Can custom made with HDM-I/SDI hd interface output;

Specification:


Frequency
300-800MHz/1.2G/2.4G/5.8GHz (optional)
Memory
1TB
LCD monitor
17inch
RF Level Input
-105dBm~-20dBm
RF Interface
N(F)
AV output
HDM-I; CVBS
Modulation
COFDM
Power supply
AC220V / DC12V
Bandwidth
2/2.5/4/8MHz (adjustable)
Constellation
QPSK,16QAM
Data control interface
Standard RS232/RS485/TTL level,9600,8,N,1
RS232/RS485 data interface
Standard RS232/RS485 level, support 1200~115200bps
FEC
1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval
1/32,1/16,1/8,1/4 (optional)
Video Output
1 line PAL/NTSC analog video
Video Decoding
ISO/IEC13818-2 MPEG-2MP@ML
Resolution
1080P
Lines of horizontal
625 or 525 Line
Audio Output
Analog stereo left and right channels
Data encryption
AES 128/256 bits
Voltage
AC220V±20V, DC14V~DC16V
Work environment
-30~70°
Built in Battery
30000mA, support 4ch 48 hours recording
Size
520*430*210mm
Weight
22kg
