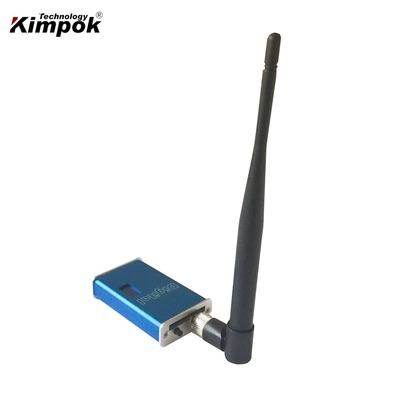

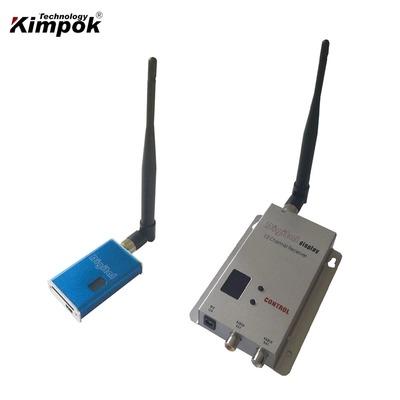

1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
1.5Ghz 5W FPV VTX Mini Wireless Video Transmitter for RC Drone
Specifications
Brand Name :
Kimpok
Model Number :
KP-MN5A
Certification :
CE certification
Place of Origin :
Shenzhen, China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T,L/C,Paypl
Supply Ability :
5000pcs/month
Delivery Time :
3-7 working days
Packaging Details :
International standard packing
Description
Detail Information(1.5Ghz 5W FPV VTX Mini 1.5G 1.6G Wireless Video Transmitter for RC Racing Drone)
Place of Origin:
China
Brand Name:
Kimpok Technology
Certification:
CE Cerfication
Model Number:
KP-MN5A
Frequency:
1.5Ghz
RF Power:
5000mW
Voltage:
DC 12V
Channel:
12 Channels
Dimensions:
73*41*14mm
Weight:
90g
Highlight:
1.6G FPV VTX RC Racing Drone Wireless Video Transmitter 1.5Ghz FPV VTX
Trading Information(1.5Ghz 5W FPV VTX Mini 1.5G 1.6G Wireless Video Transmitter for RC Racing Drone)
Minimum Order Quantity:
1 Piece
Price:
Negotiation
Packaging Details:
International standard packing
Delivery Time:
3-7 work days
Payment Terms:
T/T, PayPal, Alipay
Supply Ability:
5000/month
Product Description

1.5Ghz 5W FPV VTX Mini 1.4G 1.5G 1.6G Wireless Video Transmitter for RC Racing Drone 12 Channels

1.4Ghz 1.5Ghz 1.6Ghz 5W FPV Drone VTX Specification:

Voltage

DC 12V

Current

600mA

Frequency

1.4G/1.5G/1.6G

Number of channels

12CHs

Transmit Power

1500mW

Video Output

1 Vp-p(FM)

Audio Output

1 Vp-p(FM)

Audio Carrier Ware

5.5M 6.0M

Temperature

-10℃ ~ +50℃

Transmitter Weight

82g

Dimensions (L * W * H)

73*41*14mm

Installing:

  1. The line has 5 plugs for connecting transmitter, camera and power supply
    One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
    Red plug connect DC 12V/1000mA, can also connect battery
    White and yellow plug connect to camera's audio and video apart
    And black one connects camera's power input jack
  2. Push the control button, can change the channel of receiver
    Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
    Then push it again, can replay
    The function can be able to lock channel, so as to avoid mistaking operation
  3. Set the same channel with transmitter and receiver
