3.3GHz 10km Long-Range 64CH Analog Video Transmitter FPV VTX with Power-Adjustable Output
3.3GHz 10km Long-Range 64CH Analog Video Transmitter FPV VTX with Power-Adjustable Output
3.3GHz 10km Long-Range 64CH Analog Video Transmitter FPV VTX with Power-Adjustable Output
3.3GHz 10km Long-Range 64CH Analog Video Transmitter FPV VTX with Power-Adjustable Output
3.3GHz 10km Long-Range 64CH Analog Video Transmitter FPV VTX with Power-Adjustable Output
3.3GHz 10km Long-Range 64CH Analog Video Transmitter FPV VTX with Power-Adjustable Output
Specifications
Brand Name :
Kimpok
Model Number :
ALV3303AC
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
3,000 pieces per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Description

3.3GHz 3W ALV3303AC Video Transmitter 10km Long-Range, 64CH, Power-Adjustable


Input voltage: 7-26V
Extra Features: IRC 3000mW
Power Supply: 5v camera @ under 500mA max.
Output Power: 1000mW/3000mW
Microphone: Not supported
Antenna Connector: SMA
Cable Connector: JST, 6Pin
Dimensions: 50*36*16mm, 30.*44.5mm (hole)
Weight: 40.4g
Kit Contents: 1x VTX, 1x cable, 1x ANT

Key Features(3.3G 3W ALV3303AC Video Transmitter 10km Ultra Long Range VTX 64CH Power Switchable FPV Racing Quadrone):
. Support IRC data
· 1000/3000mWpower switchable

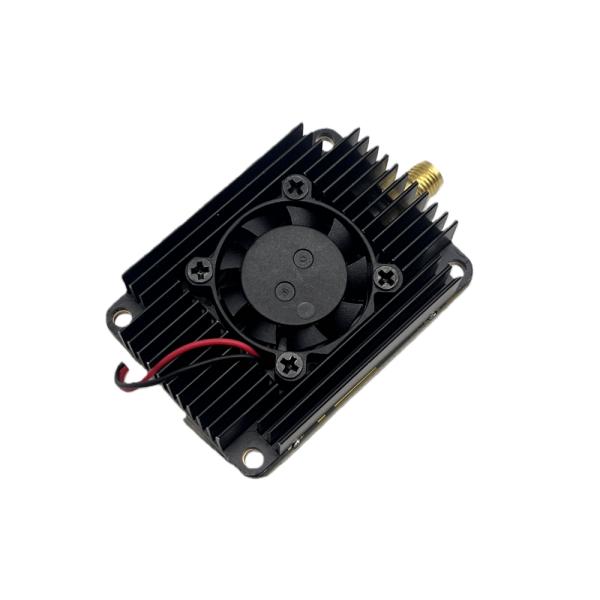

. Built-in cooling fan
. OSD configuration using IRC
· 7-26Vinput with 5V output

Button Control Channel Select Mode
One button is used to set channel, band and power.
Channel Select
Short press to change 8 channels .
Band Select
Press the button for 2 seconds, LED will flicker anletter, then short press to change 8 band from A-b-C-d-E-F-G-H
Power Select
Press the button for 4 seconds, LED will flicker annumber quickly, then short press to change 2
powerlevels,1 is 2000mW, 2 is 6000mW
Press the button for 5 seconds until the LED displays P, at which point 0dBm . Press and hold for 5 seconds to exit P mode .

Slow Power On
The VTX will wait for 3 seconds before turning on power amplifier.
The 3 seconds slow power on will protect the VTX from being burned by maximum instantaneous power.

Pit Mode
The VTX is fully accessible via IRC data .
It supports Pit Mode .
