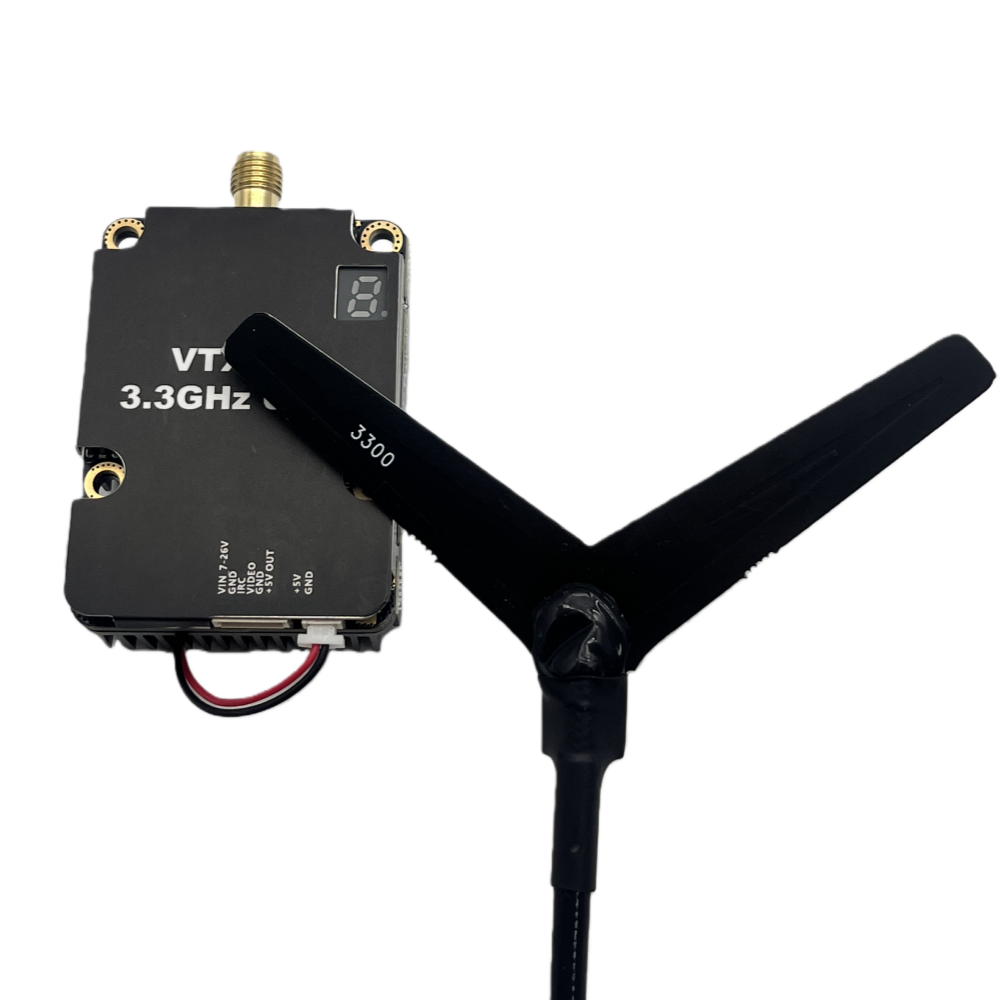

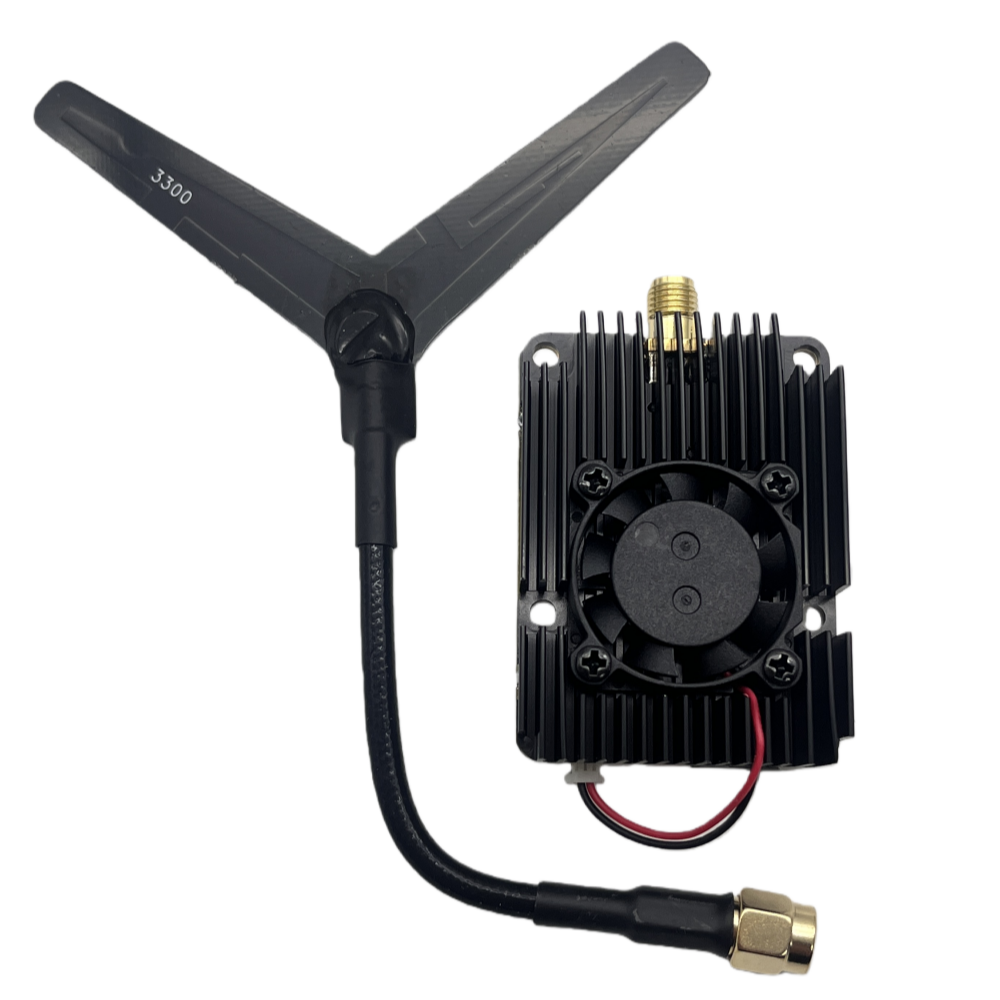

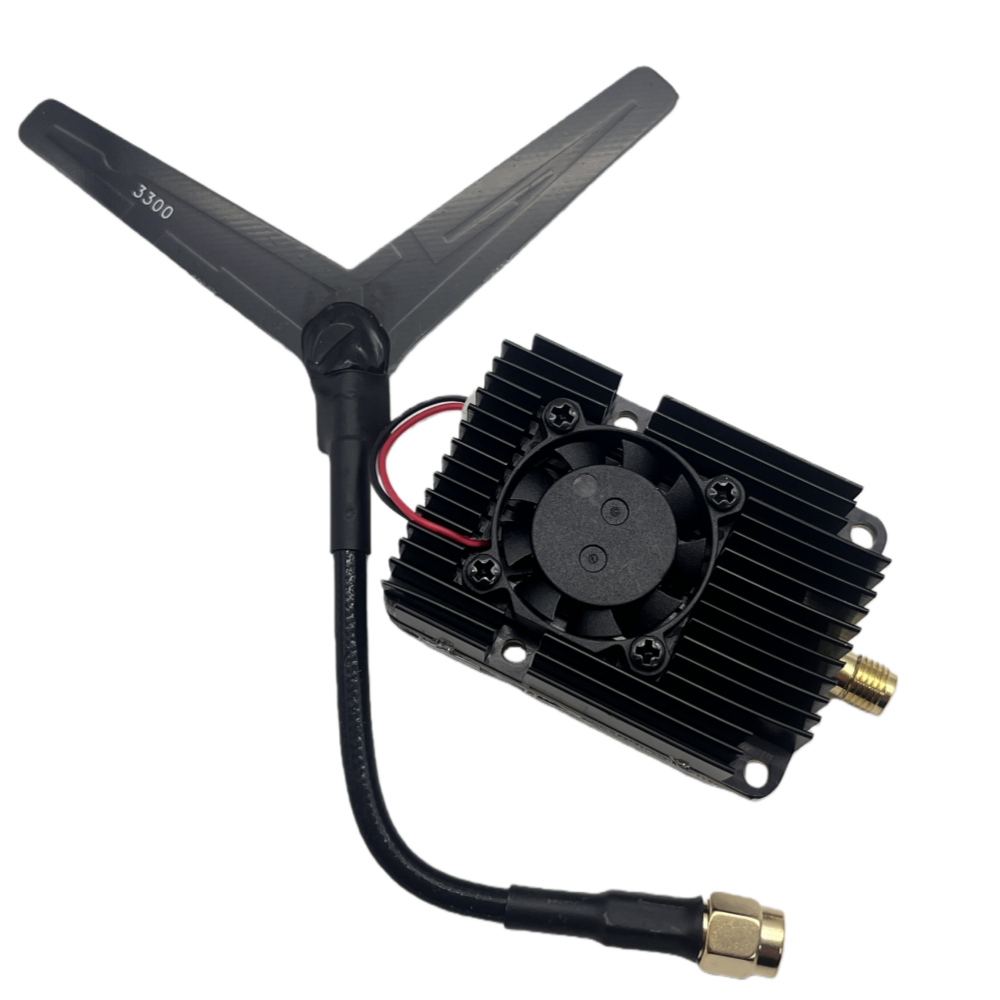

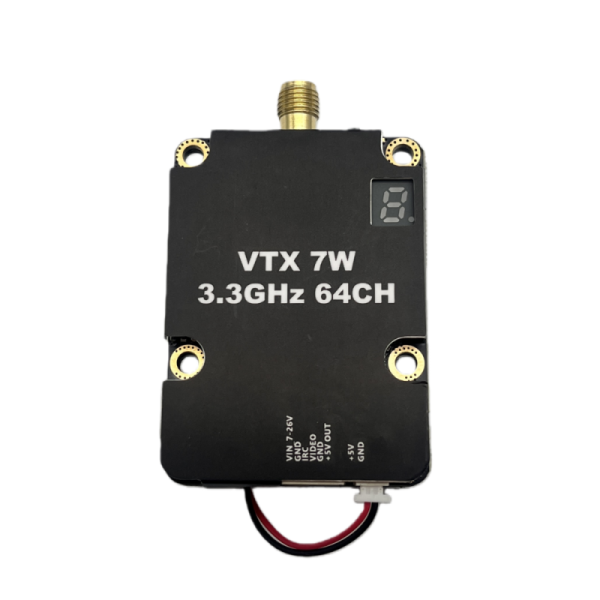

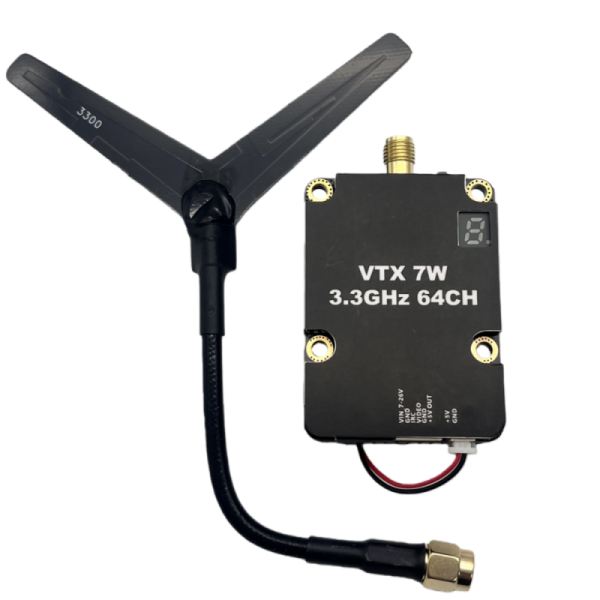

3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable
Specifications
Frequency Range: :
3060M-3500M
Frequency: :
3.3G
Input Voltage: :
7-26V
Weight: :
40.4g
Cooling System: :

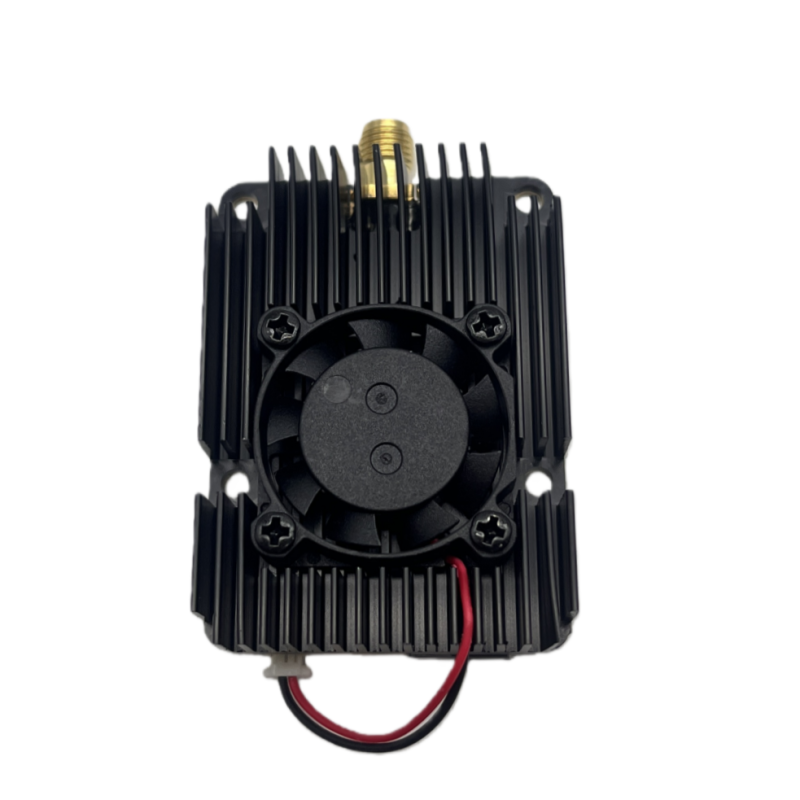

Aluminum Alloy Housing plus Built-in Cooling Fan
Output Power: :
2000mW/7000mW
Dimension: :
50x36x16mm
Brand Name :
Kimpok Technology
Model Number :
ALV3307AC
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
1 pieces
Price :
Negotiation
Payment Terms :
T/T, Western Union, PayPal
Supply Ability :
50000pcs/month
Delivery Time :
3-7 work days
Packaging Details :
International standard packing
Transmitter Type: :
Analog Video Transmitter
Content Kits :
1xVTX, 1x Antenna, 1xCable
Channel: :
64CH
Description

Parameter(3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable)
Input voltage: 7-26V
Extra Features: IRC 7000mW
Power Supply: 5v camera @ under 500mA max.
Output Power: 2000mW/7000mW
Microphone: Not supported
Antenna Connector: SMA
Cable Connector: JST, 6Pin
Dimensions: 50*36*16mm, 30.*44.5mm (hole)
Weight: 40.4g
Kit Contents: 1x VTX, 1x cable, 1x ANT
Key Features(3.3G 7W ALV3307AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable):
. Support IRC data
· 2000/7000mWpower switchable
. Built-in cooling fan
. OSD configuration using IRC
· 7-26Vinput with 5V output
Button Control Channel Select Mode
One button is used to set channel, band and power.
Channel Select
Short press to change 8 channels .
Band Select
Press the button for 2 seconds, LED will flicker anletter, then short press to change 8 band from A-b-C-d-E-F-G-H
Power Select
Press the button for 4 seconds, LED will flicker annumber quickly, then short press to change 2
powerlevels,1 is 2000mW, 2 is 6000mW
Press the button for 5 seconds until the LED displays P, at which point 0dBm . Press and hold for 5 seconds to exit P mode .
Slow Power On
The VTX will wait for 3 seconds before turning on power amplifier.
The 3 seconds slow power on will protect the VTX from being burned by maximum instantaneous power.
Pit Mode
The VTX is fully accessible via IRC data .
It supports Pit Mode .
3060-3500MHZ(64CH)
CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
A 3360 3380 3400 3420 3440 3460 3480 3500
b 3200 3220 3240 3260 3280 3300 3320 3340
C 3330 3350 3370 3390 3410 3430 3450 3470
d 3170 3190 3210 3230 3250 3270 3290 3310
E 3320 3345 3370 3395 3420 3445 3470 3495
F 3310 3330 3355 3380 3405 3430 3455 3480
G 3220 3240 3260 3280 3300 3320 3340 3360
H 3060 3080 3100 3120 3140 3160 3180 3200
HOT CAUTION
BE CAREFUL NOT TO BURN YOUR FINGERS
PLUG THE ANTENNA BEFORE POWERING THE VTX
NOT TO REMOVE THE COOLING FAN
