3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output
3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output
3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output
3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output
3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output
3.3GHz 5W 64CH FPV VTX Wireless Video Transmitter with Adjustable Power Output
Specifications
Brand Name :
Kimpok
Model Number :
ALV3305AC
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
3,000 pieces per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Type :
Video transmitter
Power :
5W
Antenna Connector :
SMA
Channel :
64 Channel
Input Voltage :
7-26V
Frequency :
3.3G
Description

3.3GHz 5W ALV3305AC Long-Range 64CH Wireless Video Transmitter with Adjustable Power Output

Parameter(3.3G 5W ALV3305AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable)
Input voltage: 7-26V
Extra Features: IRC 5000mW
Power Supply: 5v camera @ under 500mA max.
Output Power: 2000mW/5000mW
Microphone: Not supported
Antenna Connector: SMA
Cable Connector: JST, 6Pin
Dimensions: 50*36*16mm, 30.*44.5mm (hole)
Weight: 40.4g

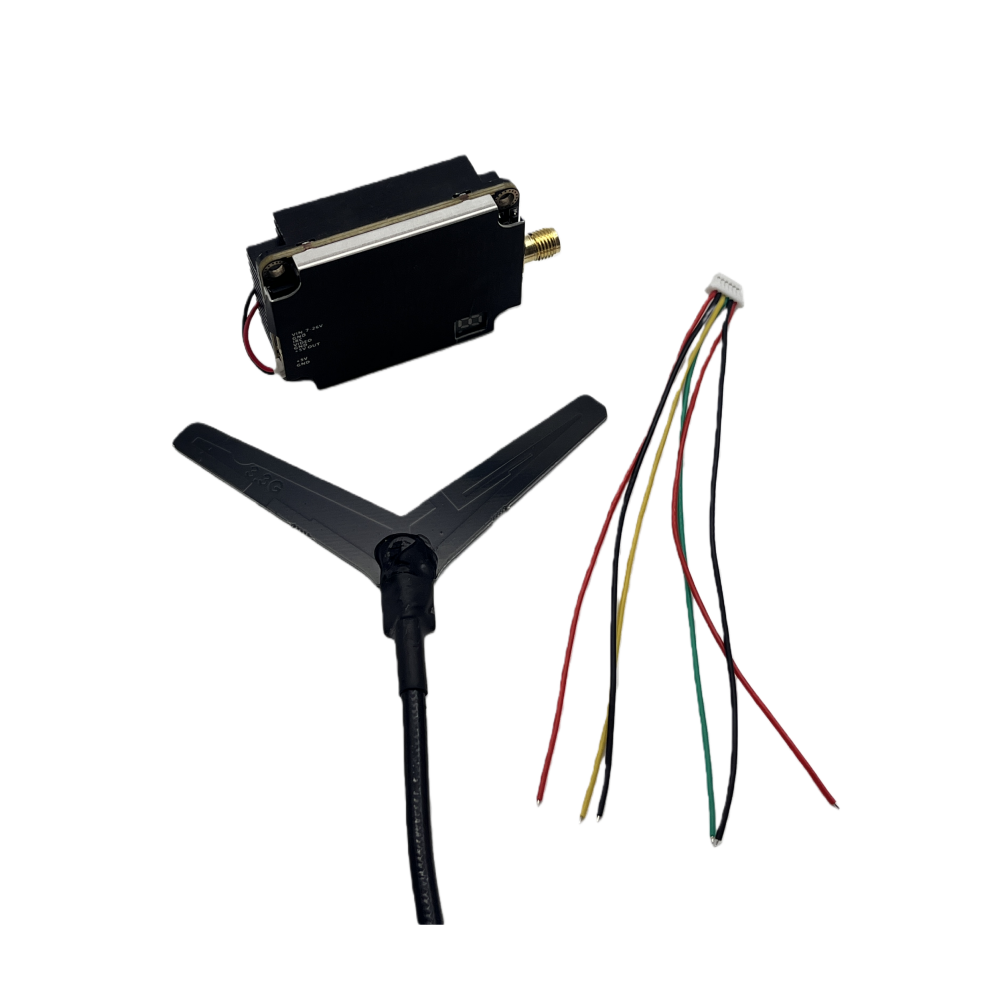

Kit Contents: 1x VTX, 1x cable, 1x ANT

Key Features(3.3G 5W ALV3305AC Video Transmitter Ultra Long Range VTX 64CH Power Switchable):
. Support IRC data
· 2000/5000mWpower switchable

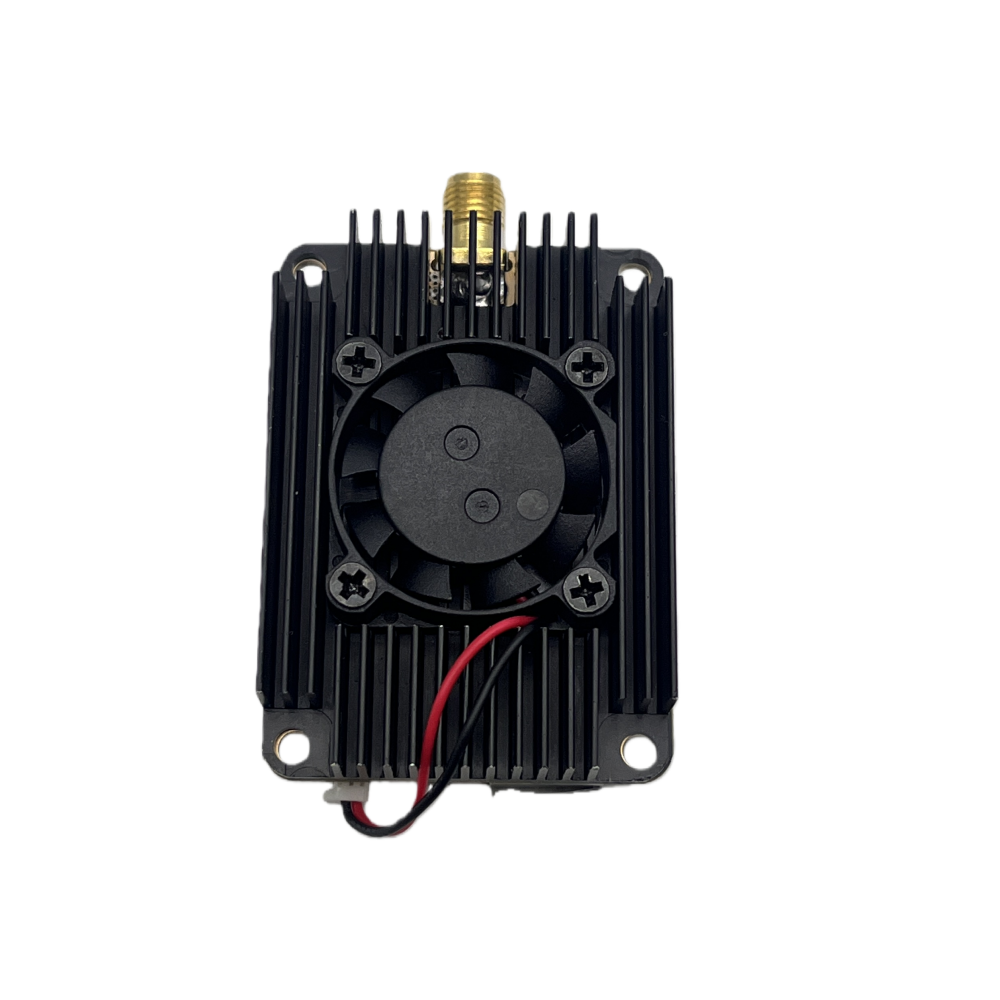

. Built-in cooling fan
. OSD configuration using IRC
· 7-26Vinput with 5V output

Button Control Channel Select Mode
One button is used to set channel, band and power.
Channel Select
Short press to change 8 channels .
Band Select
Press the button for 2 seconds, LED will flicker anletter, then short press to change 8 band from A-b-C-d-E-F-G-H
Power Select
Press the button for 4 seconds, LED will flicker annumber quickly, then short press to change 2
powerlevels,1 is 2000mW, 2 is 6000mW
Press the button for 5 seconds until the LED displays P, at which point 0dBm . Press and hold for 5 seconds to exit P mode .

Slow Power On
The VTX will wait for 3 seconds before turning on power amplifier.
The 3 seconds slow power on will protect the VTX from being burned by maximum instantaneous power.

Pit Mode
The VTX is fully accessible via IRC data .
It supports Pit Mode .
