FPV Thermal Imaging Camera with 256 x 192 Resolution VOx Uncooled Detector and 15 Pseudo Color Modes
FPV Thermal Imaging Camera with 256 x 192 Resolution VOx Uncooled Detector and 15 Pseudo Color Modes
FPV Thermal Imaging Camera with 256 x 192 Resolution VOx Uncooled Detector and 15 Pseudo Color Modes
FPV Thermal Imaging Camera with 256 x 192 Resolution VOx Uncooled Detector and 15 Pseudo Color Modes
FPV Thermal Imaging Camera with 256 x 192 Resolution VOx Uncooled Detector and 15 Pseudo Color Modes
FPV Thermal Imaging Camera with 256 x 192 Resolution VOx Uncooled Detector and 15 Pseudo Color Modes
Specifications
Brand Name :
Kimpok
Model Number :
KP-MINI256-9
Certification :
CE Cerfication
Place of Origin :
China
MOQ :
10
Price :
Negotiation
Payment Terms :
L/C,Western Union,Paypal
Supply Ability :
1,000 pieces per month
Delivery Time :
5-7 work days
Packaging Details :
International Standard Packing
Resolution :
256 × 192
Pixel Pitch :
12 μm
Response Band :
8 ~ 14 μm
Lens Parameters :
9.7 mm
Weight :
23g
Dimensions :
221 mm × 21 mm × 39 mm
Description

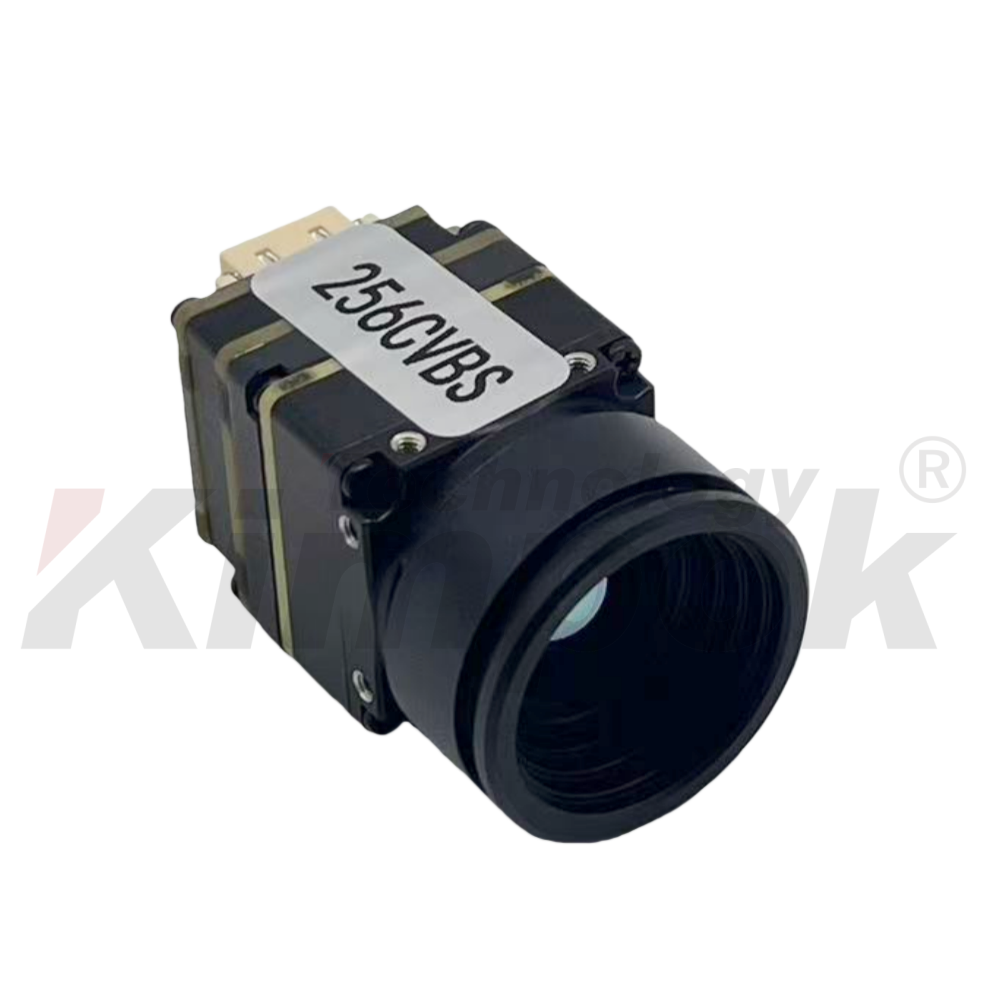

Kimpok FPV Thermal Imaging Camera KP-MINI256-9 VOx Uncooled Detector Low Power for Intelligent Equipment

Product description:

The KP-MINI256-9 FPV Thermal Imaging Camera is a miniaturized, integrated product designed for easy integration into various types of equipment, such as drone pods, robot gimbals, individual helmets, and other intelligent devices


High-Resolution VOx Thermal Core:Features a 256 x 192 resolution Vanadium Oxide (VOx) uncooled detector with12um pixel pitch for clear thermal imagery


Ultra-Compact Low Power:Miniaturized design with a weight of ≤ 23g and low power consumption of ≤0.8w, perfect for easy integration into FPV and smart devices.


Wide Operating Temperature:Built for extreme use, operating reliably from -40℃up to 80℃


Versatile Image Control:Offers 15 Pseudo Color Modes, electronic amplification up to x8, and support for image detail enhancement and bad point correction


Easy System Integration:Supports analog signal output via CVBS interface and accepts a wide DC power input of 5V-17V
