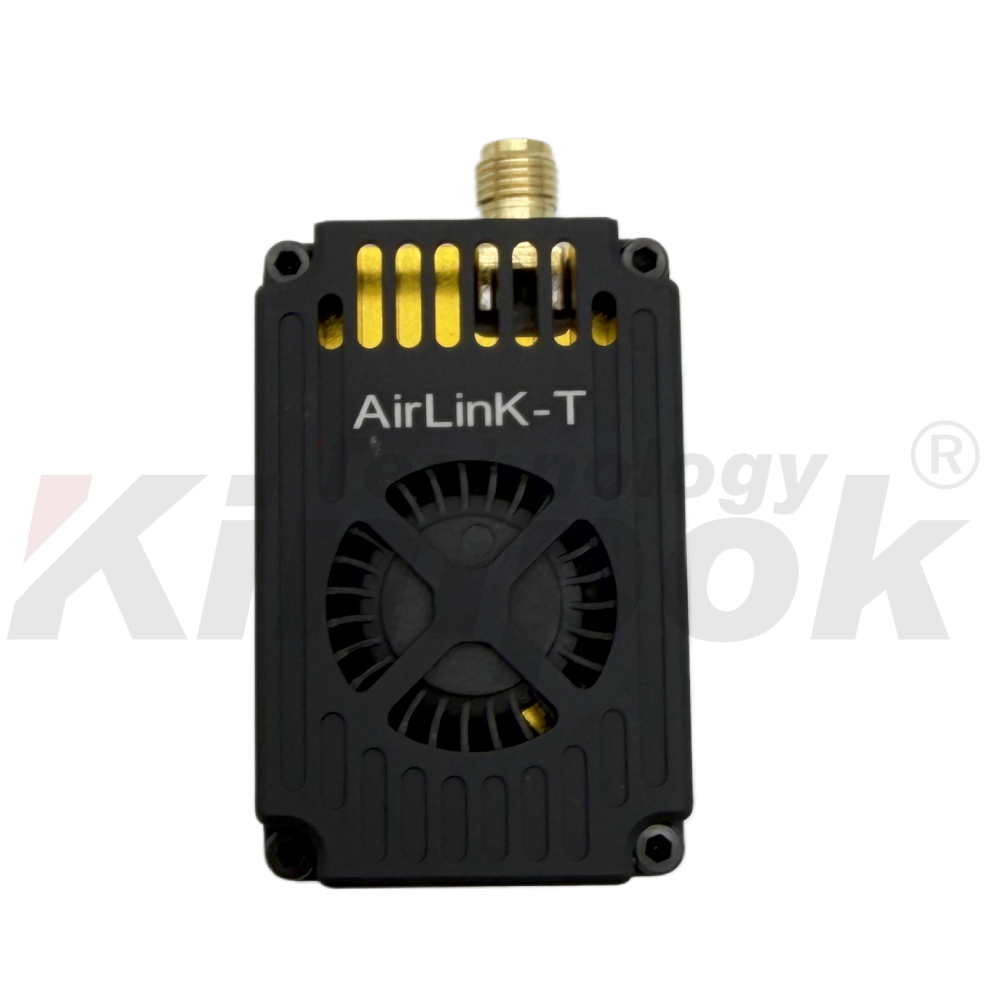

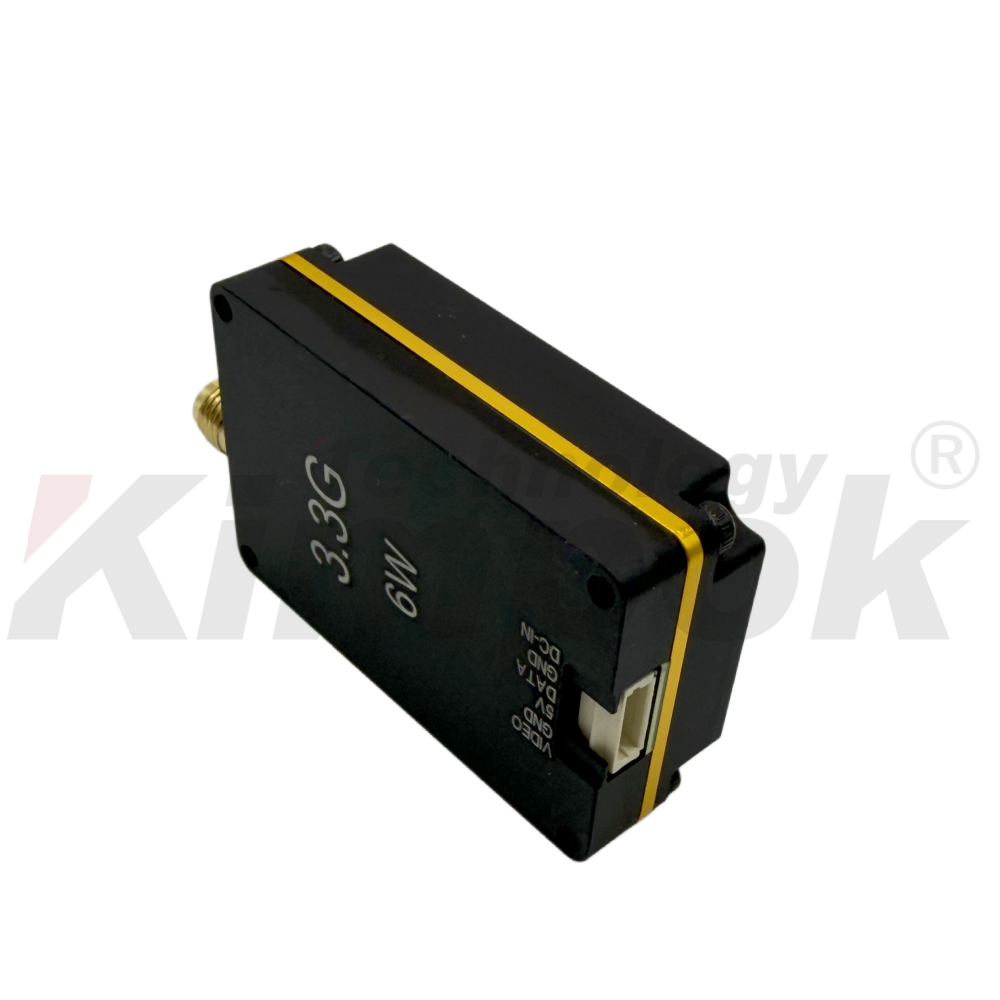

Kimpok-3.3GHz 6W Wireless Data Transmission Module 64CH High Power Analog Video Transmitter VTX
Kimpok-3.3GHz 6W Wireless Data Transmission Module 64CH High Power Analog Video Transmitter VTX
Kimpok-3.3GHz 6W Wireless Data Transmission Module 64CH High Power Analog Video Transmitter VTX
Kimpok-3.3GHz 6W Wireless Data Transmission Module 64CH High Power Analog Video Transmitter VTX
Kimpok-3.3GHz 6W Wireless Data Transmission Module 64CH High Power Analog Video Transmitter VTX
Kimpok-3.3GHz 6W Wireless Data Transmission Module 64CH High Power Analog Video Transmitter VTX
Specifications
Model Number :
ALT3306
Channel :
64 CH
MOQ :
1
Delivery Time :
5-7 work days
Power Supply :
DC 7-30V (2-8S)
Payment Terms :
L/C,T/T,Paypal
Price :
Negotiation
Certification :
CE Cerfication
Frequency :
3060-3495MHz
Supply Ability :
3,0000 pieces per month
Brand Name :
Kimpok
Type :
FPV Video Transmitter
Place of Origin :
China
Output Power :
PIT/25mW/200mW/1W/6W
Packaging Details :
International Standard Packing
Description

3.3GHz 6W Wireless Data Transmission Module 64CH High Power Analog Video Transmitter VTX


Product Description

3.3G FPV VTX 6W High Power Drone Video Transmitter 64CH FPV RC Accessories 3.3Ghz VTX Module


I.Features

- Designed for long-range flights, up to 6W transmitting power, and provide multi-level adjustment.
- Efficient PA and power calibration to ensure power consistency across all channels.
- Customized digital PLL circuit, chip level integration, no frequency drift.
- Aluminum alloy three-layer shell structure and large centrifugal fan provide sufficient heat dissipation to ensure stable output of transmitting power.

II.General Characteristics
Frequency band: 3060-3495MHz
Frequency precision:±200KHz (Typ.)
Channel:64 CH
Output power:PIT/25mW/200mW/1W/6W
Modulation type: FM
Power Supply:DC 7-30V (2-8S)
Frequency control: PLL
Video input level:1V±0.2Vp-p (typ.)
Control Protocol: IRC Tramp
S/N(For ±3MHz):>55dBc
Antenna:SMA 50 Ohms
Operating Temperature: -10℃~+70℃
Dimension:44*28.6*14.7mm
Weight:25.3g


III.Frequency Table



IV.Settings
Controlled using a single button, the button integrates RGB lighting, blue for band, red for channel, and green for power level.

When there is no operation, the RGB LED blinks cyclically, the number of times the RGB blinks
represents the current VTX status (when the green LED is always on, the VTX enters PITMODE).
Long press the button to enter VTX setting, at this time the RGB lights are lit alternately,release the button under the corresponding color light to enter the corresponding function setting. At this time, short press the button to adjust the value.

For setup via the flight controller, connect the DATA pin and use the IRC Trump protocol.
