Specifications
Brand Name :
Kimpok
Model Number :
KP-TS5000
Certification :
EC/FCC/ROHS
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
1000pcs per month
Delivery Time :
3-7 days
Packaging Details :
export packing standard
Frequency :
300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
RF output power :
2-5W (adjustable)
Power supply :
DC 12V
AV interface :
BNC
Video Format :
PAL/NTSC(self-adaption)
Built-in battery :
2300mA, 3Hrs working time
Description

Military Manpack COFDM Video Transmitter Long Range Wireless AV Sender AES 265 bit Encryption

Long Range Wireless Transmitter:

The military backpack system KP-TS5000 is special for man-portable transmitter enter into the area of the incident to gather information and signal transmission under the condition of heavy obstacles, such as many building barriers, severe electromagnetic interference, remote mountain town or other harsh environments.

It also can be used on UAV, EOD robot, fire fighting robot.


Features:

  1. 2-5Watt RF power adjustable;
  2. Built-in with battery 2300mA ;
  3. More intuitive and natural with a coulobmeter;
  4. Popular with users, and was applied to any AV projects.

Tech Specification:

Transmitter parameters:

Frequency 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
RF output Power 2-5Watt(adjustable)
Voltage DC12V
Modulation COFDM
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
Bandwidth 1.25/2.5/6/7/8MHz(optional)
Transfer rate 2/4/6/8Mbps(optional)
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Video Input 1 line PAL/NTSC analog video
Audio Input Analog stereo left and right channels
Video Compression H.264
Data encryption AES 265 bit / ALLTECH Basic scrambling
Flatness

≤2dB(within full frequency range) ,

≤0.5dB (within 8MHz)
Carrier 2K,8K
Video Signal 1Vp-p@75Ω,NTSC/PAL adaptive
Resolution 720×576(PAL) , 720×480(NTSC)
RF Interface N(F)
Video Format PAL/NTSC(self-adaption)
AV Interface BNC
Case Material Aluminum alloy, waterproof
Built-in battery 2300mA, 3Hrs
Work environment -30~70°
Distance 1-3km NLOS; 100km LOS from air to ground
Size 180*100*60mm
Weight 1444g(net weight)

Receiver parameters:

Frequency 300-800MHz(adjustable),1.2G/2.4G/5.8GHz(customized)
Memory 60G, 1way 48hours recording
LCD monitor 7inch or 9.5 inch
Receive sensitivity < -105dBm
RF Interface N(F)
Modulation COFDM
Power supply AC220V
Bandwidth 2/2.5/4/8MHz(adjustable)
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8(optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Video Output 1 line PAL/NTSC analog video
Revolution 720×576(PAL) , 720×480(NTSC)
Lines of horizontal 625 or 525 Line
Audio Output Analog stereo left and right channels
Data encryption AES 265 bit / ALLTECH Basic scrambling
Voltage AC220V±20V, DC14V~DC16V
Work environment -30~70°
Size 370*490*220mm
Weiht 18kg

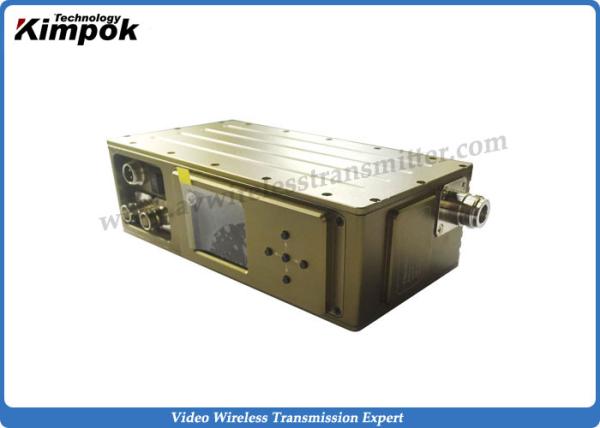

Tx:

Military Manpack COFDM Video Transmitter Long Range Wireless AV Sender AES 265 bit Encryption

Military Manpack COFDM Video Transmitter Long Range Wireless AV Sender AES 265 bit Encryption

Rx:

Military Manpack COFDM Video Transmitter Long Range Wireless AV Sender AES 265 bit Encryption

Military Manpack COFDM Video Transmitter Long Range Wireless AV Sender AES 265 bit Encryption
