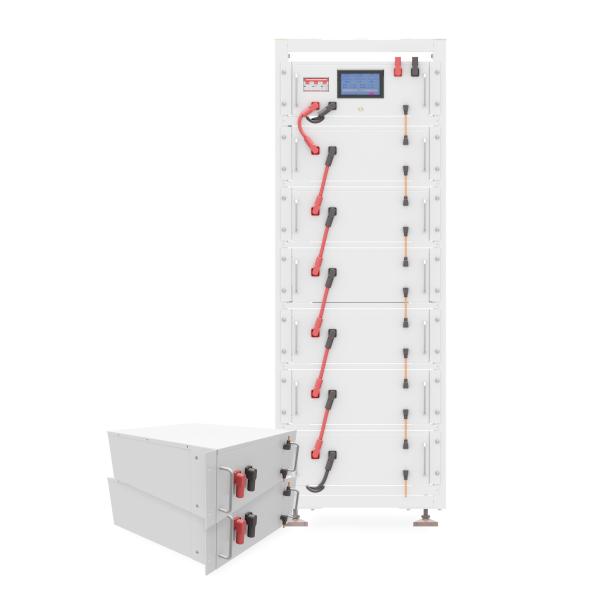

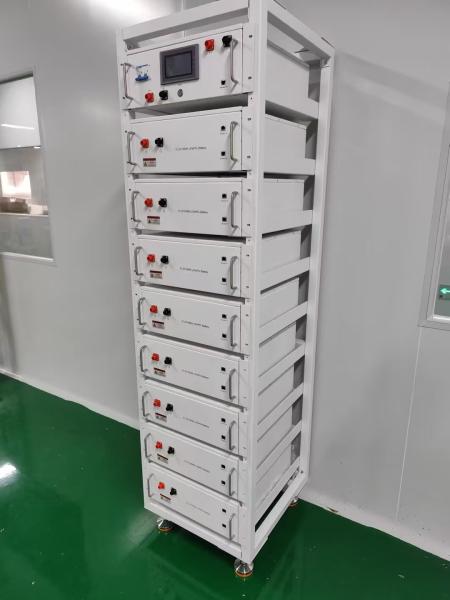

High Voltage LiFePO4 Battery Modules 19.2KWh To 51.2KWh Emergency Backup
High Voltage LiFePO4 Battery Modules 19.2KWh To 51.2KWh Emergency Backup
High Voltage LiFePO4 Battery Modules 19.2KWh To 51.2KWh Emergency Backup
High Voltage LiFePO4 Battery Modules 19.2KWh To 51.2KWh Emergency Backup
Specifications
Brand Name :
kimoems
Model Number :
Refer to parameters
Certification :
CE,MSDS,UN38.3
Place of Origin :
China
MOQ :
1pc
Payment Terms :
T/T
Number of Modules :
4/6/8/10
Battery Capacity :
100Ah
Battery Energy :
20.48KWH/30.72KWH/40.96KWH/51.2KWH
Max Discharge/Charge Current :
100A
Operating Voltage Range :
160-584V
Communication Port :
RS485/CAN
BMS Monitoring Parameters :
SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Description

High Voltage LiFePO4 Battery Modules 19.2KWh To 51.2KWh Emergency Backup


HVM BATTERY FEATURES

Original A-grade lithium iron phosphate battery cell has high safety and reliability

Intelligent integrated BMS, all-round protection strategy and fault detection

Modular design, parallel expansion, flexible choice of voltage and capacity

Large capacity, high charging and discharging efficiency, more than 6000 cycle life

Built-in fire extinguishing device, automatically deal with ultra-early warning thermal runaway status

Bottom tripod design, standard cabinet for easy installation and easy maintenance

ON/OFF switch control output

LCD display, dynamic display of system operating status data


PARAMETERS

Product Type HVM64S100BL-U HVM96S100BL-U HVM128S100BL-U HVM160S100BL-U
Number of Modules 4 6 8 10
Battery Capacity 100Ah
Battery Energy 20.48KWh 30.72KWh 40.96KWh 51.2KWh
Size(L×W×H) mm 548×584×1500 548×584×1500 548×584×1950 548×584×2300
Weight 235Kg 384Kg 425Kg 510Kg
Standard Charge Current 20A
Standard Discharge Current 20A
Battery Type LFP LFP LFP LFP
Cycle Life ≥ 6000 times @ 80% DOD, 25 °C ≥ 6000 times @ 80% DOD, 25 °C ≥ 6000 times @ 80% DOD, 25 °C ≥ 6000 times @ 80% DOD, 25 °C
Nominal Voltage 204.8V 307.2V 409.6V 512V
Operating Voltage Range 160-584V
IP Protection IP 21
Installation Cabinet Holding
Charging Temperature 0~60°C
Discharge Temperature -10~60°C
BMS Monitoring Parameters SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement
Communication Port RS485/CAN
Warranty 5 or 10 years(optional)
