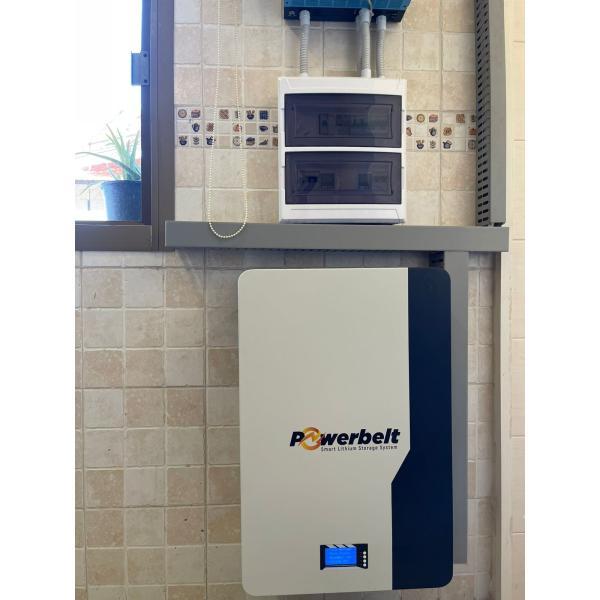

51.2V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery
51.2V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery
Specifications
Brand Name :
kimoems
Model Number :
Refer to parameters
Certification :
CE,UN38.3
Place of Origin :
China
MOQ :
20pcs
Payment Terms :
T/T
Nominal Voltage :
48V
Nominal Capacity :
100Ah/200Ah
Efficency :
≥96%
Inner Resistance :
10mΩ/7mΩ
Cell Type :
LiFePO4
Charge Voltage :
58.4V
Standard Charging Current :
20A/40A
Max.Continuous Charging Current :
100A
Standard Discharge Current :
20A
Continuous Discharge Current :
100A
Peak Discharge Current :
200A(3S)
Discharge Cut-off Voltage :
42V
Cycle Life :
>6000 times
SOC Indication :
LED Light& LCD Screen
Communication Protocol :
RS485/CAN
Matching Inverter :
Growatt,Goodwe, Deye, Luxpower, SRNE etc
Description

48V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery


Features


- Premium, genuine-grade LiFePO₄ cells deliver exceptional safety and long-term reliability.
- Ultra-high charge / discharge efficiency with a proven lifespan exceeding 6 000 complete cycles.
- Seamlessly pairs with the vast majority of mainstream inverters.
- Dual-protocol communication: RS485 and CAN.
- Modular architecture lets you scale system capacity on demand.
- Expandable to 15 units in parallel for virtually limitless energy.
- One-touch ON/OFF switch for effortless output control.
- Real-time status at a glance through a crisp LCD dashboard.



Parameters


Product Description M16S100BL-V M16S200BL-V
Cells In Series 16S 16S
Rated Energy (KWh) 5.12 10.24
Rated Voltage (V) 48 48
Charging Voltage (V) 58.4 58.4
Discharge Cut-off Voltage (V) 42 42
Standard Charge Current (A) 20 40
Maximum Charging Current (A) 100 100
Maximum Discharge Current (A) 100 100
Cycle Life ≥6000 times @80% DOD, 25°C ≥6000 times @80% DOD, 25°C
Methods Of Communication RS232/RS485/CAN RS232/RS485/CAN
Charging Temperature 0~60°C 0~60°C
Discharge Temperature -10~65°C -10~65°C
How It Is Displayed LCD display LCD display
IP Protection IP21 IP21
Product Dimensions (L×W×Hmm) 440×186×560 450×206×670
Net Weight (Kg) 44 87
Packing Dimensions (L×W×Hmm) 512×255×632 525×410×755
Gross Weight (Kg) 50 104


51.2V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery51.2V 100Ah 200Ah Wall Mounted Energy Storage Lithium Ion Lifepo4 Battery
