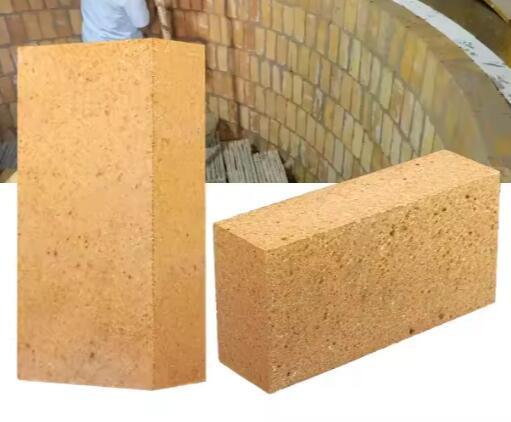

High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace
High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace
High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace
High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace
Specifications
Brand Name :
RONGSHENG
Certification :
ISO9001
Place of Origin :
Henan, China
MOQ :
1 Ton
Alkali Resistance :
High
Durability :
High
Impact Resistance :
High
Feature :
High load softening starting temperature
Thermal Conductivity :
≤ 2.5 W/m·K
Application Temperature :
High
Linear Change Rate :
± 0.2%
Softening Point :
High
Bending Strength :
≥25MPa
Surface :
Smooth
Carbon Content :
≤1.5%
Thermal Expansion :
≤0.6%
Keyword :
55% Al2O3 high alumina brick
Item :
high alumina brick
Cold Crushing Strength :
≥ 50 MPa
Description

High Refractoriness Aluminum Silicate Fire Bricks 1200c 1300c 1400c Alumina Refractory Bricks

Product Description

High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace

High Alumina Bricks

High Alumina Brick Is a Kind Of Neutral Refractory With Alumina Content Above 48%. It Is Formed By Shaping And Calcining Bauxite Or Other Raw Materials With High Alumina Content. High Thermal Stability And Fire Resistance > 1770 ℃. We Bring Forth High Quality High Alumina Bricks, Which Is Manufactured To Meet The Requirements Of Neutral Refractoriness Where Safe Working Temperature > 1300 ℃. We Offer High Alumina Bricks In Different Specifications As Per Customer Requirements.

Product Features

High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace

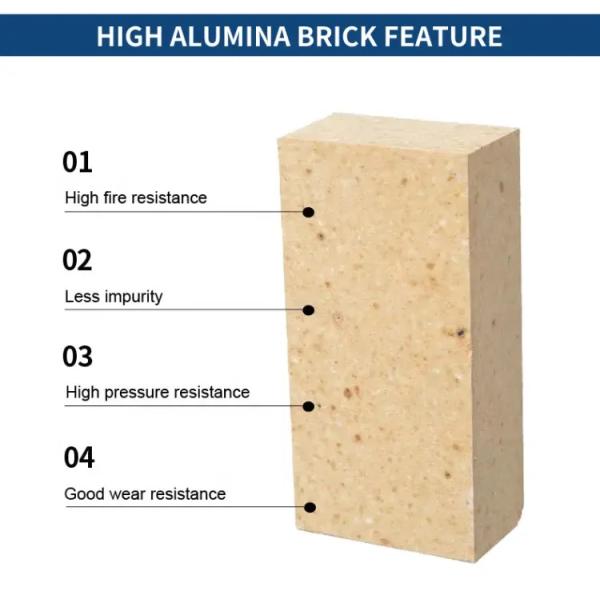

High Alumina Brick Features

1.Refractoriness:
The refractoriness of high aluminum brick is higher than that of clay brick and semi-silicon brick, up to 1750~1790℃, which is a high-grade refractory material.


2.Refractoriness Under Load:
Because the Al2O3 in high aluminum products is high, the impurity is less, the formation of fusible glass body is less, so the load softening temperature is higher than that of clay bricks.


3.Slag Resistance:
There are more Al2O3 in high aluminum bricks, close to neutral refractory materials, which can resist the erosion of acidic slag and alkaline slag.

Application

High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace

High Alumina Bricks Application

1.Used for masonry lining of steel making furnaces,glass furnaces ,cement rotary furnaces.


2. Used for blast stoves , electric furnace tops , for hot blast stoves , electric furnace tops ,blast furnaces , reverberatory furnaces ,rotary kiln linings.


3. High alumina bricks can also be processed into open hearth regenerative grid bricks, socket bricks for pouring system, nozzle bricks, etc. according to the requirements of industrial furnaces.

High Alumina Silicate Refractory Fire Bricks 230*114*65mm Fireclay Brick For Electric Arc Furnace

Specification

High Alumina Refractory Brick Physical and Chemical Index:

Item/Grade Fire Clay Brick High Alumina Brick
SK-30 SK-32 SK-34 SK-35 SK-36 SK-37 SK-38 SK-40
AL2O3% (≥) 30 35 38 45 55 65 70 82
Fe2O3% (≤) 2.5 2.5 2 2 2 2 2 2
Refractoriness(SK) 30 32 34 35 36 37 38 40
Refractoriness Under Load, 0.2MPa, °C (≥) 1250 1300 1360 1420 1450 1480 1530 1600
Apparent Porosity (%) 22-26 20-24 20-22 18-20 20-23 20-23 20-22 18-20
Bulk Density (g/cm³) 1.9-2.0 1.95-2.1 2.1-2.2 2.15-2.22 2.25-2.4 2.3-2.5 2.4-2.6 2.5-2.7
Cold Crushing Strength ,MPa (≥) 20 25 30 40 45 50 60 70

Brick Standard Sizes
SPLITSTRAIGHT
L×W×H(mm)		 SPLIT
L×W×H(mm)		 ARCH
L×W×H(mm)		 WEDGE
L×W×H(mm)		 TILE
L×W×H(mm)		 OTHER SHAPE
230×114×65 230×114×25 230×114×65/45 230×114×65/45 230×230×38 Key brick
230×114×75 230×114×32 230×114×65/55 230×114×65/55 230×230×50 Skew brick
230×114×37 230×114×75/45 220×114×75/45 230×230×65 Soap
230×114×50 230×114×75/55 220×114×75/55 230×230×75 Checker
≤10 230×114×75/65 220×114×75/65 Neck
Taper
Application Steel furnace, glass furnace, sodium silicate furnace, ceramic shuttle kiln, cement rotary kiln, blast furnace, electric furnace,blast furnace and reverberatory furnace.
We also can make brick according to customers’ drawing and requirements.
