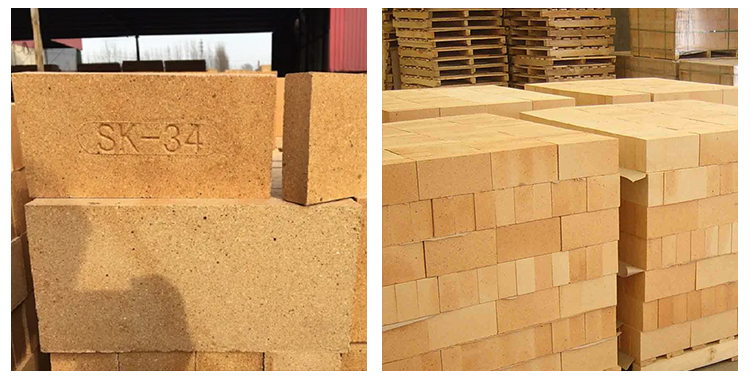

Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Specifications
Performance :
Keeping heat
Certification :
ISO9001
Elongation At Break :
100
Brand Name :
RONGSHENG
Features :
High cold crushing strength
Place of Origin :
Henan, China
MOQ :
1 Ton
Bending Strength :
CLASS 2
Water Absorption :
<10%
Thermal Conductivity :
0.03
Product Type :
Brick shape
Materials :
Mullite
Temperature Range :
850-1150℃
Material :
Lightweight refractory ceramic
Keyword :
Lightweight Insulating Fire Brick
Shape :
Rectangular
Silica Content :
50-60%
Use :
Hot Blast Stove
Thickness :
3-30 mm
Description

Fire Clay Brick Introduction

Fireclay bricks refer to clay products with Al2O3 content of 30%~40%. The fire resistance can reach 1690~1730 ℃. Refractory clay brick is made of clinker clay through mixing, molding, drying, sintering and proportioning. It has good corrosion resistance, wear resistance, thermal shock resistance, spelling resistance, high mechanical strength, and good volume stability under high temperature.

Fire Clay Brick Features

1.Good resistance to corrosion and abrasion;
2.Perfect thermal shock resistance;
3.Good spalling resistance;
4.High mechanical strength;
5.Good volume stability under high temperature;
6.Excellent thermal performance, and acid resistance;

Fire Clay Brick Product Specifications

Material fireclay materials
Color earthy yellow
Size Standard sizing: 230 x 114 x 65 mm ,Special size and OEM Service also provide!
Shape Straight Brick,special-shaped brick,checher brick,trapezoidal brick,Bricks with taper,arch brick,skew brick,ect.
Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace
Application

Fire Clay Brick Application

Iron & steel making industry Blast furnace, hot blast furnace(stove), pellet shaft furnace, hot metal ladle, steel ladle, tundish, eating furnace, soaking pit furnace, heat treatment furnace, refining furnace, reheating furnace, metal mixter furnace, cupola furnace etc thermal technology equipment
Non-ferrous Metal industry Smelting furnace, reverberatory furnace etc
Building materials industry Cement kiln, glass kiln, ceramic kiln, lime kilns, kiln car, tunnel kiln, rotary kiln
Energy&Incineration Coke oven, general boiler, power generation boiler, circulating fluidized bed boiler, electric furnace, carbon roasting furnace, waste incinerators
Others Petrochemical industry furnace, Pizza oven

Wholesale Various Types Fire Clay Brick SK30 SK32 SK34 SK35 Fire Resistant Clay Refractory Bricks For Kiln And Furnace

Specification

Fire Clay Brick Specifications

Item/Grade Fire clay brick
SK-30 SK-32 SK-34 SK-35
AL2O3% (≥) 30 35 38 45
Fe2O3% (≤) 2.5 2.5 2 2
Refractoriness(SK) 30 32 34 35
Refractoriness under load, 0.2MPa, °C (≥) 1250 1300 1360 1420
Apparent porosity (%) 22-26 20-24 20-22 18-20
Bulk density (g/cm³) 1.9-2.0 1.95-2.1 2.1-2.2 2.15-2.22
Cold crushing strength ,MPa (≥) 20 25 30 40

low creep clay brick

Brands DRN-125 DRN-120 RN-42 RN-40 RN-36
Al2O3 % ≥45 ≥42 ≥42 ≥40 ≥36
Apparent Porosity % ≤22 ≤22 ≤22 ≤22 ≤22
Bulk density g/cm3 2.15-2.35 2.00-2.00 2.00-2.20 2.00-2.20 2.00-2.20
Cold compressive strength MPa ≥40 ≥35 ≥35 ≥30 ≥25
Refractoriness°C ≥1760 ≥1760 ≥1760 ≥1740 ≥1700
Refractoriness under load°C ≥1410 ≥1350 ≥1300
Creep rate%(0.2MPa*50h)≤ 0.8 0.8
1250°C 1200°C
