1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
Specifications
Place of Origin :
Henan, China
Shape :
blanket
Waterabsorption :
Low
Bulk Density :
96-280kg/m3 or as requirements
Temprature Classification :
1260℃-1600℃
Liner Shrinkage :
≤4.0
Thermal Conductivity :
0.09-0.16 W/mK
Fiber Diameter :
3-5
Certification :
ISO9001
Productname :
Ceramic Fiber Blanket
Size :
600mmX400mmX(10-50)mm
Thermal Conductivi :
0.17
Moisture Content :
≤1%
Service Temperature :
1000-1300 degree
Usage :
Furnace Liner
Compressive Strength :
0.08MPa
Brand Name :
RONGSHENG
Flame Resistance :
Non-flammable
Description
Product Description
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace

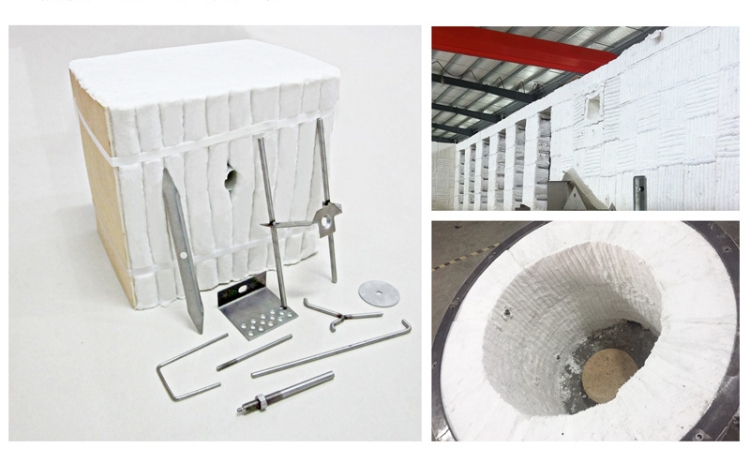

Ceramic Fiber Module Descriptions Ceramic fiber module are made from compressed ceramic fiber blanket.Ceramic fiber module is produced by various anchoring systems, white color, regular size, good refractory heat insulation effect, classified temperature 1050-1600 °C, used in various kiln lining insulation and various thermal equipment lining.
Ceramic Fiber Module Characteristics Low bulk density,low thermal conductivity. Resistance to heat-shock, ability to resist the scouring of airflow. Excellent mechanical strength ,Good safety with anchor inside Easy to install. after installing the lining form a seamless space, good insulation effect.
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
Specification
Ceramic fiber modules can be divided into the following types based on temperature grade 1050℃ Ordinary ceramic fiber module 1260℃ Standard ceramic fiber module 1260℃ High purity ceramic fiber module 1350℃ High aluminum ceramic fiber module 1430℃ Zirconium type ceramic fiber module 1600℃ ceramic fiber module
Ceramic Fiber Module
RS1050
RS1260ST
RS1260HP
RS1350
HA
RS1430
Zr
RS1600
PMF
Classification Temperature
1050
1260
1260
1350
1430
1600
192kg/m3/at()℃/24h
Linear Shrinkage Rate
≤2.0
(850℃)
≤2.0
(1000℃)
≤2.0
(1050℃)
≤2.0
(1100℃)
≤2.5
(1200℃)
≤1.5
(1450℃)

Density (KG/M3)
172-240
172-240
172-240
172-240
172-240
172-240

Thermal Conductivity Rate(W/m.k)
400℃
0.08
0.08
0.08
0.08
0.08
-
600℃
0.15
0.15
0.15
0.12
0.12
0.12
800℃
0.22
0.20
0.19
0.18
0.16
0.15
1000℃
-
-
0.22
0.12
0.19
0.18
Chemical Composition(%)
Al2O3
42-44
45-46
47-49
52-55
34-36
72-75
Al2O3+SiO2
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
≥99.0
ZrO3
-
-
-
-
15-17
-
Other
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
≤1.0
1260C 1430C Refractory Ceramic Fiber Folding Block Alumina Silicate Ceramic Module For High Temperature Furnace
Product Application
Ceramic Fiber Module Application 1.Steel Industry: Heat treatment furnaces Ladle cover, annealing furnace,rotary furnace,bell furnace,walking beam furnace,hot air and flue pipes etc.
2.Ceramic Industry:Tunnel kiln, shuttle kiln, end-fired furnaces, roller kiln.
3.Petrochemical Industry: Atmospheric furnace, transforming furnace, coking furnace, cracking furnace, flue etc.
4.Heat-treatment industry: Annealing furnaces, normalizing furnaces, drawing furnaces, pit furnaces, kiln cars.
5.High- temperature equipment: For example, pot furnaces, electricity resistance furnaces and other kinds of industrial furnaces.
6.Green energy industry:Waste incinerators, RTO exhaust treatment furnace, SCR environmental catalytic stove etc.
