Metal Annealing Vacuum Sintering Furnace
Metal Annealing Vacuum Sintering Furnace
Metal Annealing Vacuum Sintering Furnace
Metal Annealing Vacuum Sintering Furnace
Metal Annealing Vacuum Sintering Furnace
Metal Annealing Vacuum Sintering Furnace
Specifications
Brand Name :
QIANJIN
Model Number :
VF
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1
Price :
Negotiable
Supply Ability :
100PCS/month
Delivery Time :
30 work days
Packaging Details :
plywood package
Chamber size :
400*300*300mm
Heater :
Molybdenum-Lanthanum Alloy Strip
Working temperature :
1300℃
Control accuracy :
±1℃
Temperature control method :
PID
Heating rate :
《20℃/MIN
Max power :
35KW
Ultimate vacuum :
≤8X10-5PA
Description

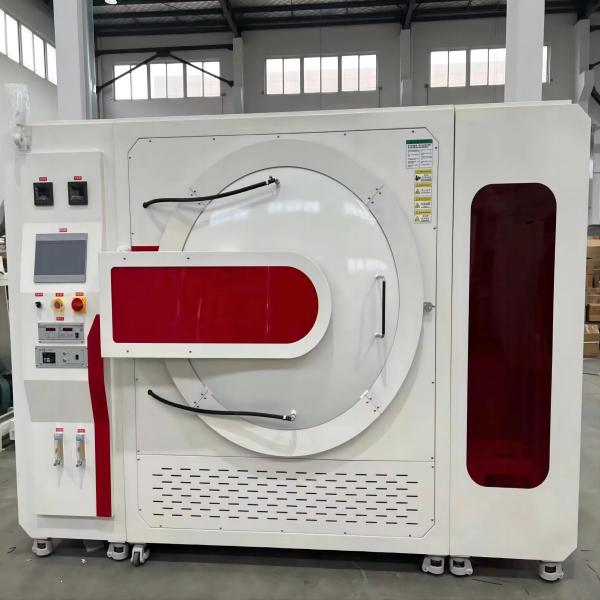

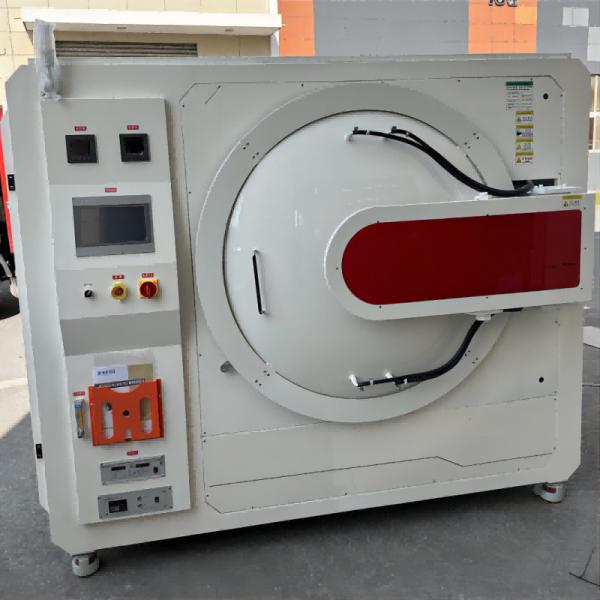

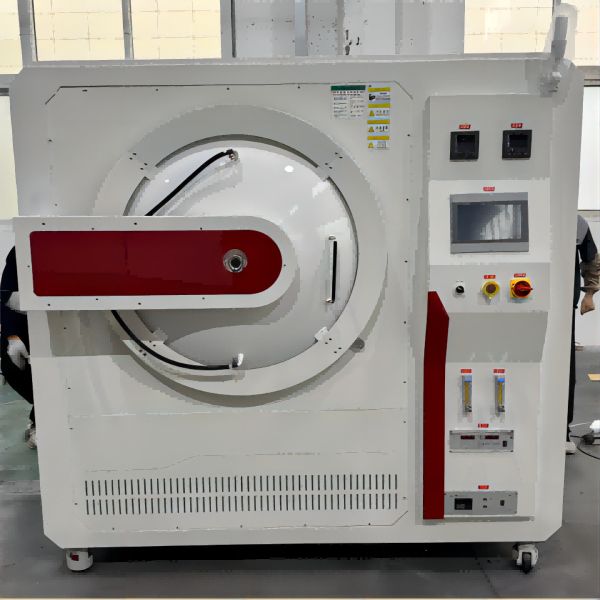

Metal Annealing Vacuum Sintering Furnace

1﹑Description

This equipment combines vacuum/atmosphere and high-temperature sintering together. It is a high vacuum annealing furnace specially developed by our company for the 3D metal printing industry (SLSSLM). It is mainly used in the high vacuum annealing process of medical (human implant) metal 3D additive manufacturing.

2﹑Technical specification

Chamber size L400*W300*H300mm
Max temperature 1300℃
Heater Molybdenum-Lanthanum Alloy Strip
Control accuracy ±1℃
Temperature control method PID automatic adjustment
Heating rate <20℃/MIN
Maximum power 35KW
Ultimate vacuum ≤8X10-5PA
Pressure rise rate ≤0.67PA/H
Ventilation type Inert gases such as nitrogen and argon
Lock door structure Electric door lock structure
Control system Touch screen + fully automatic PLC control system

3﹑Patent

With proven engineering knowledge and more than 20 years' experience we can provide you the right furnace solution.

4﹑Customer Case in China

The first Mobile phone fast charging graphene heat dissipation film carbonization production line

The first ITO target powder roller furnace continuous production line in china

5﹑Foreign Customer

6﹑Package and shipment

We will well pack the goods based on the kinds of furnace and customer's requirement.
