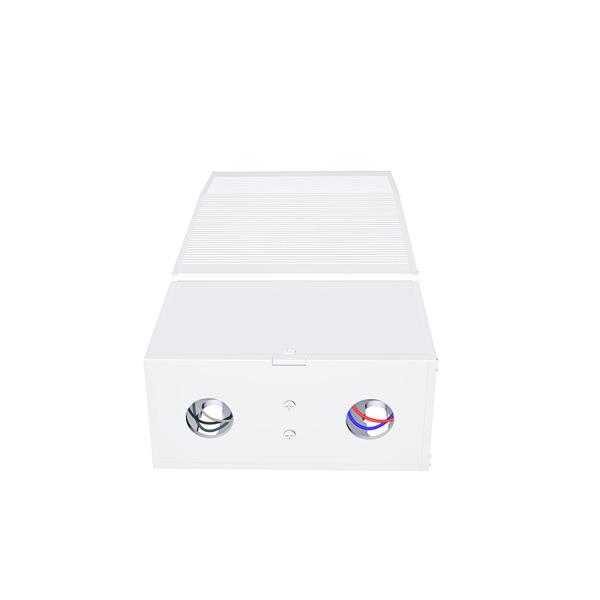

Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Specifications
Lighting solutions service :
Lighting and circuitry design
Input Voltage :
120Vac 60Hz & 230Vac 50Hz
Dimming mode :
Triac/ Phase-cut
Output Current :
3.34A / 1.67A
Efficiency :
≥ 91%
Output Power :
1 - 50W
Product Name :
40W Phase dimming pool light transformers
Color :
White Black
IP Rate :
nema 3R,IP65
Material :
Aluminium Case
Place of Origin :
Guangdong, China
Brand Name :
KSPOWER
Model Number :
KSNT-40W12 / KSNT-40W24
Certification :
UL/cUL/Class2/CE
Packaging Details :
a. 1pc per inner brown box
b. 20pcs per standard carton
c. custom is acceptable
d. sample is available
MOQ :
10 pieces
Price :
$18.83/pieces
Output Type :
Single Phase
Output :
12V /24V
Warranty :
5 Years
Warranty(Year) :
5-Year
Application :
LED Lighting
Description
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Products Description
waterproof ip65 12V 24V 40W led power supply Phase Dimming ul approved Class2 led driver cabinet for outdoor led lighting
The KSPOWER - NT series triac dimmable led driver 40 Watt is one constant voltage solution, single channel, accept AC input voltage 120V, output voltage 12Volt 24Volt compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers. The class 2 12V 24V dimming transformer use low profile metal aluminum case, dry and damp, makes the dimmable led drivers solutions for LED strips, LED sign, billboard and landscape lighting. Featuring 2K frequency PWM output and NEMA 3R waterproof environment protection rated for indoor or outdoor use, the phase dim led driver provide 5 years warranty and outstanding led dimming performance.
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Input Voltage
120V & 230VAC
Power Factor
PF≧0 95/120VAC at 80% load
NO.
KSNT-40W12 / KSNT-40W24
Output Voltage
12V/24V
Rated Current
1.7A/ 0.84A
Rated Power
40W
Ripple &Noise(max.)
200mVp-p / 250mVp-p
Dimension(L*W*H)
177*70*35mm/6.97*2.76*1.38in
Festures:
Dimmable with any standard MLV TRIAC (Leading edge) dimmer switch ● Dual protection – two manual push-to-reset circuit breakers on the primary and secondary sides ● 12V/24V PWM Output
● Single Channel & Constant Voltage mode
● Flicker-Free ● Nema 3R Enclosure – Outdoor Use ● Two bottom knockouts ● Optional 10% voltage boost to compensate for voltage drop
● Current Limiting Overload Protection ● UL/cUL 8750 CLASS2 CE Cert.
● Certified to CSA Standard
● Waterproof,for Dry, Damp, Wet Location
● 5 Years Warranty

Note:Any custom label/package/case is acceptable, provide OEM and ODM service
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Details Images
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Compatibility
Dimmer Model
Drivers
Dimmer Model
Drivers
Dimmer Model
Drivers
LUTRON DV-600P
No Flicker
LUTRON MSC-600M
No Flicker
LEVITON IP106-ILZ
No Flicker
LUTRON D-603PGH
No Flicker
LUTRON V-600
No Flicker
LEVITON DSE06-102ELV
No Flicker
LUTRON MAELV-600
No Flicker
LUTRON PD-6WCL
No Flicker
LEVITON DSL06-ILZ
No Flicker
LUTRON VT-600M
No Flicker
LUTRON SELV-300P
No Flicker
LEVITON DDL06-BL
No Flicker
LUTRON NT-603P
No Flicker
LUTRON MIRELV-600M
No Flicker
LEVITON DD710-BD
No Flicker
LUTRON NTLV-603P
No Flicker
LUTRON SPS-600
No Flicker
LEVITON IPL06-10
No Flicker
LUTRON N-2003P
No Flicker
LUTRON SPS-300LD-RP
No Flicker
LEVITON IP710-DL
No Flicker
LUTRON DVCL-153P
No Flicker
LEVITON 6613-PLW
No Flicker
LEVITON RDL06-10
No Flicker
LUTRON S-600P
No Flicker
LEVITON 6681
No Flicker
LEVITON TSM10-1L
No Flicker
LUTRON CTCL-153P
No Flicker
LEVITON 6633-P0G
No Flicker
LEVITON 66EV
No Flicker
Applications
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
NOW,GET MORE INFORMATIONS OF US !
Company Profile
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Working Room
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Exhibition
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Certifications
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Applications
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
Product packaging
1.Sample is available.
2.Shipping method: available for express DHL/UPS/FedEx/TNT, Land, Ocean and others.
3. for 60W power adapter : each one put in one small inner brown box, then 50 pcs put in one standard carton.
Package
Piece/Carton(pcs)
Piece Weight(KG)
OEM package
50
0.26
Dimension/Brown Box(mm)
Dimension/Carton(mm)
Gross Weight/Carton(KG)
155*85*35
455*370*175
14
Class2 LED Driver Cabinet for Outdoor LED Lighting Waterproof IP65 12V/24V 40W Phase Dimming UL Approved Aluminium Case
