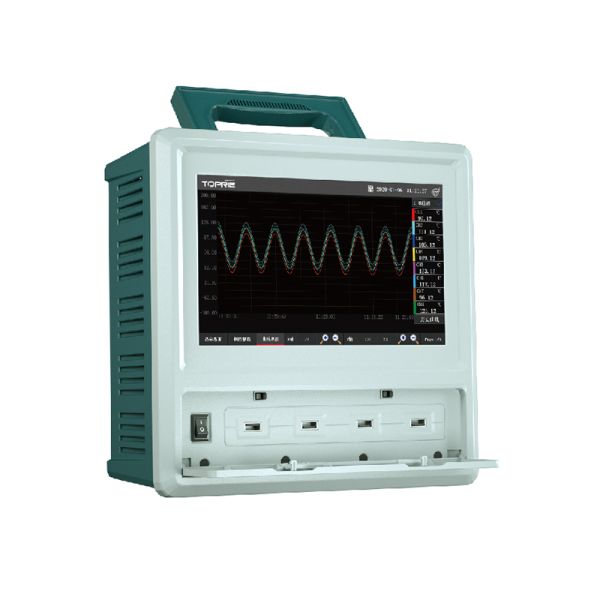

High Speed 0.1s Data Acquisition Temperature Recorder Analog Input 4-20mA 0-5V Tcp Ip Data Logger
High Speed 0.1s Data Acquisition Temperature Recorder Analog Input 4-20mA 0-5V Tcp Ip Data Logger
Specifications
Brand Name :
TOPRIE
Model Number :
TP1000H
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
Packed in paper box
Description

High Speed 0.1s Data Acquisition System Temperature Recorder Modbus Rs485 Analog Input 4-20mA 0-5V Paperless Recorder RJ45 Modbus Tcp Ip Data Logger



TP1000H data logger with TP1704 high-speed data acquisition module (optional). Each module has 4 channels. The TP1000H can support up to 8 modules to form a 32-channel system; with 8 external 1604 modules (optional), it can be expanded to a maximum of 64 channels. This high-speed data acquisition module combines with the TP1000H data logger to form a high-speed data acquisition system.


Accuracy List

Input Type Measuring Range Measuring Accuracy Display Resolution
±120V -132V ~ +132V 0.01% F.S ± 0.005V Maximum 6 digit display
±20V -22V ~ +22V 0.01% F.S ± 0.005V
±100mV -120.0mV ~ +120.0mV 0.01% F.S ± 0.005mV
±20mA -25mA ~ +25mA 0.01% F.S ± 0.001mA
K -200℃ ~ +1372℃ ±(0.05% rdg. + 1.0℃)

0.01

Maximum 6 digit display
J

-200℃ ~ +1200℃

-200℃ ~ 0℃

±(0.05% rdg. + 1.0℃)

±(0.15% rdg. + 1.0℃)
E

0℃ ~ +1000℃

-200℃ ~ 0℃

±(0.05% rdg. + 1.0℃)

±(0.15% rdg. + 1.0℃)
T

-30℃ ~ +400℃

-200℃ ~ 30℃

±(0.05% rdg. + 1.0℃)

±(0.15% rdg. + 1.0℃)
N

0℃ ~ +1300℃

-200℃ ~ 0℃

±(0.05% rdg. + 1.5℃)

±(0.3% rdg. + 1.5℃)
W +1500℃ ~ +2315℃
0℃ ~ +1500℃		 ±(0.05% rdg. + 1.5℃)
±(0.05% rdg. + 1.0℃)
R +800℃ ~ +1768℃
+400℃ ~ +800℃		 ±(0.05% rdg. + 1.5℃)
±(0.2% rdg. + 2.0℃)
S +800℃ ~ +1768℃
+400℃ ~ +800℃		 ±(0.05% rdg. + 1.5℃)
±(0.2% rdg. + 2.0℃)
B +800℃ ~ +1820℃
+400℃ ~ +800℃		 ±(0.05% rdg. + 1.5℃)
±(0.2% rdg. + 2.0℃)
Pt100 -200℃ ~ +660℃ ±(0.05% rdg. + 0.3℃)
Pt1000 -200℃ ~ +300℃ ±(0.05% rdg. + 0.2℃)
Cu50 -50℃ ~ +150℃ ±(0.05% rdg. + 0.3℃)
Warmup time: over 30 Mins
Thermocouple measurement: including cool compensation accuracy
Operation (listed accuracy): under Temperature: 25℃ ±3℃ humidity: 55% ±10% RH
Storage: -20℃ ~ 50℃ 0-90% RH (No condensing)


Advantage


Modular expansion, 8~64 channels

High-speed sampling, capture transient data

Multi-channel sync, consistent data

Integrated acquisition-storage-analysis

Optional modules, cost-effective

Stable in complex scenarios


Application


Power & Electrical Engineering

Biopharmaceutical Manufacturing

Electronic Product Testing & Validation

New Energy Equipment R&D & Operation

Industrial Process Control
