3W Electric Power Meter Current Voltage Measurement Electrical Meter Panels IP65
3W Electric Power Meter Current Voltage Measurement Electrical Meter Panels IP65
Specifications
Brand Name :
TP613U
Model Number :
TP613U
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD50.00~109.00 per piece
Payment Terms :
MoneyGram,Western Union,T/T,D/P,D/A,L/C
Supply Ability :
100 pieces per day
Delivery Time :
5-8 working days
Packaging Details :
packed in paper carton
Keyword :
Energy Meter
Power supply :
ADC100V~265V
Frequency :
40~65Hz accuracy 0.01hz
Accuracy :
RMS measurement Voltage 0.2s Current 0.2s Active Energy 0.2sRMS
Color :
Black
Material :
ABS+PC(shell)
Communication :
WIFI/4G/RS485/LoRa
Protocol :
Modbus RTU MQTT
Configuration :
Software
Wire method :
3 phase 4 wire 3 phase 3 wire
Protection level :
IP65 (with protection cover)
Display :
LCD TFT Screen
Warranty :
12 months
Description

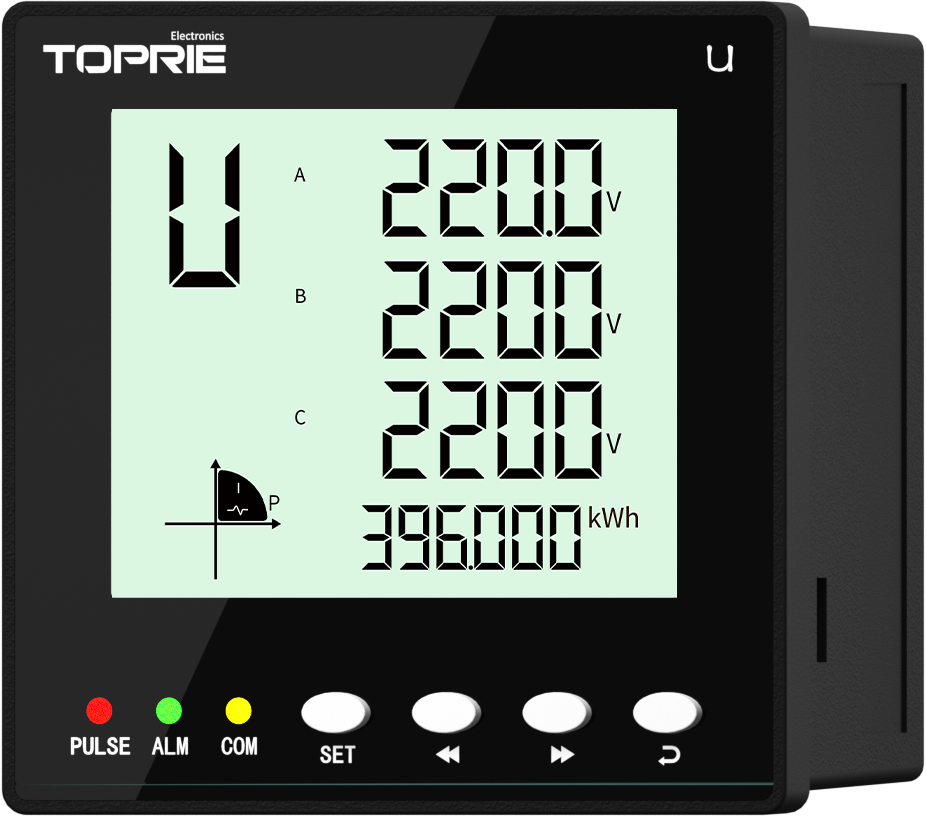

Power Current Voltage Measurement Electric Energy Panel Meter


Communication

RS485(modbus RTU)

Display

LCD display

Rated current

5A

Accuracy

RMS measurement

Active energy:class 0.5

Power supply

ADC100V~265V

Consumption

3W

3W Electric Power Meter Current Voltage Measurement Electrical Meter Panels IP65

Installation

Panel mounted

Embedded

Dimension(L*W*H)

Panel size(L*W) 96*96mm

Open hole size(L*W)92*92m

Housing(L*W*H)96*96*87mm

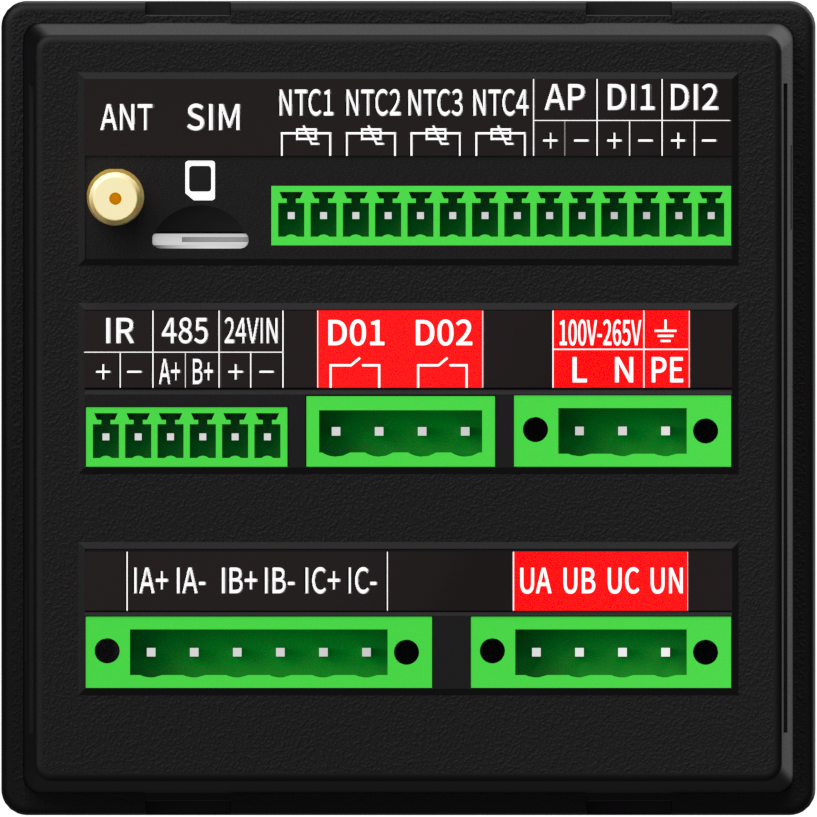

Switch relay

2 channel DO and 2 channel DI

3W Electric Power Meter Current Voltage Measurement Electrical Meter Panels IP65

Technical parameters

Wire Method 3 phase 3 wire, 3 phase 4 wire
Voltage Measuring Range ADC65V~480V
Voltage Overload 1.2 times instant 2 times per 10Sec
Voltage Consumption <1VA per phase
Voltage Resistance ≥300KΩ
Voltage Accuracy RMS measurement,accuracy:class 0.2s
Current Measuring Range AC0.015A~5A continous limit current:6A
Current Overload Continutity:1.2 times instant:10 times per 10 Secs
Current Consumption ＜0.4VA per phase
Current Resistance ＜20mΩ
Current Accuracy RMS measurement accuracy class 0.2s
Frequency Range 40~65Hz accuracy 0.01Hz
Resdual Current Range:0.01A~5A accuracy class 0.5s
Power Active,reactive,apparent power, accuracy class 0.5s
Active Energy Active energy accuracy class 0.5s reactive energy accuracy class 0.5s
Display LCD Screen
Operation Voltage AC/DC100V~265V
Consumption 3W
Output Digital interface RS485 Modbus RTU / MQTT
Pulse Output 3 channel active energy pulse output,pulse constant 3200imp/kWh
Operation Environment Temperature:-20℃~60℃ Humidity 5%~85% RH (No condensing)without corrosive gas,altitude<3000m
Transport and Save Environment -25℃~70℃
Isolation Voltage Signal input and power supply 1600VAC,signal input and output 1600VAC, power and transmit output RS485 port,DI port,pluse output
Insulation Input,output,power shell >5MΩ
Weight 350g


Intelligent panel meter is a device called an electricity meter,electrical meter, electric meter or kWh meter that measures the amount of electric energy consumed by a commercial business. main electrical parameters such as voltage, current,power factor,frequnecy ect. it can also analysis the quality of the electrical usage and is widely used in all kinds of areas, such as Power distribution cabinet, smart building, automation plant, hospital,shopping plaza, university ect..

3W Electric Power Meter Current Voltage Measurement Electrical Meter Panels IP65


FAQ


Q: What is warranty of your energy meter?
A:The warranty is 12 months, if you need to extend the time, welcome to contact us for more details.


Q:What is the MOQ(minimum order quantities) ?
A:Normally,our brand(Toprie) is without MOQ,if you want to customized your brand, there will be a MOQ 100 pcs.


Q:What is the communication protocol of your energy meter?
A:4G WiFi support MQTT(non encryption). RS485 support modbus RTU. if you want to customize the protocol, please do not hesitate to let us know and we will accord your requirements to meet your demand.


Q:What is your lead time?
A: Sample time 3-5 working days, massive orders will depends on your order quantities and other requirements.


Q:Are you a manufacturer? and Where is your factory?
A: Yes, we are a manufacturer and lived in Shenzhen City. welcome to come and visit us.
