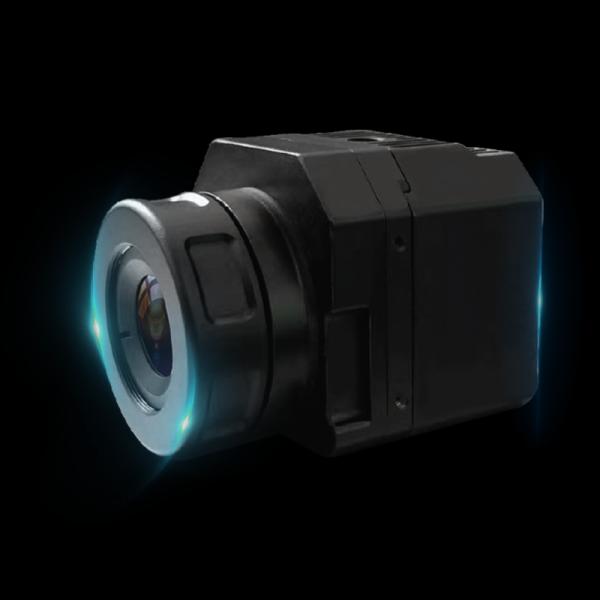

High Resolution Online Infrared Thermal Camera Temperature Measurement Solution
High Resolution Online Infrared Thermal Camera Temperature Measurement Solution
Specifications
Range :
-20℃~600℃
frame rate :
25Hz/50Hz
Ethernet network :
a interface with 4
Resolution :
640*512 pixel / 384*288 pixel
pixel pitch :
12μm
View angel/focus :
58.9°x48.6°/6.8mm 32.9°x26.6/13mm 22.9°x18.4°/19mm 17.5°x14.0°/25mm 12.5°x10.0°/35mm
Brand Name :
TOPRIE
Model Number :
HM
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 piece
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
100 pieces per day
Delivery Time :
5-8 work days
Packaging Details :
Packed in paper box
Accuracy :
2% F.S or +2℃
digital camera pixel :
expanded
Dimension :
44.45*44.45*52.82mm
Thermal sensitivity :
NETD 60mk@F/1,30C,50Hz
IFOV Mrad :
1.77 mrad/6.8mm 0.92 mrad/13mm 0.63 mrad/19mm 0.48 mrad/25mm 0.34 mrad/35mm
Keywords :
Infrared thermal camera
Detection type :
Uncooled Vanadium Oxide (VOx) Focal Plane Array Detector
Serial port :
a RS485 communication
focusing mode :
Fixed ( auto can be optional)
I/O :
a digital input, a digital output
