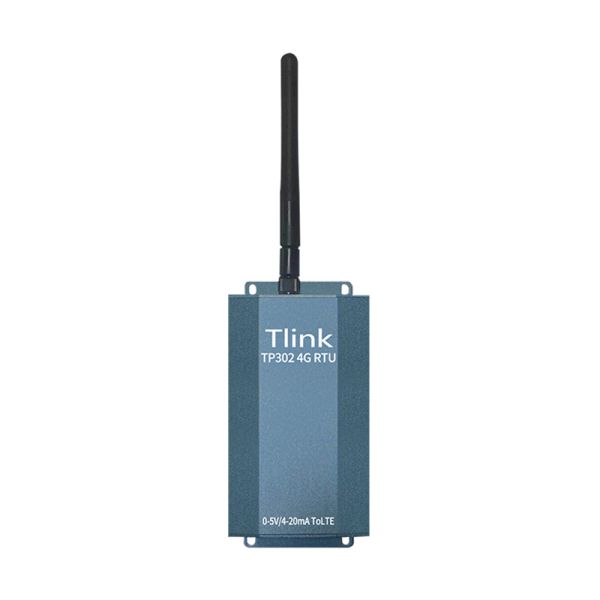

4-20mA / 0-5V WiFi Edge Gateway Smart WiFi RTU IoT Gateway 4G Data Acquisition Unit
4-20mA / 0-5V WiFi Edge Gateway Smart WiFi RTU IoT Gateway 4G Data Acquisition Unit
Specifications
Warranty :
12 months
Keywords :
edge gateway
Protocol :
Modbus RTU, MQTT
Material :
Aluminum alloy
Brand Name :
TLINK
Model Number :
TP302
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 piece
Price :
USD 69.00~USD 99.00
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
100 piece per day
Delivery Time :
5-8 working days
Packaging Details :
Packed in paper carton
Accuracy :
0.2%
Analog input type :
4-20mA / 0-5V
Dimension :
103*64*26mm
Communication :
4G, WiFi, GPRS, 4G support GPS function
Description

High Quality Analog Input 4G Data Acquisition Unit 4-20mA/0-5V WiFi Edge Gateway Smart WiFi RTU IoT Gateway


TP302 RTU edge gateway helps you achieve remote data monitoring of sensors instantly. It supports analog acquisition (4~20mA/0-5V), GPRS,WiFi,4G wireless remote transmission, low-power sleep with active wake-up, and is applicable to a wider range of scenarios with low bandwidth and low data usage.

4-20mA / 0-5V WiFi Edge Gateway Smart WiFi RTU IoT Gateway 4G Data Acquisition Unit

Technical Specifications

Specification Details
Product name Industrial RTU IoT Gateway
Channel 3 analog inputs
Input type 0-5V, 4-2mA
Input resistance Voltage measurement: >5MΩ; Current measurement: <15MΩ
Resolution 24-bit
Error level 0.2
Feed output 500mA current
Power supply range 8-28V
Acceptance sensitivity <-110dBm
Low power consumption <2.5mA (sleep mode), <15mA (standby), <50mA (data communication)
Operating temperature -20–70°C
Hot and humid environment Operable at 60°C with relative humidity of 90–95%RH
Vibration environment Frequency: 10–55Hz; Amplitude: 0.35mm; Three-axis direction
Data transmission Supports remote SMS-based configuration parameter query, remote device restart, and remote device parameter configuration
Dimension 103×64×26mm
Features Provides device status indicator and network status indicator; the status indicator can also be used as a device restart button
Offers one feed output with optional output voltage (5V and module power supply voltage); maximum load capacity is 0.5V, recommended not to exceed 0.25V
Automatically reports collected data at regular intervals, with configurable reporting time intervals
Supports full-network access GSM
Supports TCP and MQTT reporting modes
Embedded with TCP/IP protocol stack and GPRS technology; organically integrates the Internet and GPRS network, and supports public network and APN network access
Supports dynamic data center domain names and IP addresses
Supports ALWAYS ONLINE mode, with disconnection and reconnection functionality

Advantage

  1. Supports the MQTT protocol to achieve one-click integration with the free TLINK cloud platform.
  2. 24-bit independent AD sampling, paired with a dedicated signal comparator, delivering higher accuracy and greater stability.
  3. Modular design of the acquisition circuit, providing a more reliable method for data acquisition.
  4. Low-power consumption design – extended battery-powered operation time and an enhanced outdoor detection experience.
  5. Protective circuits, reverse power connection protection, and three-proof coating have been added to all signal input ports.

Application

4G RTU edge gateway wireless transmission module is widely used in fields such as power, petroleum, thermal energy, communications, industry, meteorology, water conservancy, agriculture, and transportation.

Power Petroleum Thermal Energy Communications Industry Meteorology Water Conservancy Agriculture Transportation
