Specifications
Model Number :
TP740
Channel :
1-12 channel
MOQ :
1 piece
Delivery Time :
5-8 work days
Communication :
RS485/Thread/RJ45/4G/WIFI/LORA
Dimension :
96*96*102mm
Payment Terms :
L/C,D/A,D/P,T/T
Color :
Black
Display :
4" color touch screen
Price :
Negotiable
Material :
ABS+PC
Supply Ability :
100 pieces per day
Customized support :
OEM, ODM
Certification :
CE,ROHS
Place of Origin :
China
Brand Name :
TOPRIE
Packaging Details :
packed in paper carton
Description

4 Inch Touch Screen Paperless Recorder Multi Channel Data Acquisition Device for Temperature Pressure Voltage Current Monitoring

4 Inch Touch Screen Paperless Recorder Multi Channel Data Acquisition Device for Temperature Pressure Voltage Current Monitoring

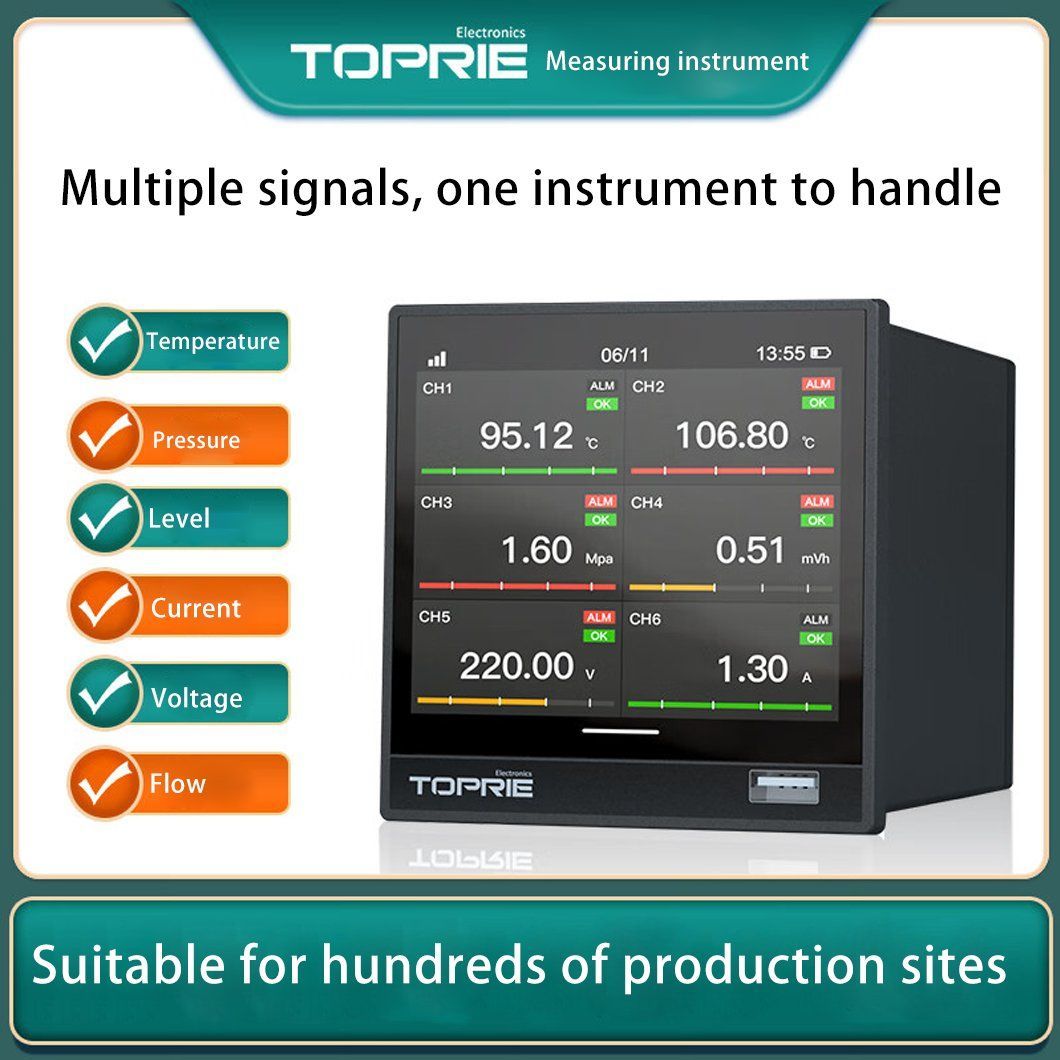

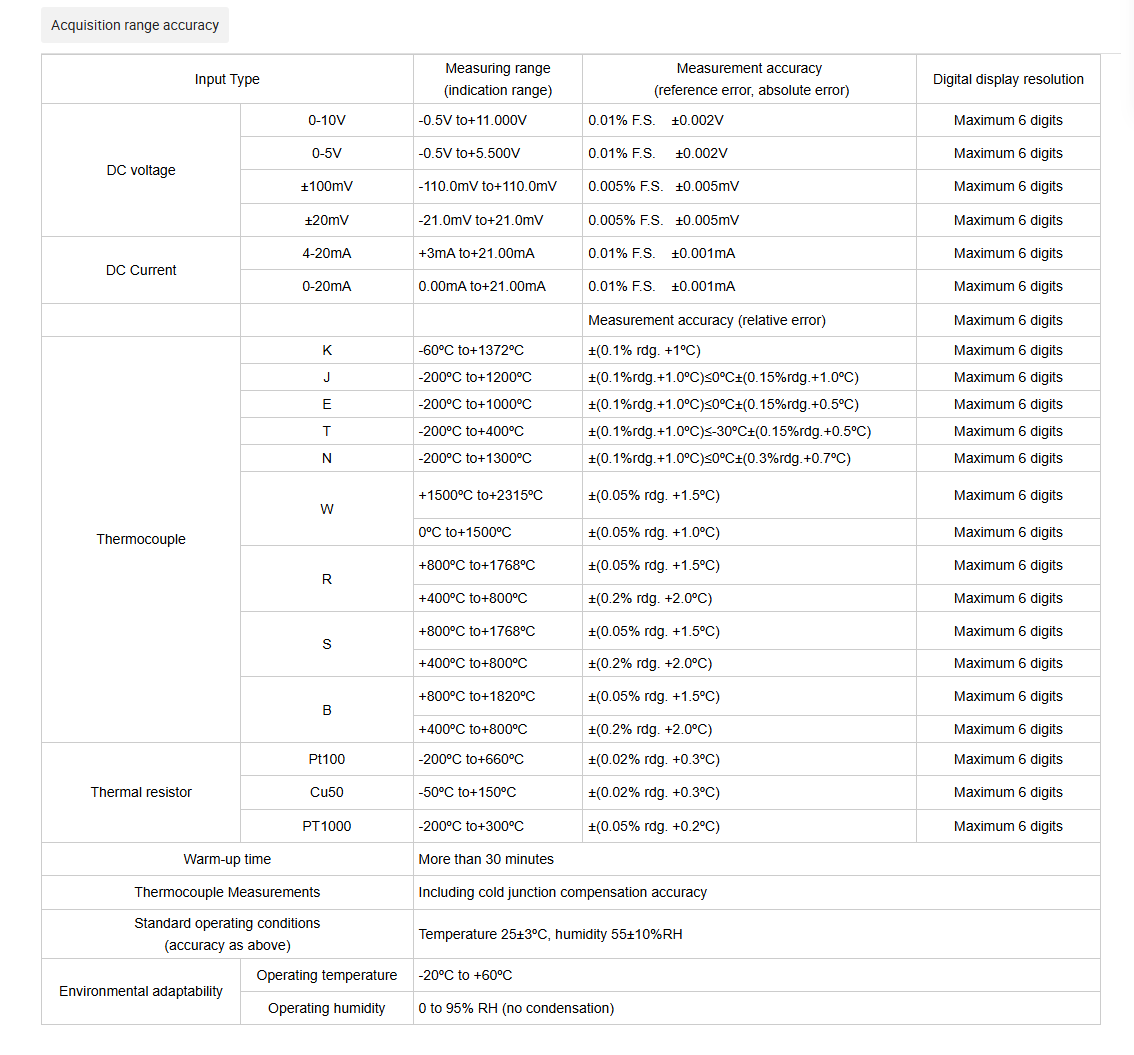

Universal High Precision Signal Acquisition:Supporting 1 to 12 configurable channels, TP740 accepts thermocouples, RTDs, 4 20 mA, voltage, frequency and pulse inputs. It delivers 0.05 percent FS accuracy with 420 V channel isolation against field interference. Freely adjust recording intervals. Eliminate extra signal converters for reliable process traceable data in pharmaceutical, chemical and thermal test applications.

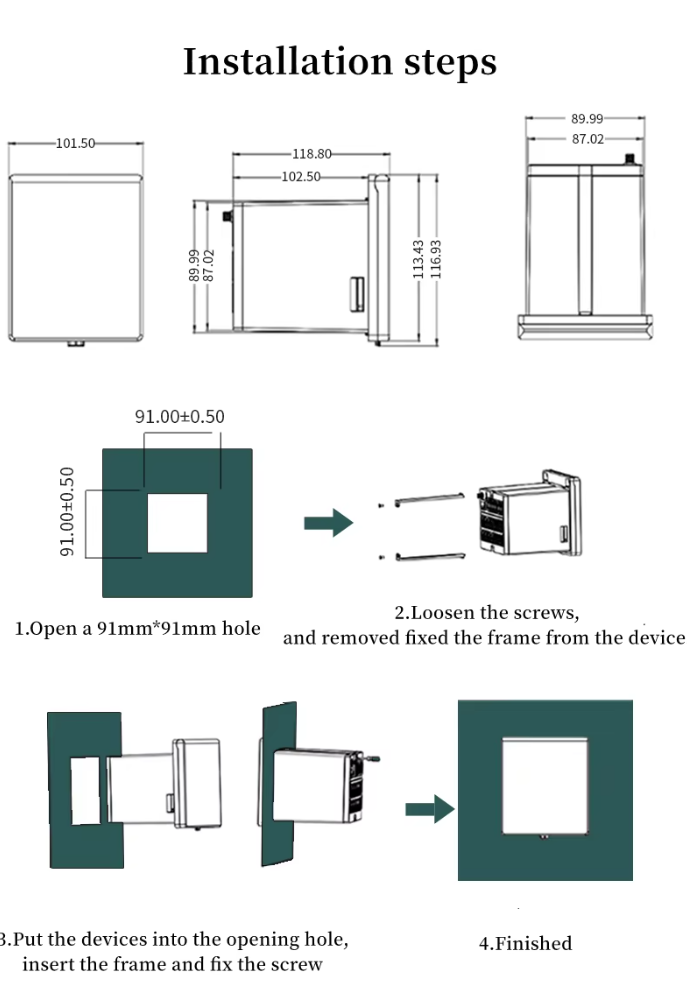

Robust 4 inch Touch HMI with Dust Proof Cover: Featuring a 4 inch capacitive touch screen rated for 50 million touches, this recorder shows values, real time curves, bar graphs and alarm logs. A flip up transparent cover shields against dust and moisture. Standard 96 * 96 mm panel mounting fits compact cabinets. Operators configure and query data easily without advanced training.


Flexible Wired and Wireless IoT Connectivity: Dual RS485 and Ethernet ports run Modbus RTU and TCP for direct PLC SCADA integration. Optional Wi Fi, 4G, LoRA or Thread modules enable remote data transmission. Monitor multiple devices simultaneously via PC browser or mobile client. Perfect for new factory builds and legacy site retrofits with reduced cabling costs.

4 Inch Touch Screen Paperless Recorder Multi Channel Data Acquisition Device for Temperature Pressure Voltage Current Monitoring

Product Specfication

4 Inch Touch Screen Paperless Recorder Multi Channel Data Acquisition Device for Temperature Pressure Voltage Current Monitoring
