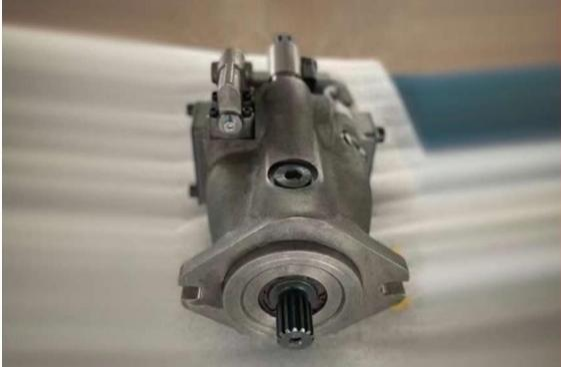

Hydraulic Piston Pump A10VO85DR

A10 VO85DR main pump

Technical requirement

Precautionsfor assembly

(1)During the assembly process,please be careful not to leave burrs on the assemblysurface and not allow entering dust;

(2)Dust proof treatment should be applied to the exposed holes after assembly;

(3)Apply rust inhibitor to the input shaft and flange;

(4)When spraying paint,the nameplate and installation surface need to be covered to avoid painting.

- Precautions foroperation

(1)When transporting hydraulic pumps,do not impact strongly on the transmission shaft of the pump body;

(2)Before operation,it is necessary toexhaust through the exhaust port to fill thecasing with clean hydraulic oil;

(3)When operating the hydraulic pump,be careful that the surface of the hydraulic pump assembly shouldnot be flowedhydraulic oil and other liquids;

(4)The cleanlinessof thehydraulic oilshould meet NAS level 9.

The A10VO85DR is a high-performance axial piston hydraulic motor with features such as high efficiency, low noise, and long lifespan. It adopts a swashplate design with variable displacement, allowing for adjustment according to the system's requirements to improve efficiency and reduce energy consumption. Additionally, the A10VO85DR has a high pressure capacity, with a maximum working pressure of up to 35MPa, making it suitable for various high-load working conditions.

In terms of application, the A10VO85DR is widely used in engineering machinery, ships, metallurgy, and mining industries. For example, in the field of engineering machinery, it can serve as a power source for excavators, loaders, bulldozers, etc.; in the shipbuilding industry, it can be used as a power source for ship-mounted cranes, mooring winches, etc.; in the metallurgy and mining industries, it can be used as a power source for crushers, conveyors, etc.
