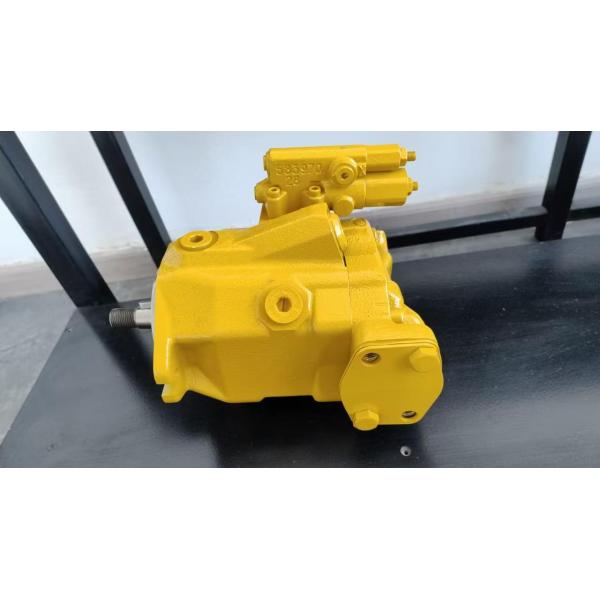

Caterpillar Pump HA10VS0/31 Series 254-5147966H Hydraulic Fan Pump
Caterpillar Pump HA10VS0/31 Series 254-5147966H Hydraulic Fan Pump
Caterpillar Pump HA10VS0/31 Series 254-5147966H Hydraulic Fan Pump
Caterpillar Pump HA10VS0/31 Series 254-5147966H Hydraulic Fan Pump
Specifications
Brand Name :
KERSTERN
Model Number :
HA10VS0/31
Certification :
SIO9001
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
5,000 units per month
Delivery Time :
7 work days
Packaging Details :
Wooden boxes and cartons
Price :
Negotiable
Theory :
Axial Piston Pump
Power :
Hydraulic
Standard or nonstandard :
Standard
Fuel :
Hydraulic
Application :
Maritime,Metering,Cryogenic,industrial,Agriculture/RV/marine/Yachts/boat/caravan/water system
Material :
cast iron
Color :
Blue,Black,black or as you need.,natural,blue/white/black/green
Description

HA10VS0/31 Series Axial Piston Pump
Size 18 to 140
Nominal pressure 280 bar
Max. pressure 350 bar
Open circuit
two shell drain ports
The drive shaft can withstand axial and radial loadslSO standard mounting flange, flange connection inaccordance with SAE metric

Through drive shaft , can be used in multi-circuit systems

Technical parameters (theoretical values,excluding efficiency and tolerances,approximate values)

Size NG 18 28 45 71 100
Displacement Vgmax cm³ 18 28 45 71 100 140
Max. speed at Vg max n_nom rpm 3300 3000 2600 2200 2000 1800
at Pabsaugment and Vg<Vgmax n_max rpm 3900 3600 3100 2600 2400 2100
Flow rate at n_nom and Vgmax qvmax l/min 59 64 117 150 200 252
at nᴱ = 1500rpm and Vgmax qvmax l/min 27 42 68 107 150 210
Power Δp = 280bar at n_nom and Vgmax p_max kW 27.7 39 55 73 93 118
at nᴱ = 1500rpm and Vgmax p_E max kW 12.6 20 32 50 70 98
Torque atVgmax and Δp = 280 bar T_max Nm 80 125 200 316 445 623
Δp = 100 bar T Nm 30 45 72 113 159 223
Rotational stiffness on the drive shaft S c Nm/rad 11087 22317 37500 71884 121142 169437
R c Nm/rad 14850 26360 41025 76545 − −
P c Nm/rad 13158 25656 41232 80627 132335 188406
The moment of inertia on the drive shaft Jtw kgm² 0.00093 0.0017 0.0033 0.0083 0.0167 0.0242
Case volume V l 0.4 0.7 1 1.6 2.2 3
Weight Without Thru-drive shaft (approx.) m kg 12.9 18 23.5 35.2 49.5 65.4
Weight With Thru-drive shaft (approx.) m kg 14 19.3 25.1 38 55.1 74.4

Caterpillar Pump HA10VS0/31 Series 254-5147966H Hydraulic Fan Pump

The HA10VS0/31 series axial piston pump adopts a swash plate structure, which realizes stepless volume adjustment by changing the inclination angle of the swash plate. When the swash plate is inclined, the stroke of the piston in the cylinder increases, thereby increasing the pump's displacement; conversely, reducing the inclination angle of the swash plate reduces the pump's displacement. This structure allows the pump to flexibly adjust the flow according to actual needs, improving the operating efficiency of the system.
