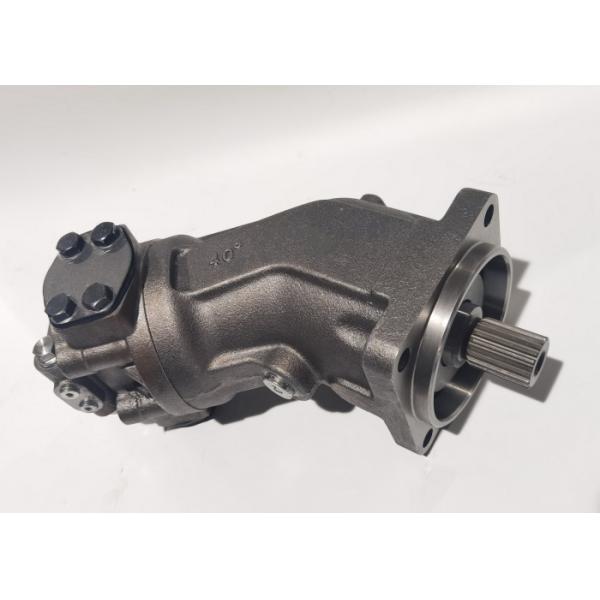

Excavators Closed Loop Hydraulic Pump 3000rpm Swash Plate Piston Pump
Excavators Closed Loop Hydraulic Pump 3000rpm Swash Plate Piston Pump
Excavators Closed Loop Hydraulic Pump 3000rpm Swash Plate Piston Pump
Excavators Closed Loop Hydraulic Pump 3000rpm Swash Plate Piston Pump
Excavators Closed Loop Hydraulic Pump 3000rpm Swash Plate Piston Pump
Excavators Closed Loop Hydraulic Pump 3000rpm Swash Plate Piston Pump
Specifications
Brand Name :
KERSTERN
Model Number :
HA2FO Series Axial Piston Pump Size 5 to 1000
Certification :
SIO9001
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
5,000 units per month
Delivery Time :
7 work days
Packaging Details :
Wooden boxes and cartons
Shaft Type :
Splined
Mounting Type :
Flange
Maximum Speed :
3000 RPM
Type :
Hydraulic Pump
Loop Type :
Closed Loop
Description

HA2FO Series Axial Piston Pump
Size 5 to 1000
Nominal pressure 400 bar (size 10..200)

Max.pressure 450 bar(size 10..200)
Open circuit
High power density, high total efficiency

One-piece tapered piston with sealed piston ring

Can be used for mobile machinery and fixed machinery

Size NG 5 10 12 16 23 28 32 45 56 63 80
Geometric displacement (Per revolution) Vg cm3 4.93 10.3 12 16 22.9 28.1 32 45.6 56.1 63 80.4
Max. speed nnom rpm 5600 3150 3150 3150 2500 2500 2500 2240 2000 2000 1800
nmax rpm 8000 6000 6000 6000 4750 4750 4750 4250 3750 3750 3350
nnom Flow rate qv l/min 27.6 32 38 50 57 70 80 102 112 126 145
power Δp = 350 bar P kW 14.5 19 22 29 33 41 47 60 65 74 84
Δp = 400 bar P kW ─ 22 25 34 38 47 53 68 75 84 96
Torque Vgand Δp = 350 bar T Nm 24.7 57 67 89 128 157 178 254 313 351 448
Δp = 400 bar T Nm ─ 66 76 102 146 179 204 290 357 401 512
Rotational stiffness c kNm/rad 0.63 0.92 1.25 1.59 2.56 2.93 3.12 4.18 5.94 6.25 8.73
The moment of inertia of the rotor group JGR kgm2 0.00006 0.0004 0.0004 0.0004 0.0012 0.0012 0.0012 0.0024 0.0042 0.0042 0.0072
Max. angular acceleration α rad/s2 5000 5000 5000 5000 6500 6500 6500 14600 7500 7500 6000
Case volume V L
0.17 0.17 0.17 0.2 0.2 0.2 0.33 0.45 0.45 0.55
Weight(Approximate value) m kg 2.5 6 6 6 9.5 9.5 9.5 13.5 18 18 23

Excavators Closed Loop Hydraulic Pump 3000rpm Swash Plate Piston Pump

The HA2FO series is a swash plate-type axial piston variable displacement pump with pressure compensation:

  1. Swash Plate Adjustment:
    • The swash plate angle determines piston stroke length, regulating pump displacement.
    • Rising system pressure tilts the swash plate toward a smaller angle (reducing flow); falling pressure increases the angle (raising flow).
  2. Piston Movement:
    • As the cylinder block rotates, pistons reciprocate under the swash plate, drawing fluid from the inlet and discharging it at high pressure via the outlet.
  3. Closed-Loop Pressure Control:
    • An internal pressure compensator senses outlet pressure and adjusts the swash plate angle to maintain a preset pressure (e.g., max. working pressure), enabling constant-pressure output.
  4. Energy Efficiency:
    • Automatically reduces displacement during low-flow demand, minimizing energy consumption for intermittent loads.
