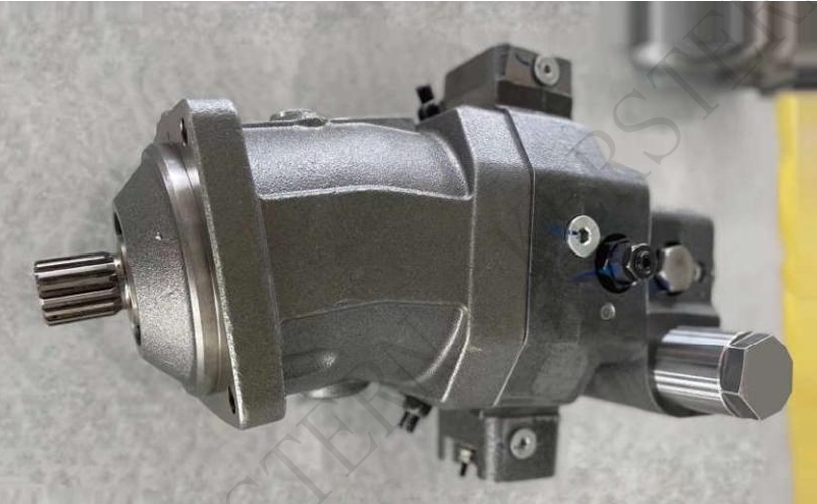

400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement
Specifications
Brand Name :
KERSTERN
Model Number :
A6VM80
Certification :
ISO9001
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
5,000 units per month
Delivery Time :
7 work days
Packaging Details :
Wooden boxes and cartons
Price :
Negotiable
Application :
Crawler Excavator,Excavator Engine,Cat 320B,For excavator,Kebelco SK-8 excavator
Part name :
Excavator hydraulic pump,hydraulic gear pump,Hydraulic Main Pump,hydraulic pump,k3v112 /140 /180 dt / dtp
Type :
Hydraulic,hydraulic main pump,Hydraulic Spare Parts,Kubota KX121-3 excavator hydraulic pump,excavator spare parts
Material :
Steel,Casting Iron,Metal,Alluminum
Condition :
100%new,New,durable
Packing :
genuine packing,Standar Packing,wooden packing,Wooden Case
Package :
wooden case,Hydstar or Customized,Wood case or Pallet,Export Wooden Box,wooden pallet
Color :
Gray
Stock :
available,Yes,In stock
Power :
Hydraulic
Description

Hydraulic Pump for Excavators A6VM80 series

Technical requirement

-Inject 46#hydraulic oil and confirm with the oillevel gaugeafter installingthe motor;

-Except for the parts marked with dashed lines,the remaining parts should be painted;

-The testingprogram of assembly products:

1)Sealing test:conduct a gas tightness test after sealing,and the test time should exceed 3 minutes at 0.2Mpaatmospheric pressure;

2)Operation:The overall deviation of the small gear should be within 0.5mm;

-Spray Motor paint

1)Condition:one layer

2)Thickness:over 30um

3)Color:Gray

4)Material:polyurethane resin

-Please review the test specificatons

Model number

A6VM80HA1/63w-VAB380A-SK

Maximum output volume

80ml/r

Set minimum output volume

30.2ml/r(adjustable)

Rotationdirection

Tw-way

Rotary speed

Rated speed:3900rpm

Maximum speed:6150rpm

System allowable pressure

Rated pressure:400bar

Maximum pressure:450bar

Housing pressure

Rated:3bar Peak value:5bar

Control mode

HA1 and automatic control related to high voltage

Mountingflange

SAE flange,seam allowance:140mm,Installation holes 4-13.5,Installation hole pitch circle 180mm

Output shaft

W35×2×16×9g DIN5480

Main oil port

DN25;M12×1.75 ;SAEJ5181,oilports A and B are

located behind the rear

Housing oil drain port

G1/2

Testing port of system pressure

M18×1.5

Oil port of synchronous control

M14×1.5

Attachment valve group

BVD20F27S Balancevalve

400-450 Bar Excavator Hydraulic Pumps A6VM80 Series With 80 Cc/Rev Displacement

The A6VM80 series is an axial piston variable motor designed for hydrostatic transmission in open and closed circuits. With displacement ranging from 28 to 1000 ml/r, it operates at nominal pressures up to 450 bar (for sizes 28-200) and 400 bar (for sizes 250-1000). Key features include:

Infinite displacement adjustment (0 to Vgmax) via swashplate design

Dual control options: HD (hydraulic proportional control) for precise flow regulation and HZ (two-point hydraulic control) for fixed displacement switching

Applications: Primary pumps for wheel loaders, crawler crane travel drives, and other heavy machinery
