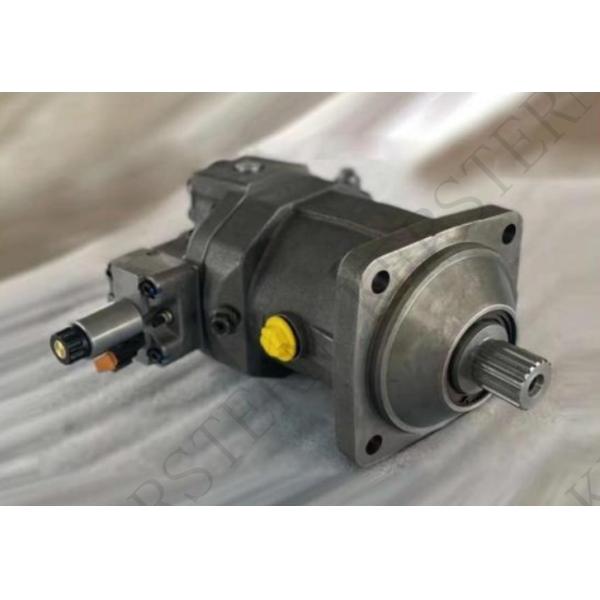

Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel
Specifications
Brand Name :
KERSTERN
Model Number :
A6VM107EP1
Certification :
SIO9001
Place of Origin :
China
MOQ :
5
Payment Terms :
T/T
Supply Ability :
5,000 units per month
Delivery Time :
7 work days
Packaging Details :
Wooden boxes and cartons
Price :
Negotiable
Fuel :
Diesel,Other,oil,Electric,No fuel
Application :
Other,industory,Cryogenic,Hydaulic pump,for IT24F IT28F IT28G
Power :
Hydraulic,Electric
Pressure :
High Pressure,Low Pressure
Structure :
Piston Pump,Single-stage Pump,vane pump,Other,Double-stage Pump
Standard or nonstandard :
Standard,Standard or nonstandard
Warranty :
1 Year
Color :
blue,Customer's Request,Black,Customer Specifications,green or as request
Material :
Cast Iron,aluminum alloy
Product name :
Hydraulic Gear Pump,denison pump,150MPa manual hydraulic axial piston pump,Rexroth Type A7V Hydraulic Piston Pump,Air Vacuum Pump
Feature :
High Efficiency,Stable performance and long life
Name :
Low price piston high-pressure LNG pump,hydraulic axial piston pump,High pressure vane pump cartridge kit
Package :
plywood case,Neutral package
Description

Technical requirement

-Before starting the operation of the motor, please ensure that the motor housing is flled with hydraulic oil;

-Do nothave astrong impact onthe output shaft of the motor when transporting hydraulic motors;

-To ensure the reliability of motor function, hydraulic oil musthave a minimum cleanliness level of 20/18/15 according to ISO 4406.At very high hydraulic oil temperatures(90°C to a maximum of 115°C),it should have a minimum cleanliness level of 19/17/14 according to ISO 4406.

-The testing program of assemblyproducts:

1)Sealingtest:conducta gas tightness test aftersealing,and the test timeshouldexceed3 minutes at 0.4Mpa atmospheric pressure;

2)The coaxially between the main shaft and the coupling sleeve should not exceed φ0.1.

Model number

A6VM107EP1/63W-VAB017-P-K

Maximum output volume

107mlr

Set minimum output volume

30ml/r(adjustable)

Rotation direction

Two-way

Rated speed

3550rpm

Maximum speed

5600rpm

System allowable pressure

Rated pressure:400bar

Maximum pressure:450bar

Housing pressure

Rated:3bar Peak value:5bar

Control mode

Output volume control of electrical ratio,12V;DEUTSCH DT04-2P-EP04,2 pin

Mounting flange

SAE flange,seam allowance:159.96-160mm,Installation hole 4-17.5,installation hole indexing circle 200mm

Output shaft

W40×2×18×9g DIN5480,with speed magnetic ring

Main oil port

DN25 ;M12×1.75;20;SAE J5181,oil portsA and B are

located behind the rear

Housing oil drain port

M33×2

Testing port of system pressure

M18×1.5

Oil port for flushing

G1/2

Oil port of synchronous control

M14×1.5

Flushing flow rate

10L/min

Caterpillar D5 Axial Piston Pump A6VM107EP1 Crawler Excavator Travel

The A6VM107EP1 hydraulic motor is widely used in various engineering machinery equipment, such as excavators, loaders, bulldozers, etc. These devices require high torque and low-speed operation to complete various complex tasks. In addition, the hydraulic motor is also suitable for use in ships, port machinery, metallurgical equipment and other fields, providing strong power output for various types of equipment.
