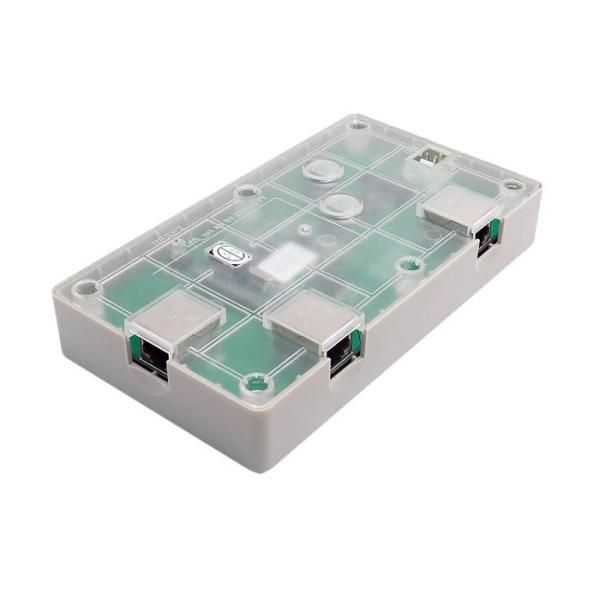

RoHS Electronic PCB Board Software Central Control Module Locking System
RoHS Electronic PCB Board Software Central Control Module Locking System
RoHS Electronic PCB Board Software Central Control Module Locking System
RoHS Electronic PCB Board Software Central Control Module Locking System
Specifications
Brand Name :
KERONG
Model Number :
KR-CU
Certification :
CE;RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
Agreeable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability :
50,000 per month
Delivery Time :
5-15 days working time
Packaging Details :
The material of Package: K=K Reinforcement Carton;Carton:26PCS/CTN
Product name :
RoHS Electronic Locking System
Communication :
TCP/IP LANs and WANs control
Weight :
182g
Size :
218mm *106mm
Capacity :
20000 cards and 100000 offline memory
Lifetime :
8 to 10 years
Sample :
Accepted
Description

RoHS Electronic PCB Board Software Central Control Module Locking System

Product parameters

Model KR- CU
Brand KERONG
Definition Electronic rotary latch controller
Function Receive commands to control lock and feedback status
Dimension L200*W140*H15mm
Material PCB (Printed Circuit Board)
The dimension of protecting the shell L210*W150*H35mm
Microprocessor module STM8S103K3T6 QFP32(P0.8mmBS7*7mm)
Connector model RJ45, 8P8C
Working voltage 12V~24V
Stand-by power consumption 70mA(12V),40mA(24V)
Dynamic power consumption 200mA~3000mA
Reaction time Less than 1s
Working temperature -25℃ ~ +65℃
Working humidity 5% ~ 95%RH
Certification CE; ISO9001; RoHS
OEM Accepted

Product Features

1, For network communication. Transfer TCP/IP commands (from PC) to 485 formats (to CU).

2, Open development, completely free to design software as you wish.

3, Supports two AC modes: RS485 and TCP/IP.

4, Can co-work with a computer, pad, Raspberry Pi.

5, Suitable for IOS, Windows, and Linux.

6, High quality modules, stable working.

7, Working temperature: -25℃~65℃.

8, With protective case against dust.

Product Details

RoHS Electronic PCB Board Software Central Control Module Locking System

1, connecting locks, supply power to locks, and detect lock’s condition (open/close);
2, connecting IR and LED light; IR to check if the locker empty or not; LED light to light the locker when the lock is open;
3, connecting IR feedback light(bi-color); light can be extended to every single locker. The locker is empty, the light turns green; the locker is occupied, the light turns red.
4, connecting lock feedback light; light can be extended to every single locker, to show whether the lock is closed or not. Lock
open, the light turns on; lock close, the light turns off.

Product Applications

Our products Locker Control Board are applied in parcel lockers, vending machine, cabinets, gym cabinets, storage cabinets, etc.

RoHS Electronic PCB Board Software Central Control Module Locking System

Hot Tag: RoHS Locking System, Software Central Control Board, Locker Control Board
